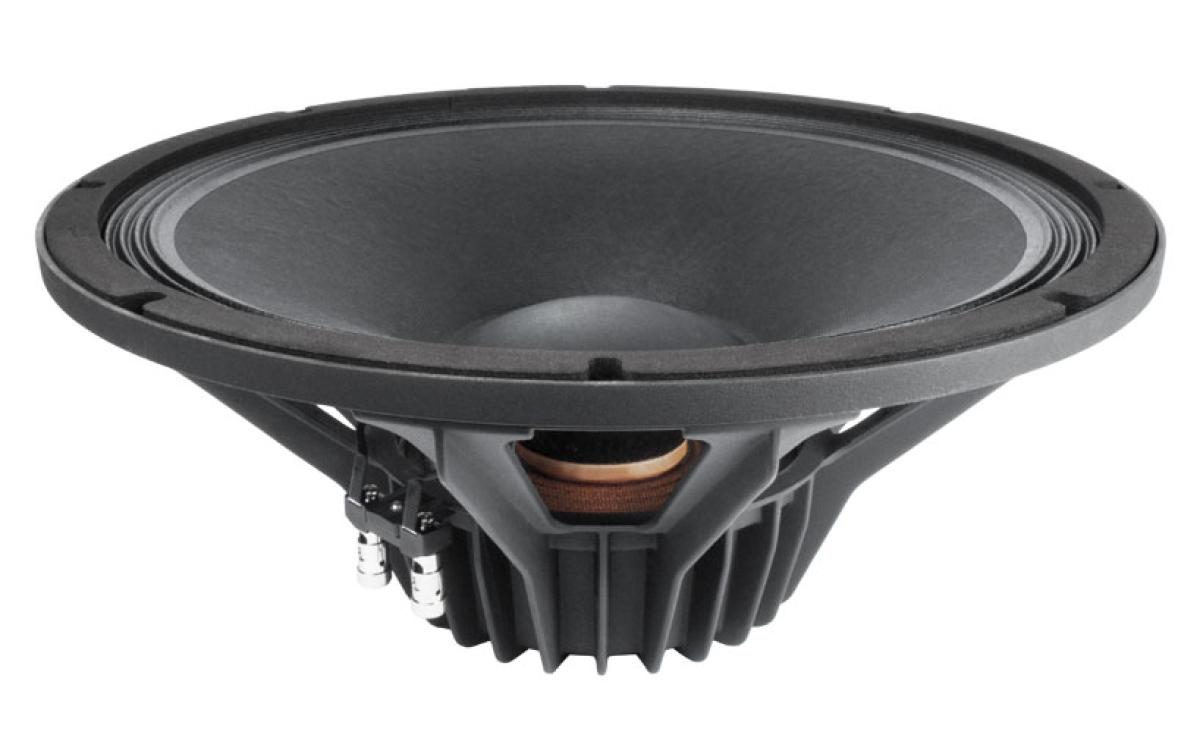

Faital Pro Professional Serie - 15" Lautsprecher 300 W 8 Ohm, 15PR300

Faital Pro Professional Serie - 15" Lautsprecher 300 W, 8 Ohm
15PR300, geeignat als Bass-/Mitteltöner in 2Wege-Systemen

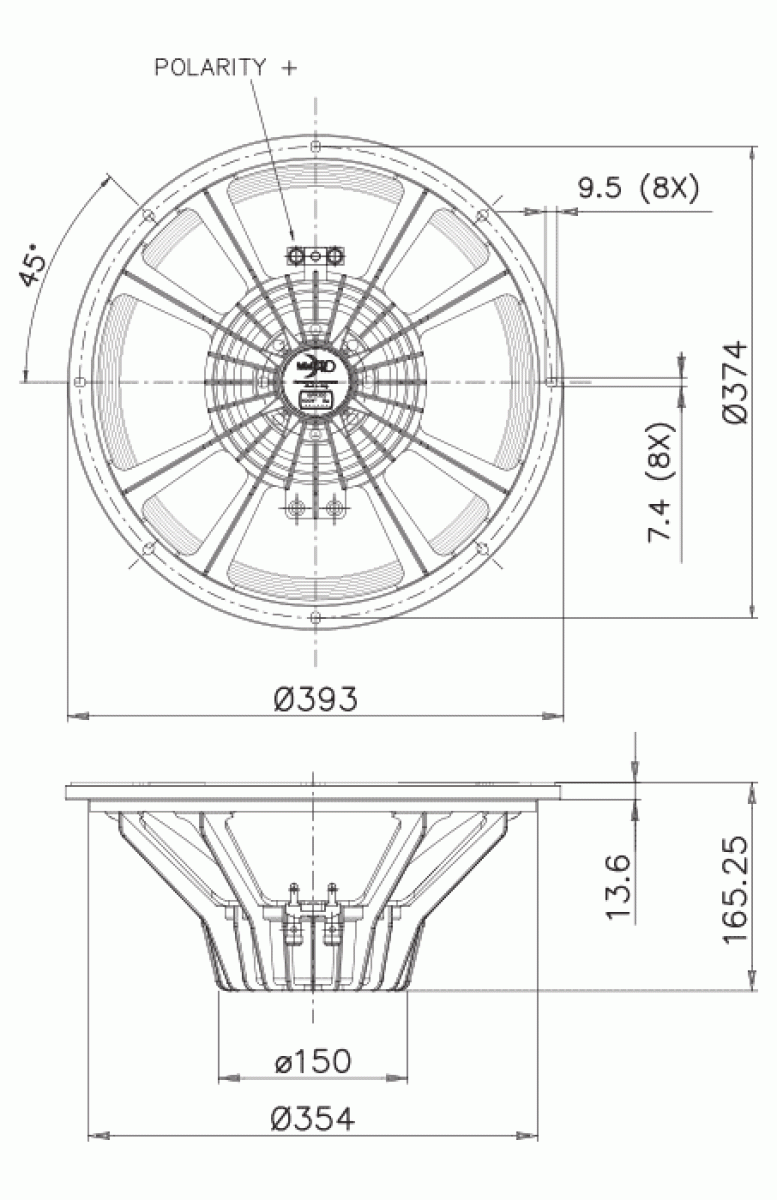

Nominal Specifications

• Nominal Diameter 15", 380 mm
• Overall Diameter 15.47", 393 mm
• Bolt Circle Diameter 14.72", 374 mm
• Baffle Cutout Diameter 14", 354 mm
• Depth 165.25 mm
• Flange and Gasket Thickness 13.6 mm

Electrical Specifications

• Minimum Impedance 5.9 Ohm
• Nominal Impedance 8 Ohm
• Nominal Power Handling*** 300 W
• Maximum Power Handling**** 800 W
• Sensitivity (1W/1m) 97 dB

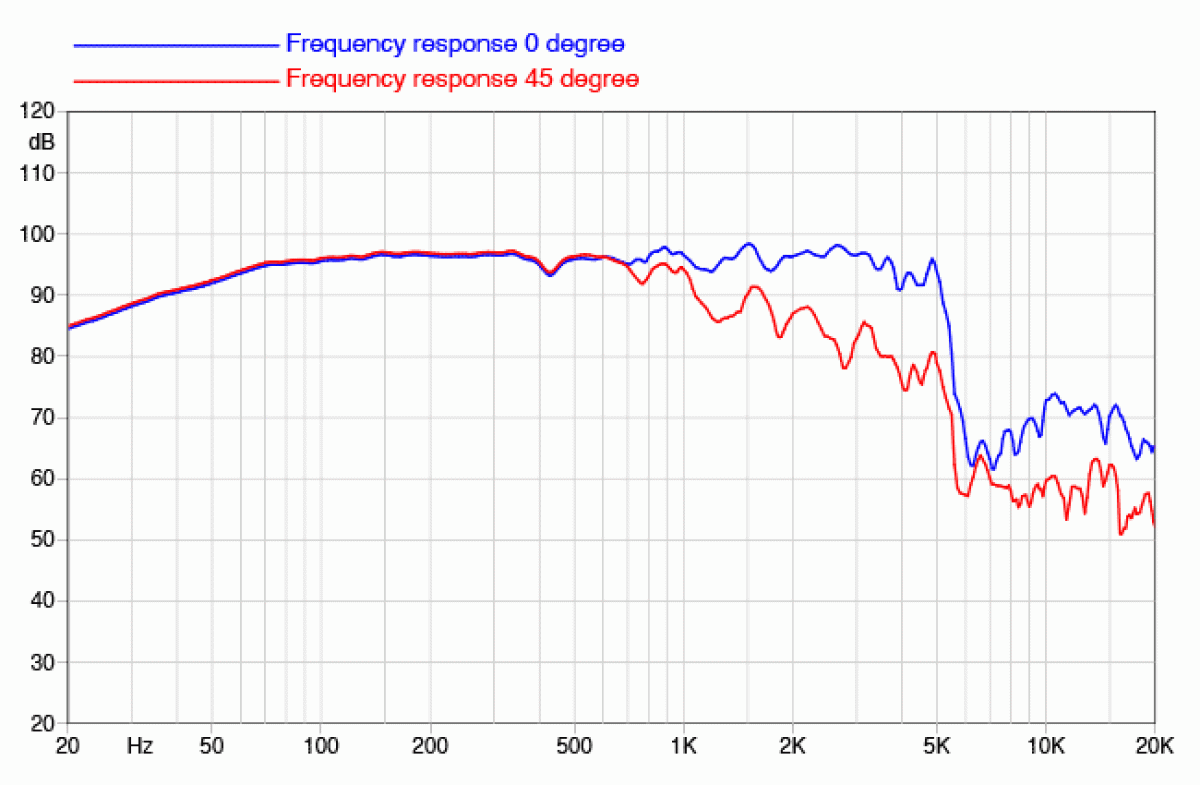

• Frequency Range 35 - 4000 Hz
• Voice Coil Diameter 2.56"
• Winding Material: Kupfer
• Former Material: Glass Fiber
• Winding Depth 13.2 mm

THIELE & SMALL Parameters

• Resonant Frequency (fs) 35 Hz
• DC Resistance (Re) 5.4 Ohm
• BL Product (BL) 15.6 N/A
• Diaphragm Mass inc. Airload (Mms) 99.2 grams
• Rms 1.6 Kg/s
• Electromagnetic Q (Qes) 0.5
• Mechanical Q (Qms) 14
• Total Q (Qts) 0.48
• Compliance Equivalent Volume (Vas) 220.1 dm³
• Surface Area of Cone (Sd) 870 cm²
• Maximum Linear Excursion (Xmax)* 5.23 mm
• Coil Inductance (Le) 0.89 mH
• Diaphragm mass (Mmd) 70.2 g

Notes

* *Xmax = [(winding depth - magnetic gap depth) / 2] + (magnetic gap depth / 3)
* **Maximum excursion before permanent damage
* ***2 Hours Test According to AES 2-1984 Rev. 2003
* ****Maximum power is defined as 3dB greater than nominal power
