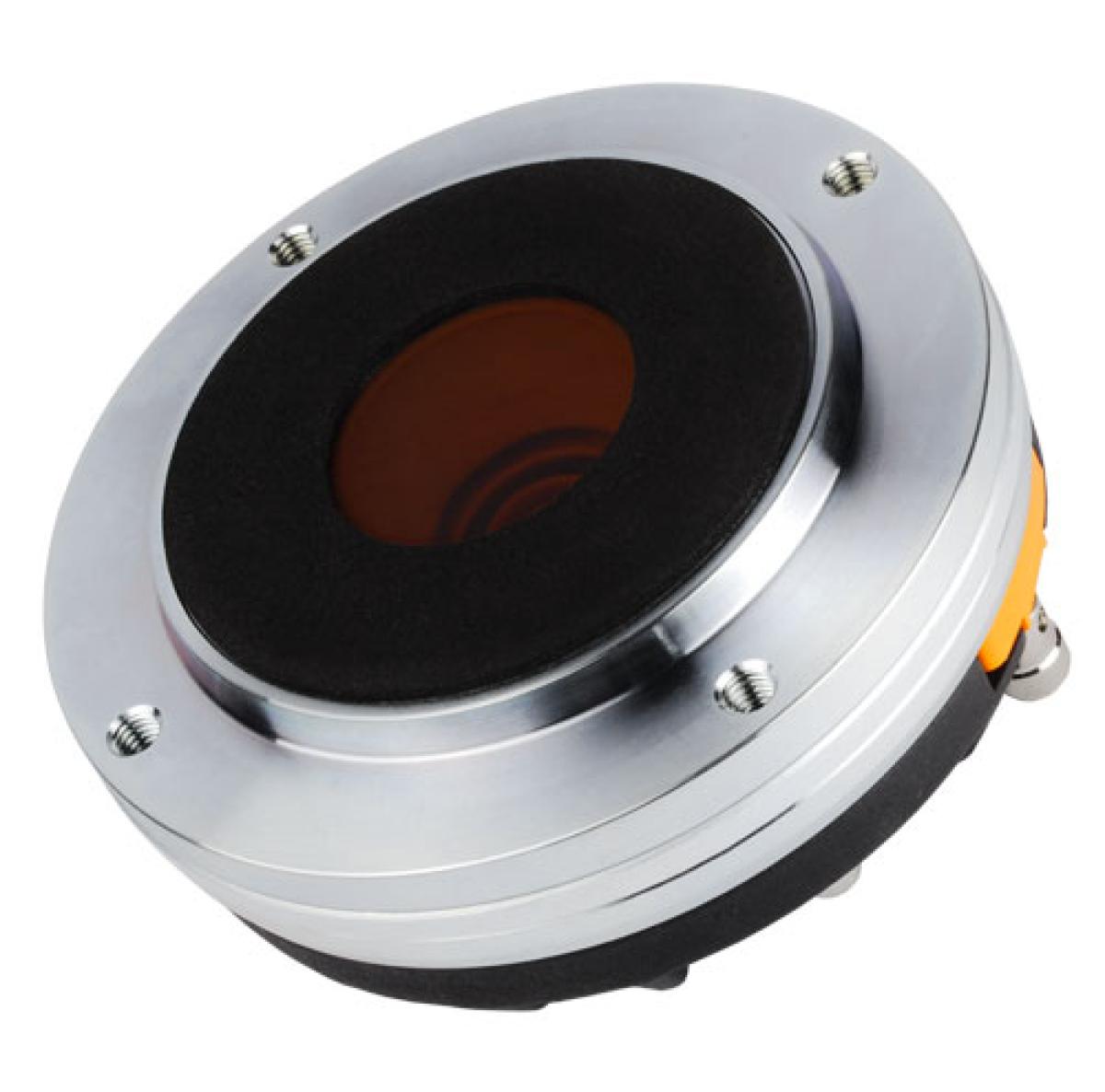

Faital Pro HF142 - 1,4" Hochtontreiber, 80 W, 8 Ohm

Faital Pro HF142 - 1,4" Hochtontreiber, 80 W, 8 Ohm

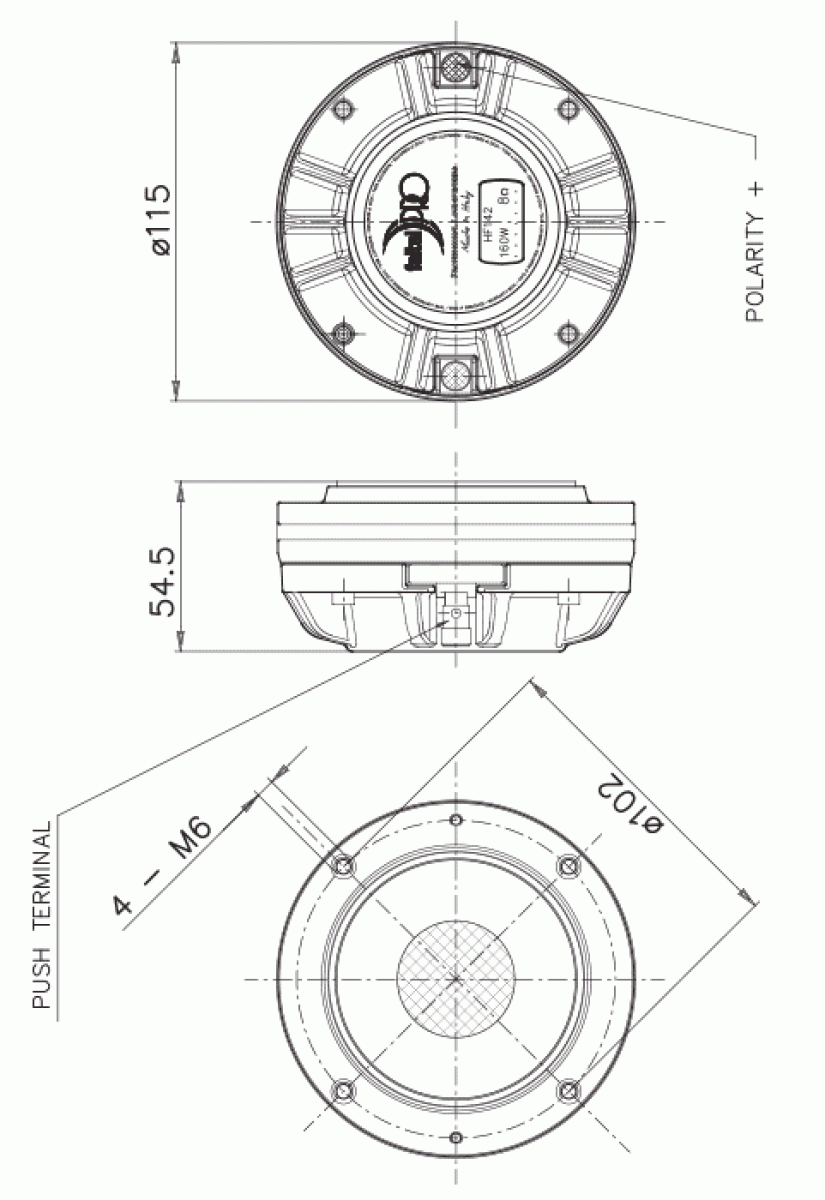

Nominal Specifications

• Throat Diameter 1.40", 35.6 mm
• Overall Diameter 4.53", 115 mm
• Depth 2.15", 54.5 mm
• 90° Mounting Holes Diameter (4xM6) 4.02", 102 mm

Electrical Specifications

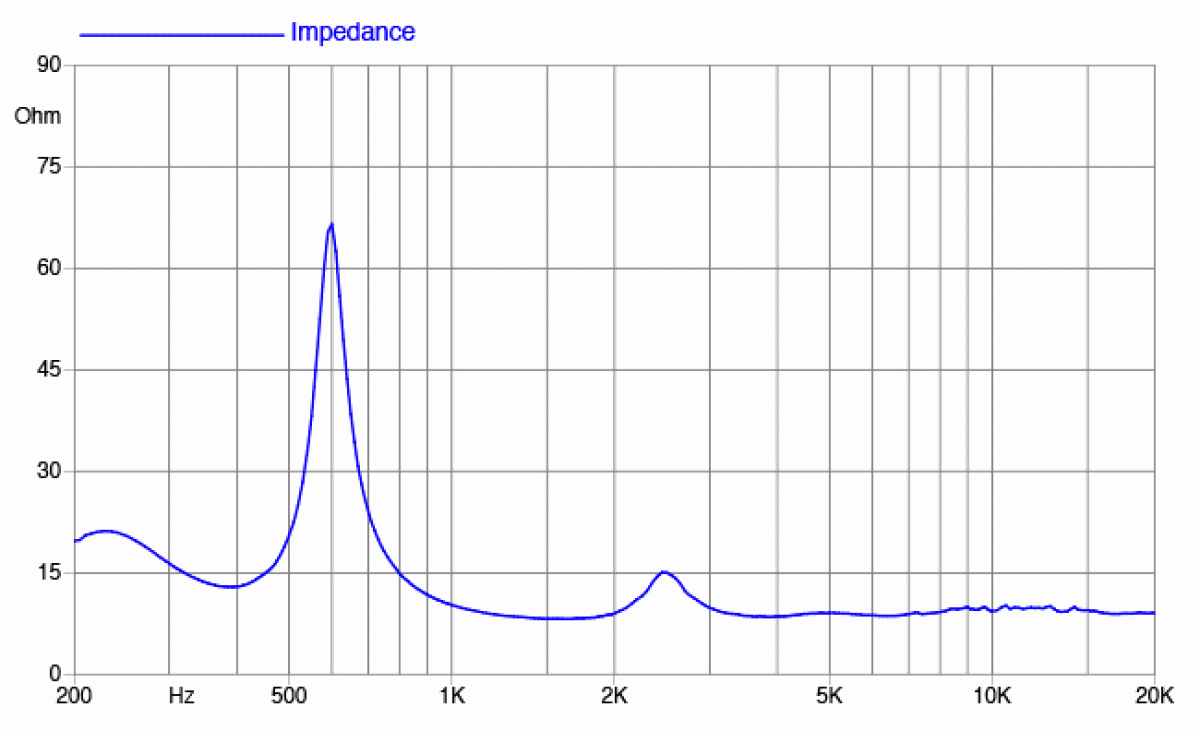

• Nominal Impedance: 8 Ohm
• Minimum Impedance: 8.4 Ohm
• Re: 6.7 Ohm
• Minimum Crossover Frequency*: 0.9 kHz

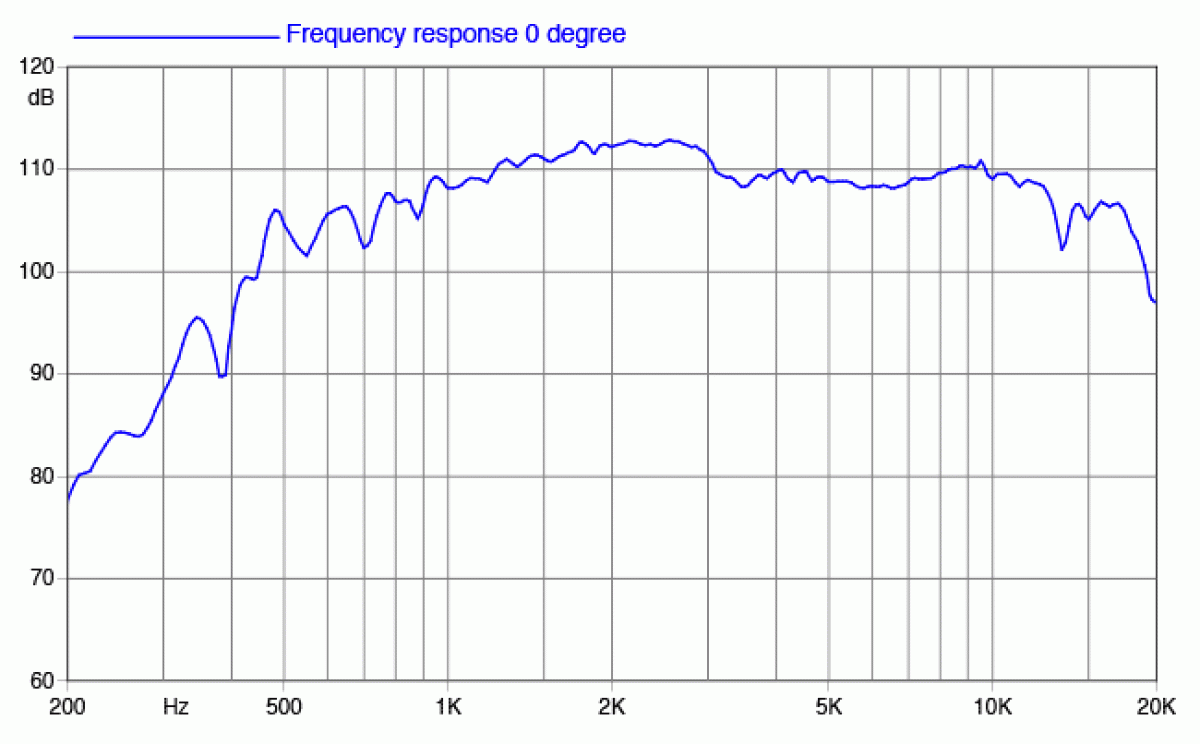

• Sensitivity (1W/1m)**: 110 dB
• Frequency Range: 0.7 - 18 kHz
• Nominal Power Handling***: 80 W
• Maximum Power Handling****: 160 W
• Diaphragm Material: Ketone Polymer
• Voice Coil Diameter: 2.56", 65 mm
• Winding Depth: 0.08", 2.1 mm
• Former Material: Kapton
• Magnetic Gap Depth: 0.17", 4.2 mm
• Flux Density: 1.8 T
• Winding Material: Aluminium

Notes

* *12 dB/oct or higher slope high-pass filter
* **Averaged within the frequency range
* ***Test made for 2 hours with Pink Noise signal (6 dB Crest Factor)
from minimum crossover frequency. Power calculated on rated
minimum impedance. Driver mounted on aluminium horn.
* ****Maximum power is defined as 3dB greater than nominal power
