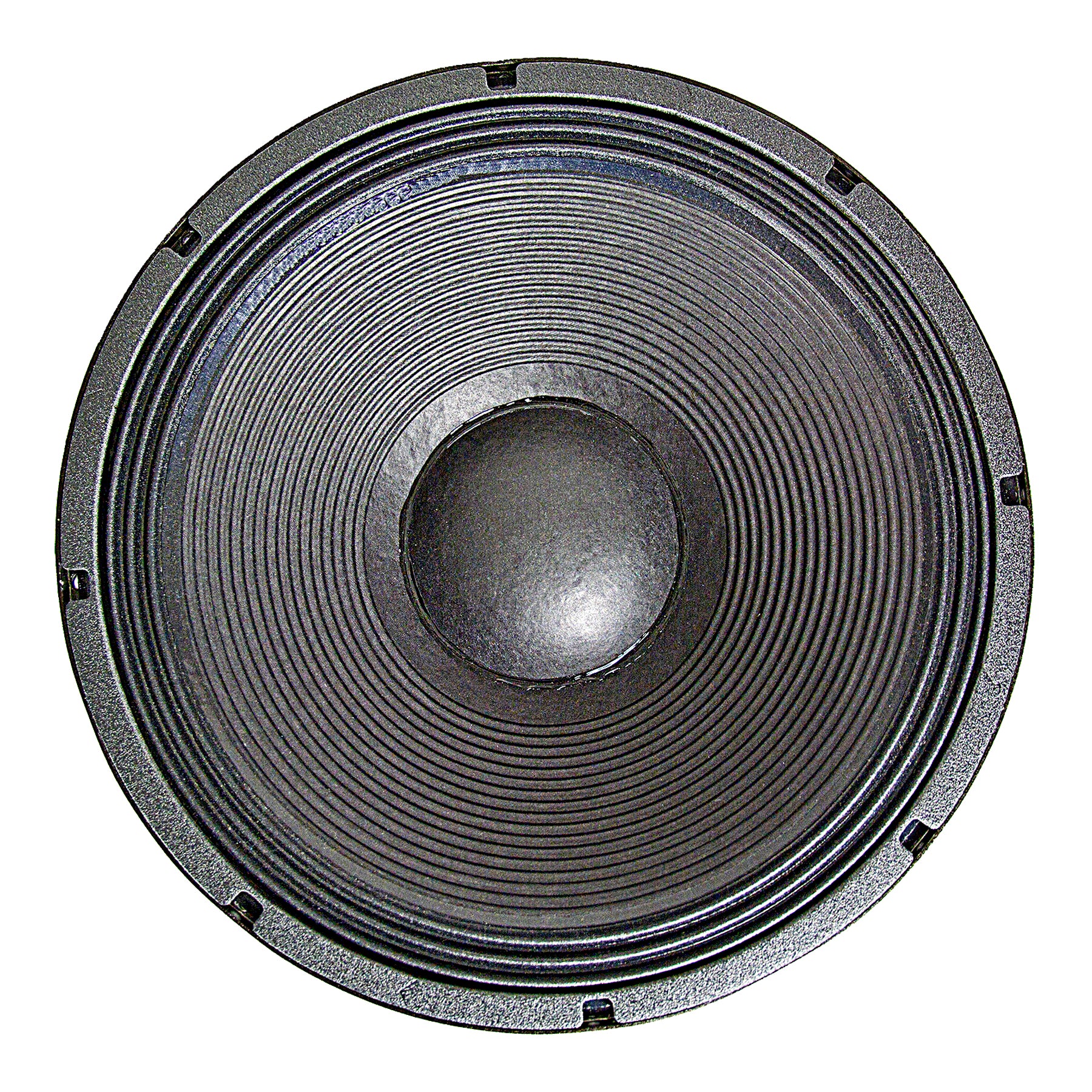

Eminence NSW4018 - 18" Subwoofer, 8 Ohm

Eminence NSW4018 - 18" Subwoofer, 8 Ohm

Nominal impedance: 8 ohm
Dimensional category: 18 inch
Frequency coverage type: Sub, Low
Manufacturer sensitivity: 96.6 dB
Calculated sensitivity: 94.79 dB
Nominal power handling: 1600 W
Max power handling: 3200 W
Bandwidth: 27÷1300 Hz

Sd: 1217 cm²
Mms: 237 gr
Cms: 80 µm/N
Le: 1.54 mH
Re: 5.86 ohm
BL: 28.24 T.m

Fs: 36 Hz
Qes: 0.39
Qms: 8.46
Qts: 0.38
Vas: 164.49 L

Xmax: ±15.21 mm
Xvar, Xmech, Xlim: ±31.5 mm
EBP: 92 Hz
Fs / Qts: 95 Hz
Vas * Qts²: 23.76 L
Weight: ~9.5 kg
Voice coil diameter: 4 inch
Gap height: 12.7 mm
Outside diameter: 460.5 mm
Baffle cutout diameter: 421.6 mm
Depth: 226.1 mm
