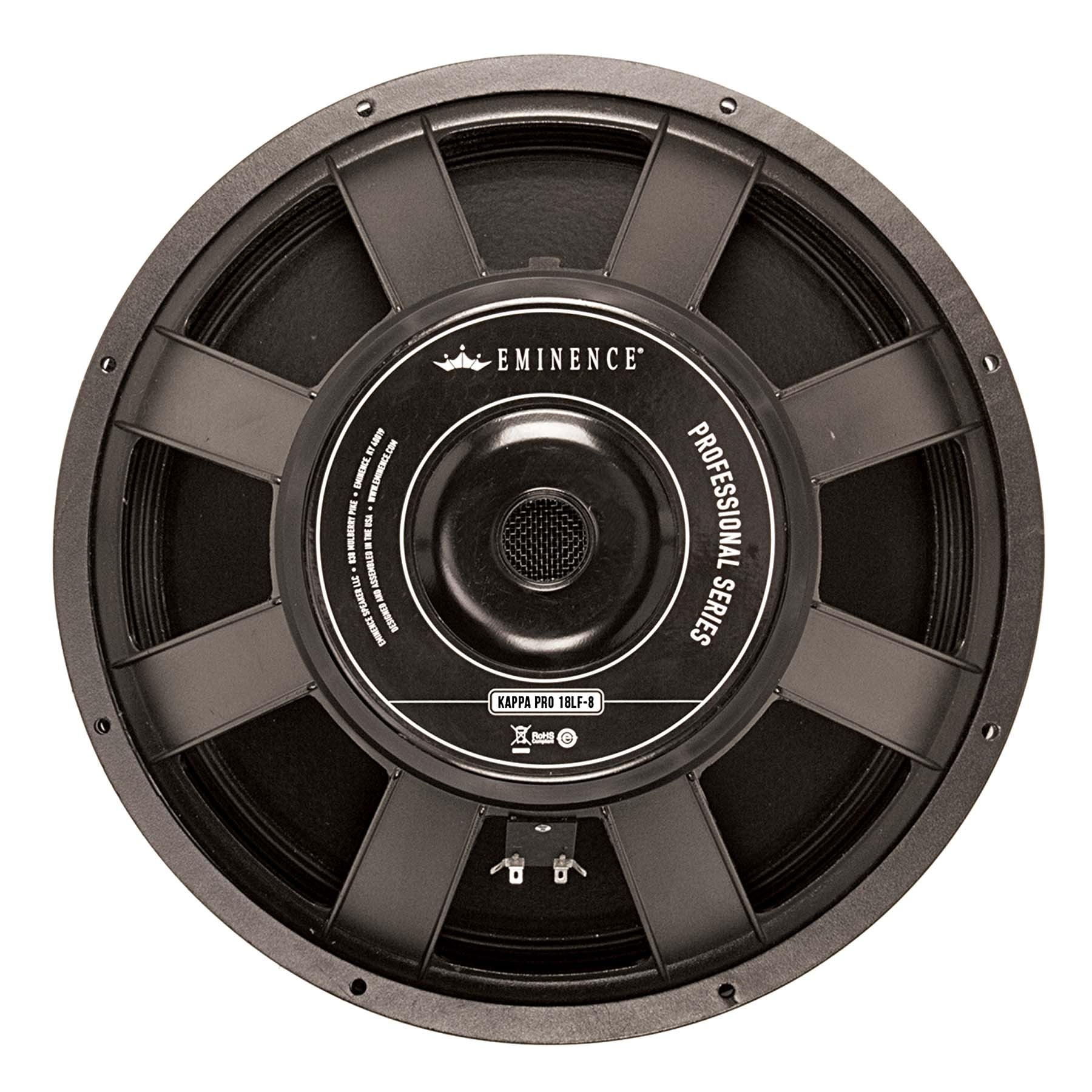

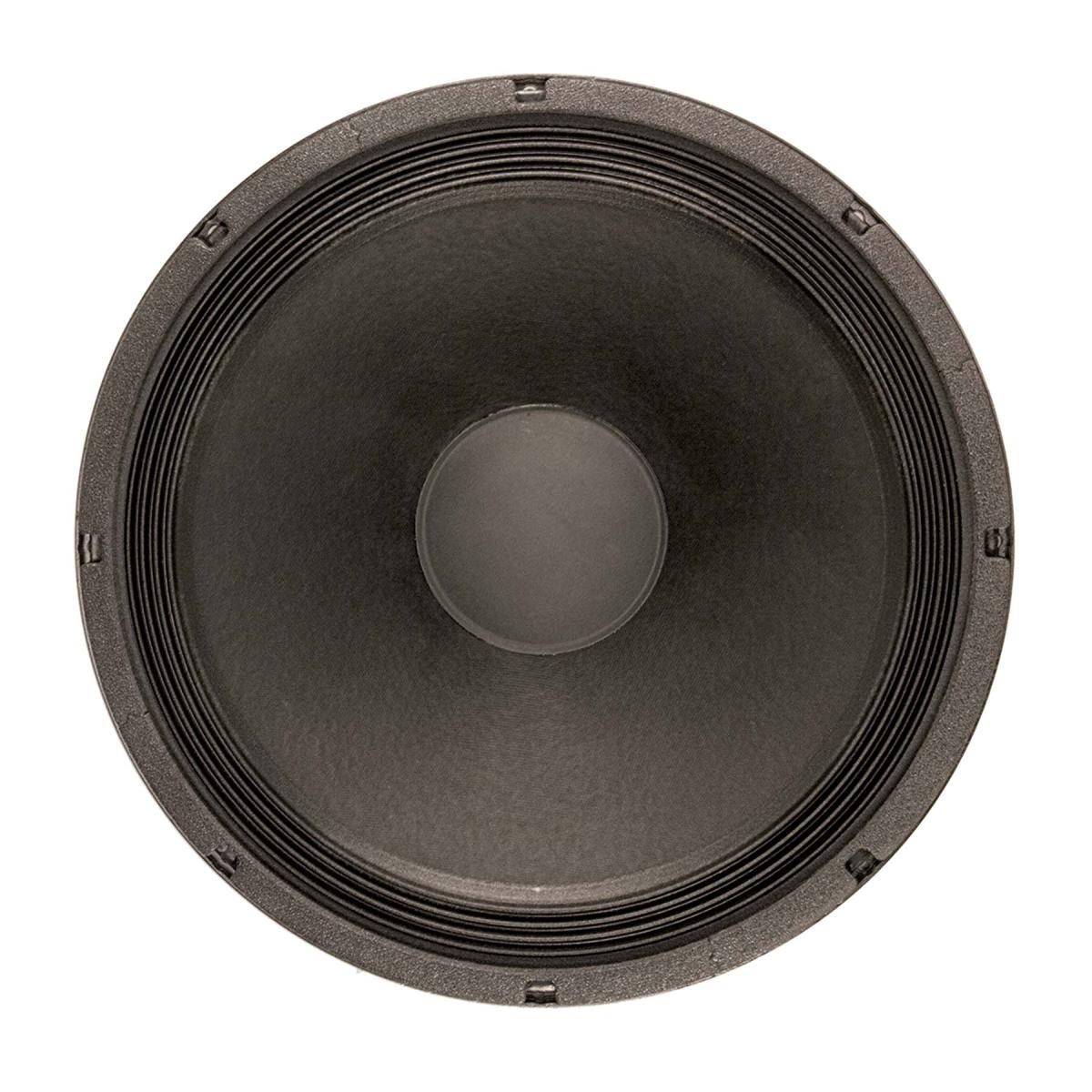

Eminence KAPPA PRO 18 LF2, 8 ohm

Eminence KAPPA PRO 18 LF-2, 8 ohm
18" Subwoofer

• Nominal impedance: 8 ohm
• Dimensional category: 18 inch
• Frequency coverage type: Sub, Low
• Manufacturer sensitivity: 98 dB
• Calculated sensitivity: 97.61 dB
• Nominal power handling: 800 W
• Max power handling: 1600 W
• Bandwidth: 38÷700 Hz

Thiele/Small Parameter:

• Sd: 1159 cm²
• Mms: 119 gr
• Cms: 210 µm/N
• Le: 1.21 mH
• Re: 5.39 ohm
• BL: 19.39 T.m
• Fs: 32 Hz
• Qes: 0.34
• Qms: 10.66
• Qts: 0.34
• Vas: 391.61 L
• Xmax: ±16 mm
• EBP: 94 Hz
• Fs / Qts: 94 Hz
• Vas * Qts²: 45.28 L

Weight: ~11.1 kg
Air volume occupied by the driver: 6.62 L
Dimensions Voice coil diameter: 3 inch
Gap height: 9.5 mm
Outside diameter: 457.2 mm
Baffle cutout diameter: 421.1 mm
Depth after front: 207 mm
