Celestion TSQ1845 - 18" Subwoofer, 8 ohm

459,00 EUR

inkl. 19% MwSt. zzgl. Versand

Beschreibung

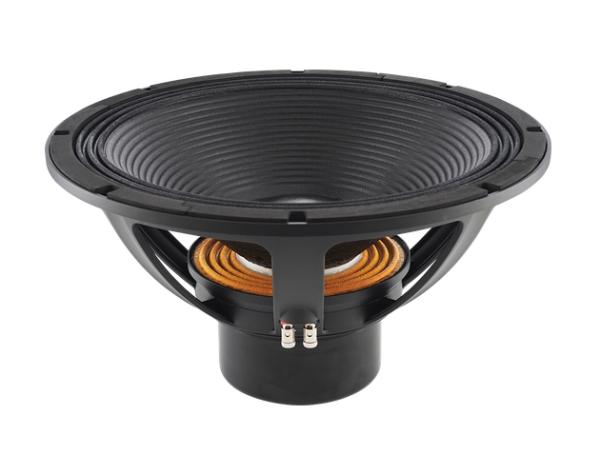

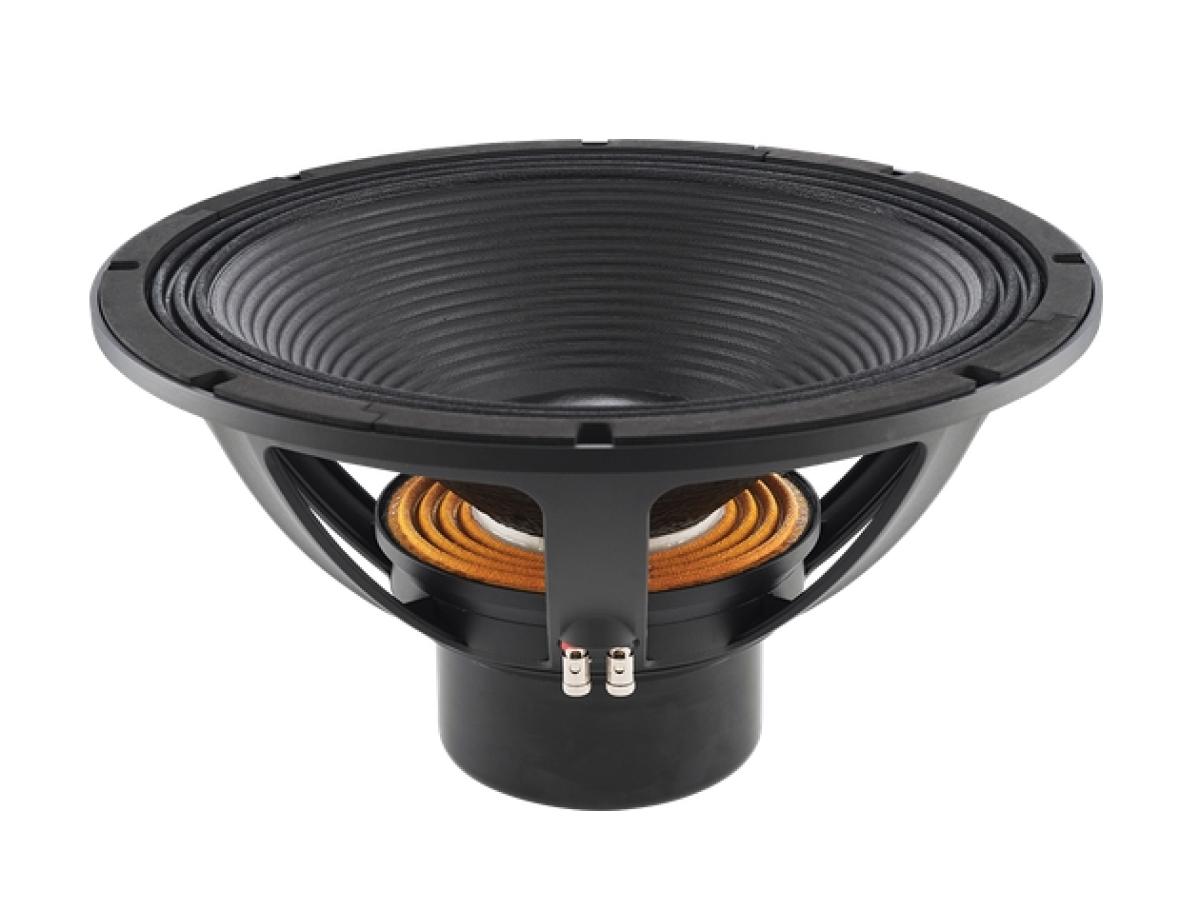

Celestion TSQ1845 - 18" Subwoofer, 8 ohm

  • Nominal impedance 8 ohm
  • Dimensional category 18 inch
  • Frequency coverage type Sub, Low
  • Manufacturer sensitivity 96.5 dB
  • Calculated sensitivity 94.16 dB
  • Nominal power handling 1800 W
  • Max power handling 3600 W
  • Bandwidth 30÷1000 Hz

Parameters
  • Sd 1134 cm²
  • Mms 316 gr
  • Cms 65 µm/N
  • Rms 7.99 kg/s
  • Le 3.06 mH
  • Re 5 ohm
  • BL 33.8 T.m
  • Fs 35 Hz
  • Qes 0.3
  • Qms 8.71
  • Qts 0.29
  • Vas 119.3 L

  • Xmax ±15 mm
  • Calculated Xmax ±16 mm
  • Xvar, Xmech, Xlim ±40 mm
  • EBP 117 Hz
  • Fs / Qts 121 Hz
  • Vas * Qts² 10.04 L
  • Efficiency 1.8 %
  • Calculated efficiency 1.64 %
  • Weight ~11.8 kg
  • Dimensions Voice coil diameter 4.5 inch
  • Winding depth 36 mm
  • Gap height 12 mm
  • Outside diameter 460 mm
  • Baffle cutout diameter 414 mm
  • Depth 235 mm

  • Front chape Cylindrical
  • Magnet type Neodymium
  • Basket masterial Aluminium
  • Winding material Copper
  • Voice coil former Glass fiber
  • Surround shape Triple roll
  • Surround material Cloth
