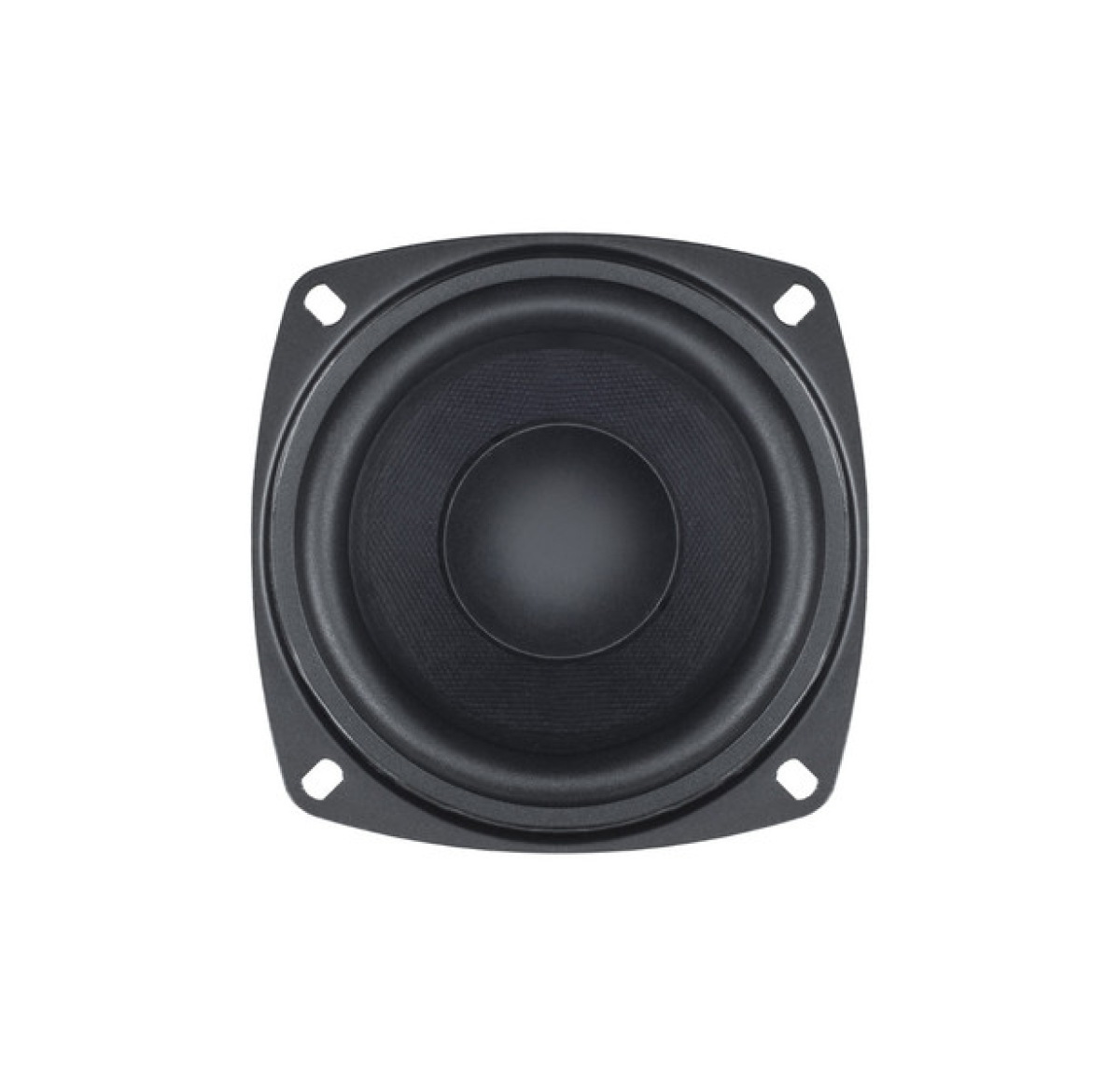

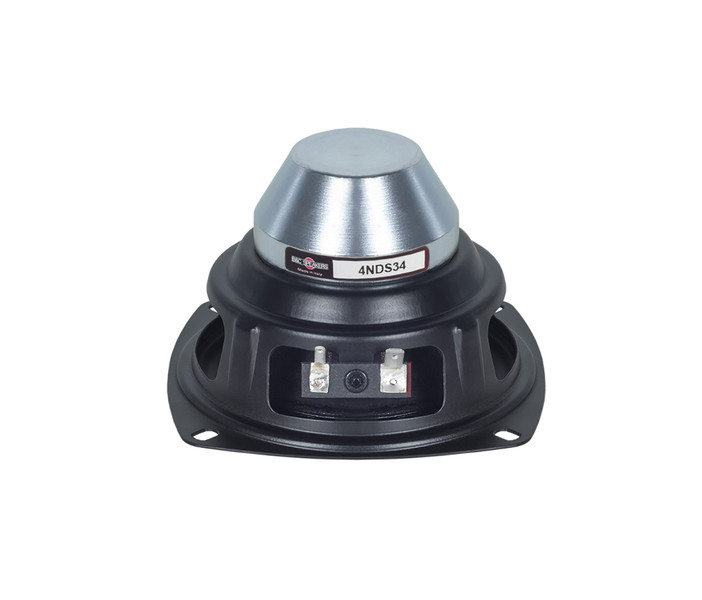

B&C 4NDS34 - 4 Zoll Lautsprecher
B&C 4NDS34 - 4 Zoll Lautsprecher
Datenblatt
- Nominal Diameter: 100 mm (3.94 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.2 Ω
- Nominal Power Handling: 100 W
- Continuous Power Handling .200 W
- Sensitivity: 89.0 dB
- Frequency Range: 80 - 2000 Hz
- Voice Coil Diameter: 33 mm (1.3 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 11.0 mm (0.43 in)
- Magnetic Gap Depth: 7.0 mm (0.28 in)
- Flux Density: 1.25 T
