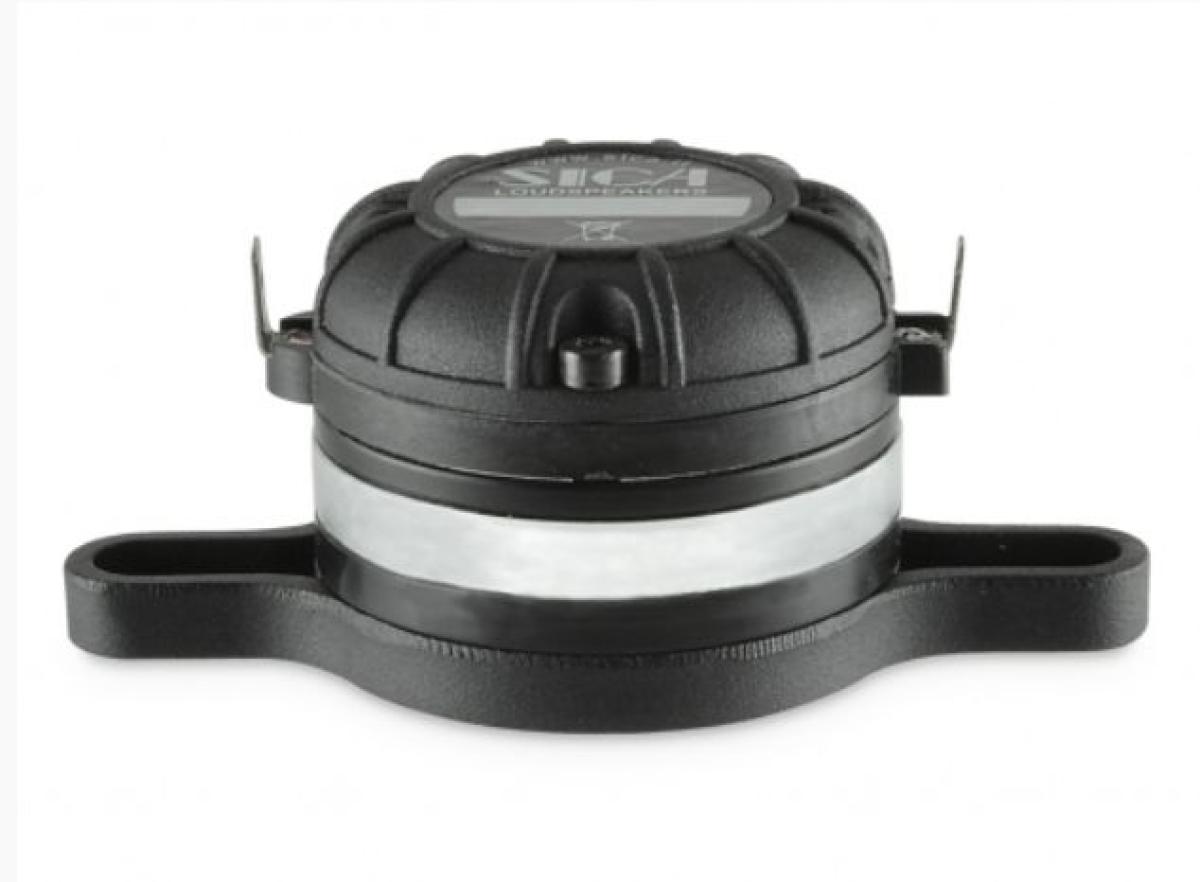

Sica 1"- 60W Compression Driver CD 60.38/N92 TW 8 Ω (Z009484)
mit Neodym-Antrieb und PEI-Diaphragma. Schwingspulendurchmesser 1,5". Einsatz ab 2.0 kHz
ELECTRICAL CHARACTERISTICS
Nominal Impedance........................... 8 Ω
Musical Power ................................. 60 W
Rated Power* .................................. 30 W
Sensitivity @ 1 W, 1 m ....................... 107.9 dB
GENERAL CHARACTERISTICS
Nominal Overall Diameter ................. 60 mm
Nominal Voice Coil Diameter .............. 38 mm
Throat Diameter ............................. 25.4/1 mm/in
Magnet Weight ............................... 92 g
Flux Density................................... 1.85 T
Weight ......................................... 0.42 Kg
Voice Coil DC Resistance ........... RE 6.00 Ω
Resonance Frequency ............... fs 1100 Hz
CONSTRUCTIVE CHARACTERISTICS
Magnet................................. Neodymium
Voice Coil Winding Material ........ Aluminium Flat Wire
Voice Coil Former Material ......... Kapton
Voice Coil Winding Height .......... 2.5mm
Diaphragm Material.................. PEI
Air Gap Height........................ 2.5mm
Ferrofluid in the Air Gap ........... No
Horn.................................... - - -
Electrical Connection ............... 2 x 0.63mm x 0.8mm
