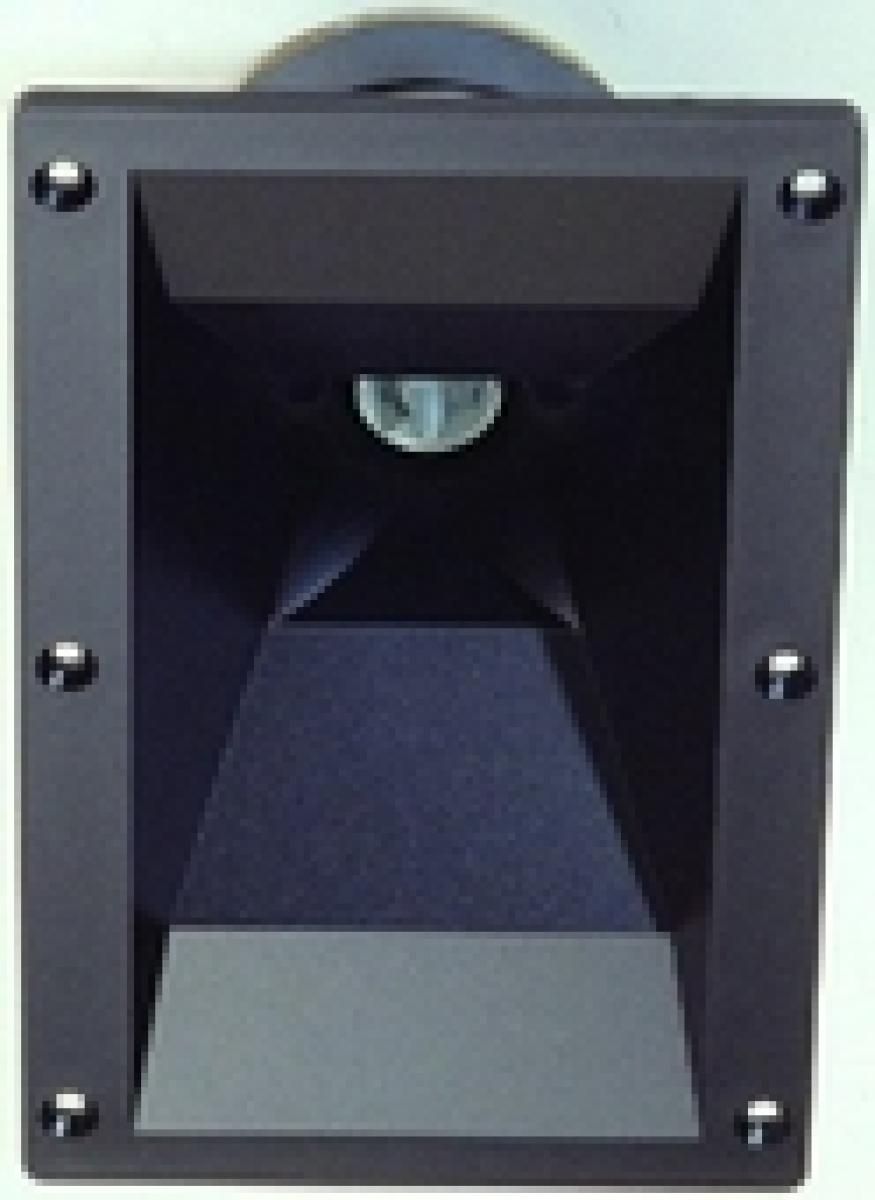

Hochtontreiber Eminence APT150

Hochtontreiber Eminence APT:150
ab 3500 Hz


SPECIFICATION

* Impedance: 8 ohm
* Power: 45W RMS 3.5kHz 85W RMS 5.0kHz (IEC 268-5, crossover frequency 6kHz, 18dB/octave)
* Resonance: 600Hz
* Usable Frequency Range: 3.5kHz to 20kHz
* Recommended Crossover: 3.5kHz
* Sensitivity (1W1m mounted to test horn): 105dB
* Dispersion 100 x 50
* Diaphragm Material: Phenolic
* Weight: 700 grams

MOUNTING Information

* Dispersion 100 x 50
* Dimensions 191mm x 114mm
* Cut-out 170mm x 86mm

* Depth 114.3mm
* Weight 909g
