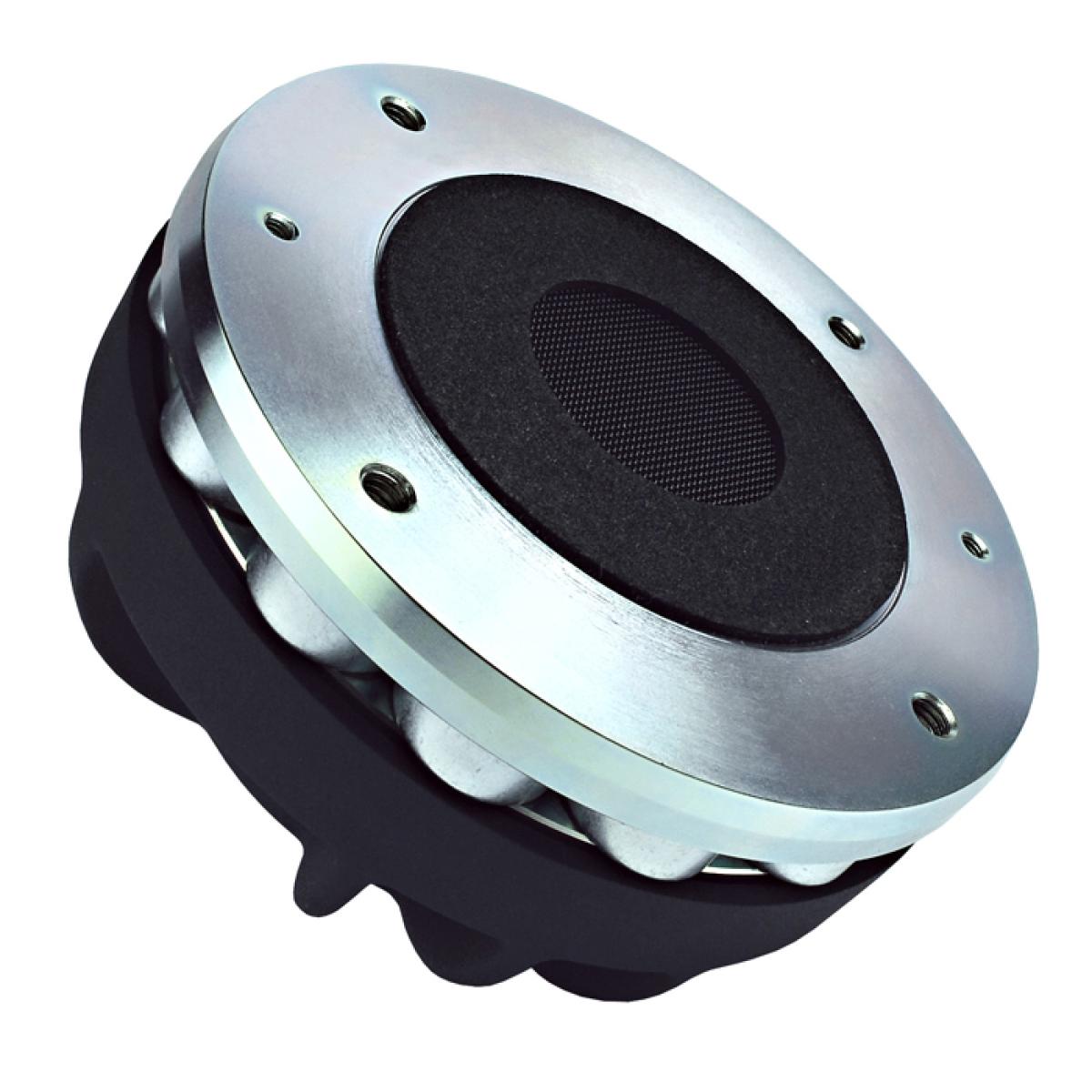

Faital Pro HF144 - 1,4" Hochtontreiber 80 W, 16 Ohm

Faital Pro HF144 - 1,4" Hochtontreiber 80 W, 8 Ohm

Nominal Specifications

* Throat Diameter 1.40", 35.6 mm
* Overall Diameter 4.84", 123 mm
* Depth 2.5", 63.5 mm
* 90° Mounting Holes Diameter (4xM6) 4.02", 102 mm

Electrical Specifications

* Nominal Impedance 16 Ohm
* Minimum Crossover Frequency* 0.9 kHz
* Sensitivity (1W/1m)** 110 dB
* Frequency Range 0.7 - 18 kHz
* Nominal Power Handling*** 80 W
* Maximum Power Handling**** 160 W
* Diaphragm Material Ketone Polymer
* Voice Coil Diameter 2.56", 65 mm
* Winding Depth 0.12", 3 mm
* Former Material Kapton
* Magnetic Gap Depth 0.17", 4.2 mm
* Flux Density 1.7 T
* Winding Material Copper Clad Aluminium

Notes

* *12 dB/oct or higher slope high-pass filter
* **Averaged within the frequency range
* ***Test made for 2 hours with Pink Noise signal (6 dB Crest Factor)
from minimum crossover frequency. Power calculated on rated
minimum impedance. Driver mounted on aluminium horn.
* ****Maximum power is defined as 3dB greater than nominal power
