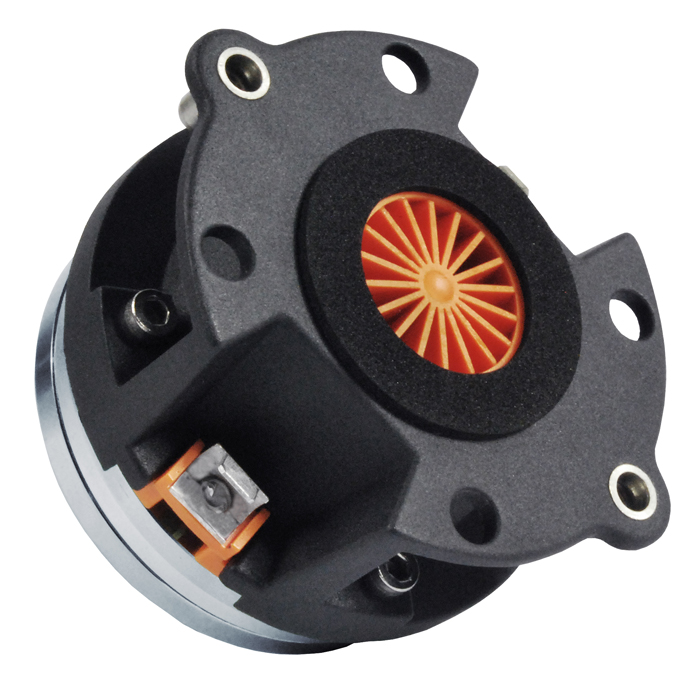

Faital Pro HF104 - 1" Hochtontreiber 40 W 8 Ohm
Nominal Specifications
* Throat Diameter 1", 25.4 mm
* Overall Diameter 3.58", 91 mm
* Depth 2.01", 51 mm
* 180° Mounting Holes Diameter (2xM6) 3.05", 77.5 mm
Electrical Specifications
* Nominal Impedance 8 Ohm
* Minimum Impedance 6.9 Ohm
* Re 5.5 Ohm
* Minimum Crossover Frequency* 1.7 kHz
* Sensitivity (1W/1m)** 108 dB
* Frequency Range 0.8 - 20 kHz
* Nominal Power Handling*** 40 W * Maximum Power Handling**** 80 W
* Diaphragm Material Ketone Polymer
* Voice Coil Diameter 1.5", 38 mm
* Winding Depth 0.08", 2.1 mm
* Former Material Kapton
* Magnetic Gap Depth 0.10", 2.6 mm
* Flux Density 1.85 T
* Winding Material Copper Clad Aluminium
Notes
* *12 dB/oct or higher slope high-pass filter
* **Averaged within the frequency range
* ***Test made for 2 hours with Pink Noise signal (6 dB Crest Factor)
from minimum crossover frequency. Power calculated on rated
minimum impedance. Driver mounted on aluminium horn. * ****Maximum power is defined as 3dB greater than nominal power
