Faital Pro 15HP1010 - 15" Subwoofer
(Art.Nr.: 3071)
Faital Pro 15HP1010 - 15" Subwoofer
Nominal Specifications
Electrical Specifications
THIELE & SMALL Parameters

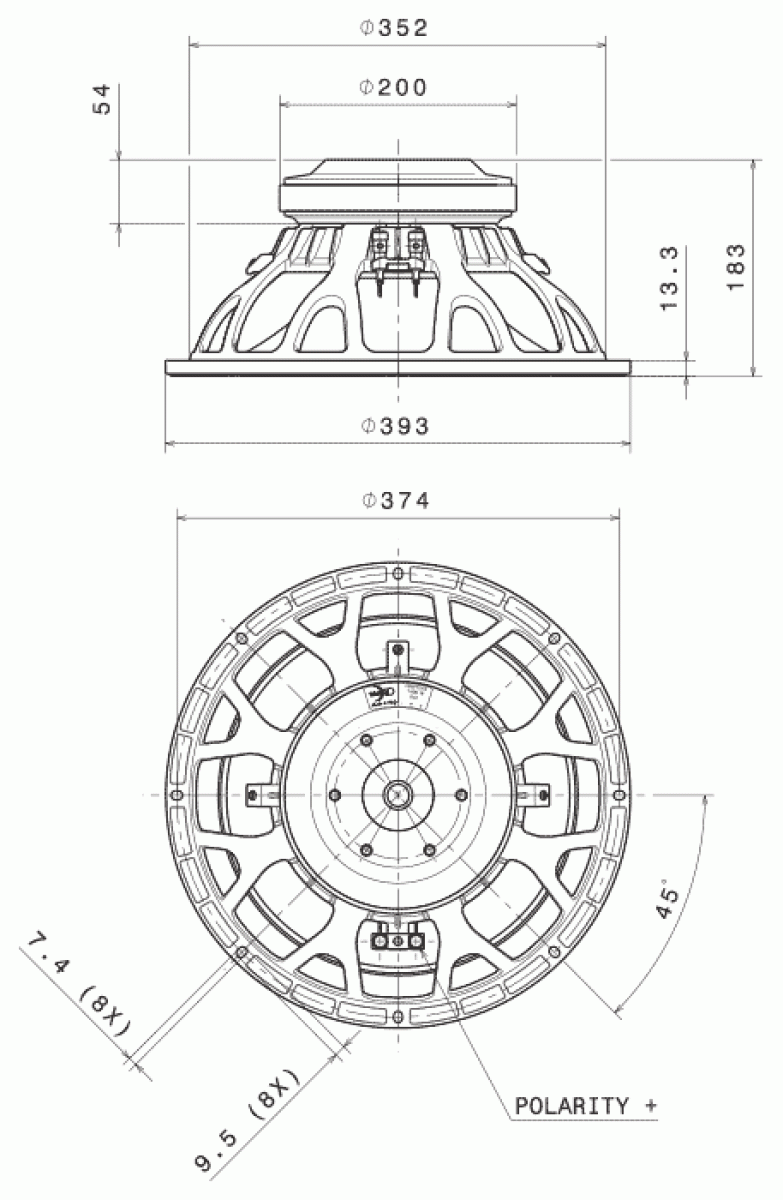

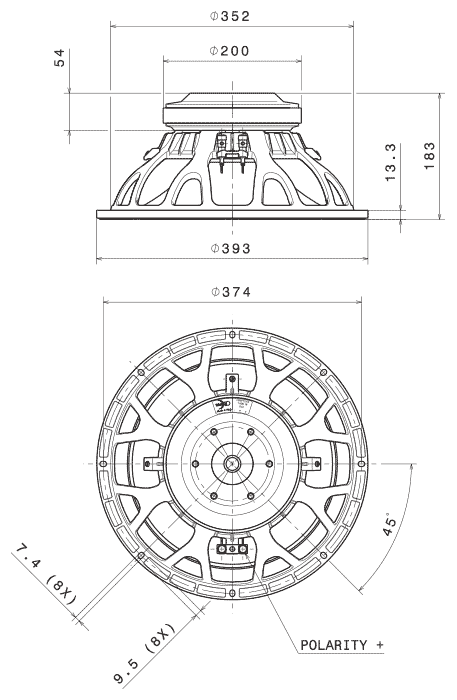

Nominal Specifications
- Nominal Diameter 15", 380 mm
- Overall Diameter 15.47", 393 mm
- Bolt Circle Diameter 14.72", 374 mm
- Baffle Cutout Diameter 13.94", 354 mm
- Depth 7.20", 183 mm
- Flange and Gasket Thickness 0.52", 13.3 mm
Electrical Specifications
- Minimum Impedance 6.9 Ohm
- Nominal Impedance 8 Ohm
- Nominal Power Handling 700 W
- Maximum Power Handling 1,400 W
- Sensitivity (1W/1m) 96 dB

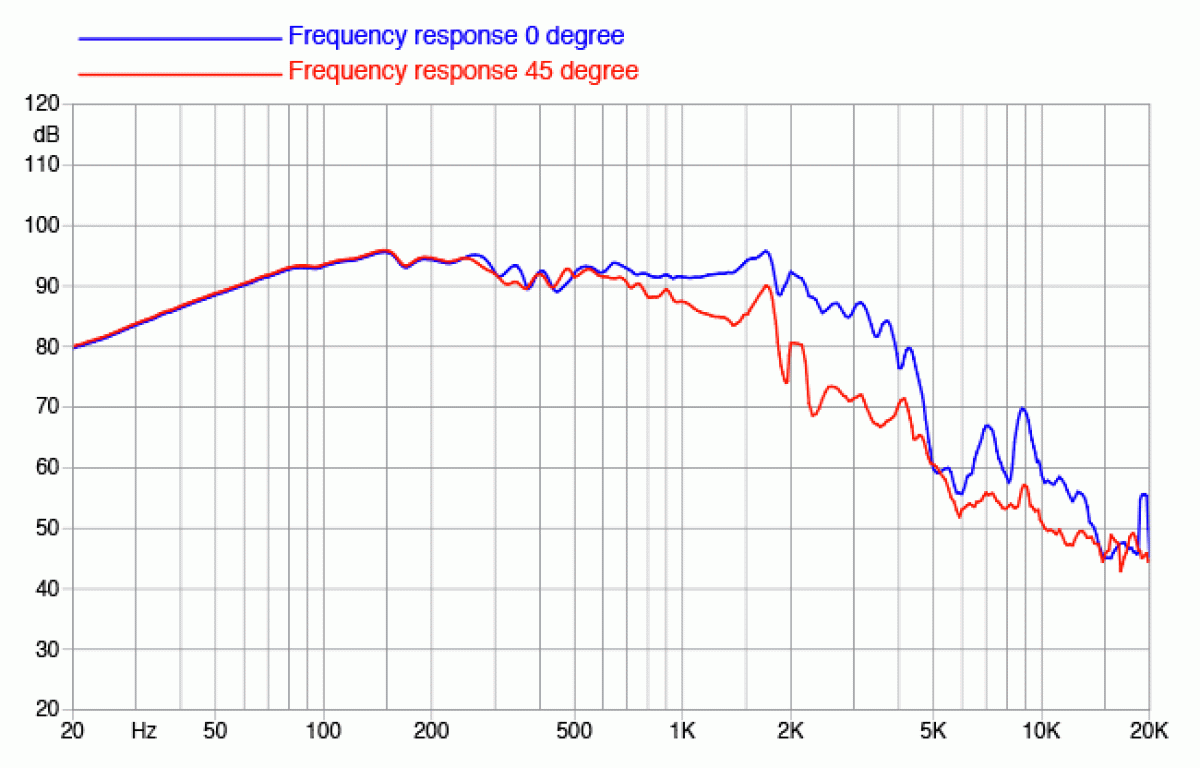

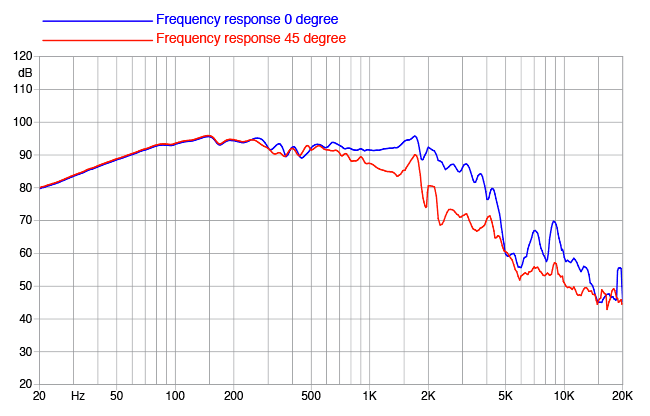

- Frequency Range 40 - 3150 Hz
- Voice Coil Diameter 4", 100 mm
- Winding Material Copper
- Former Material Glass Fiber
- Winding Depth 0.9", 23 mm
- Magnetic Gap Depth 0.41", 10.5 mm
- Flux Density 1.05 T
THIELE & SMALL Parameters
- Resonant Frequency (fs) 40 Hz
- DC Resistance (Re) 5.4 Ohm
- BL Product (BL) 21.7 N/A
- Diaphragm Mass inc. Airload (Mms) 131.7 grams
- Mechanical Compliance of Suspension (Cms) 0.12 mm/N
- Rms 2.45 Kg/s
- Electromagnetic Q (Qes) 0.4
- Mechanical Q (Qms) 13.7
- Total Q (Qts) 0.4
- Compliance Equivalent Volume (Vas) 3.31 ft³, 93.65 dm³
- Surface Area of Cone (Sd) 117.2"², 756.2 cm²
- Maximum Linear Excursion (Xmax)* 9.75 mm
- Xdamage** 21.9 mm
- Coil Inductance (Le) 1.7 mH
- Diaphragm mass (Mmd) 131.7 g
- Eta Zero 1.5 %
