Faital Pro 18HP1030 - 18" Subwoofer 1200W

Faital Pro 18HP1030 - 18" Subwoofer 1200W
Der Lautsprecher wird mittels Ferrit-Magnetsystem angetrieben.
Gehäuseempfehlung: 140 Liter Bassreflex mit 35 Hz

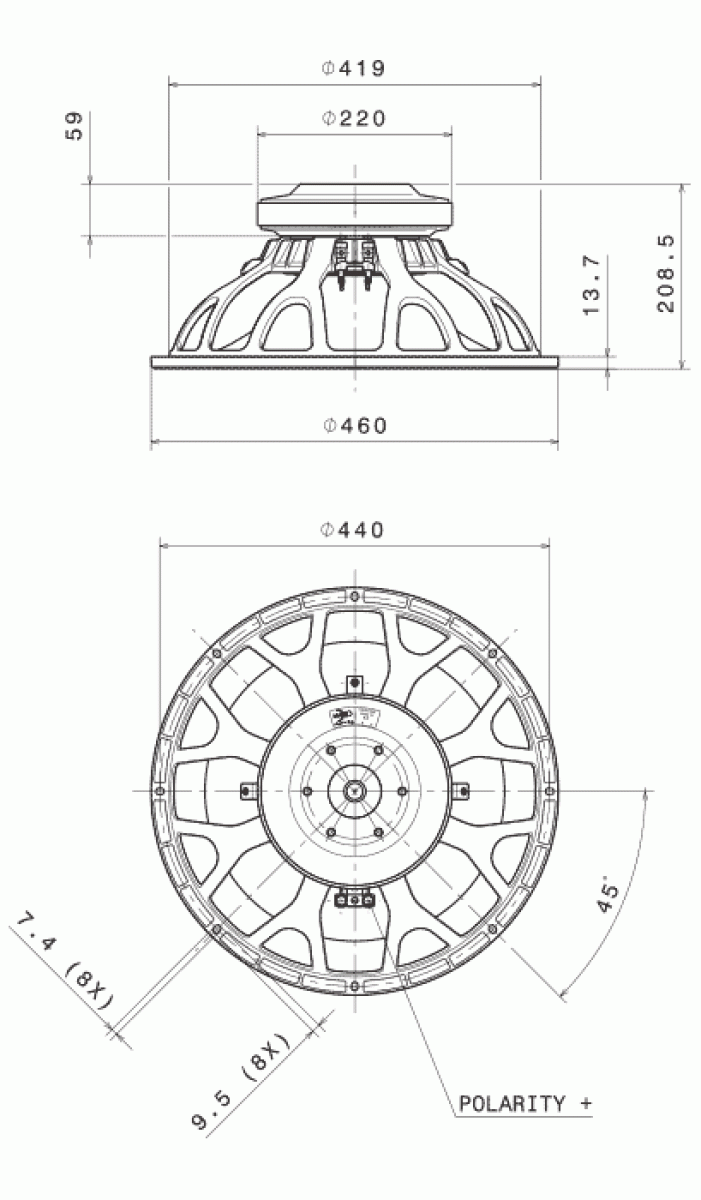

Features:

• Nominal Diameter 18", 460 mm
• Overall Diameter 18.11", 460 mm
• Bolt Circle Diameter 17.32", 440 mm
• Baffle Cutout Diameter 16.57", 421 mm
• Depth 8.21", 208.5 mm
• Flange and Gasket Thickness 0.54", 13.7 mm

Electrical Specifications

• Minimum Impedance 6.4 Ohm
• Nominal Impedance 8 Ohm
• Nominal Power Handling*** 1200 W
• Maximum Power Handling**** 2400 W
• Sensitivity (1W/1m) 98 dB

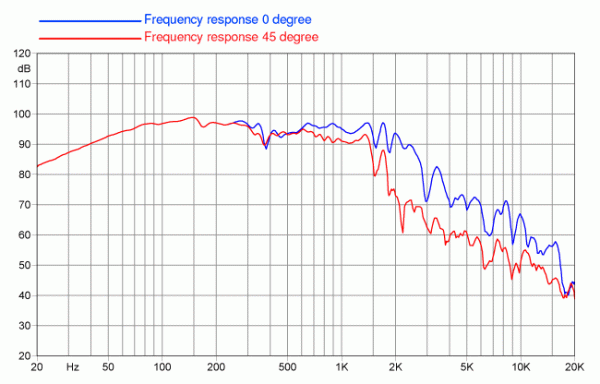

• Frequency Range 35 - 1600 Hz
• Voice Coil Diameter 4", 100 mm
• Winding Material Copper
• Former Material Glass Fiber
• Winding Depth 1.14", 28.9 mm
• Magnetic Gap Depth 0.47", 12 mm
• Flux Density 1.1 T

THIELE & SMALL Parameters

• Resonant Frequency (fs) 35 Hz
• DC Resistance (Re) 5 Ohm
• BL Product (BL) 24.3 N/A
• Diaphragm Mass inc. Airload (Mms) 228.6 grams
• Mechanical Compliance of Suspension (Cms) 0.085 mm/N
• Rms 4.46 Kg/s
• Electromagnetic Q (Qes) 0.44
• Mechanical Q (Qms) 11.6
• Total Q (Qts) 0.43
• Compliance Equivalent Volume (Vas) 5.88 ft³, 166.4 dm³
• Surface Area of Cone (Sd) 182"², 1174 cm²
• Maximum Linear Excursion (Xmax)* 12.45 mm
• Xdamage** 23.1 mm
• Coil Inductance (Le) 1.37 mH
• Diaphragm mass (Mmd) 205.8 g
• Eta Zero 1.67 %

 Datenblatt
