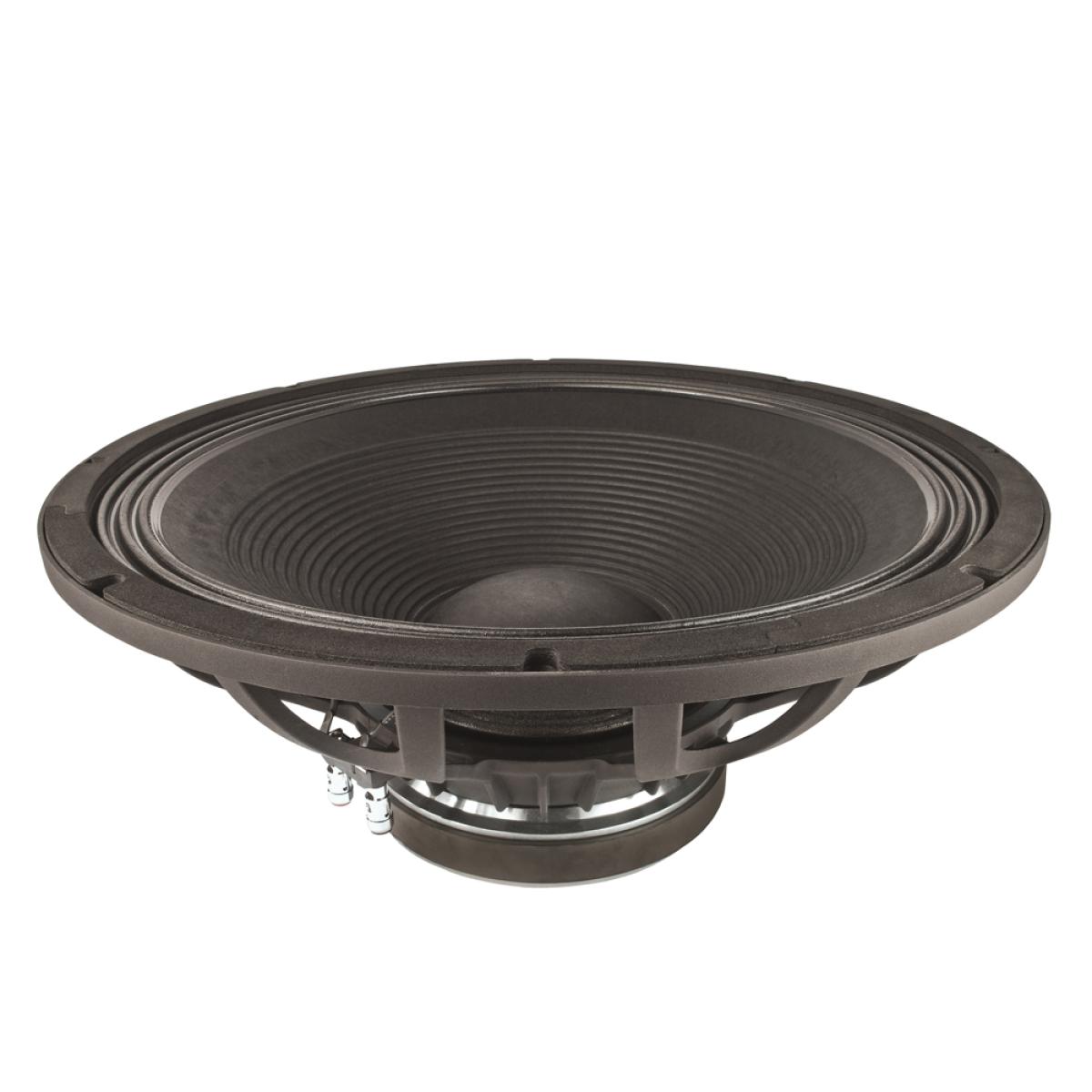

Faital Pro 18HP1010 - 18" Subwoofer 1000W
Der Lautsprecher wird mittels Ferrit-Magnetsystem angetrieben. Geeignet für Bassreflex Subwoofer mit ca. 150 bis 200 L Volumen und 35 Hz Tuning.
Features:
- Nominal Diameter: 18", 460 mm
- Overall Diameter: 18.11", 460 mm
- Bolt Circle Diameter: 17.32", 440 mm
- Baffle Cutout Diameter: 16.57", 421 mm
- Depth: 8.01", 203.5 mm
- Flange and Gasket Thickness: 0.54", 13.7 mm
Specifications
- Resonant Frequency (fs): 35 Hz
- DC Resistance (Re): 5.4 Ohm
- BL Product (BL): 22 N/A
- Diaphragm Mass inc. Airload (Mms): 175.2 grams
- Mechanical Compliance of Suspension (Cms): 0.11 mm/N
- Rms: 3 Kg/s
- Electromagnetic Q (Qes): 0.4
- Mechanical Q (Qms): 12.9
- Total Q (Qts): 0.4
- Compliance Equivalent Volume (Vas): 7.97 ft³, 225.8 dm³
- Surface Area of Cone (Sd): 180.7"², 1,166 cm²
- Maximum Linear Excursion (Xmax): 9.75 mm
- Xdamage: 21.9 mm
- Coil Inductance (Le): 1.37 mH
- Diaphragm mass (Mmd): 152.7 g
- Eta Zero: 2.34 %
- Minimum Impedance: 6.7 Ohm
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 1,000 W
- Maximum Power Handling: 2,000 W
- Sensitivity: (1W/1m) 98 dB
- Frequency Range: 35 - 2000 Hz
- Voice Coil Diameter: 4", 100 mm
- Winding Material: Copper
- Former Material: Glass Fiber
- Winding Depth: 0.91", 23 mm
- Magnetic Gap Depth: 0.41", 10.5 mm
- Flux Density: 1.05 T
