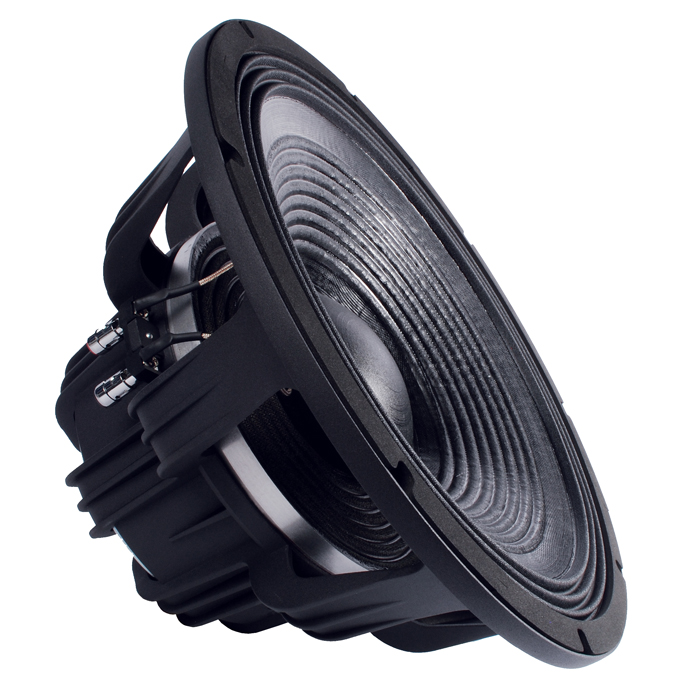

Faital Pro 15XL1400 - 15" Subwoofer, 8 Ohm
Faital Pro 15XL1400 - 15" Subwoofer
Sehr gute Performance in kompakten Bassreflex Gehäusen
Nominal Specifications
Electrical Specifications
THIELE & SMALL Parameters
Technische Daten...
Sehr gute Performance in kompakten Bassreflex Gehäusen
Nominal Specifications
- Nominal Diameter 15", 380 mm
- Overall Diameter 15.47", 393 mm
- Bolt Circle Diameter 14.72", 374 mm
- Baffle Cutout Diameter 13.85", 351.8 mm
- Depth 8.46", 215 mm
- Flange and Gasket Thickness 0.54", 13.7 mm
Electrical Specifications
- Minimum Impedance: 7 Ohm
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 1,400 W
- Maximum Power Handling: 2,800 W
- Sensitivity (1W/1m): 97 dB
- Frequency Range: 40 - 2500 Hz
- Voice Coil Diameter: 4", 100 mm
- Winding Material: Copper
- Former Material: Glass Fiber
- Winding Depth: 1.22", 31 mm
- Magnetic Gap Depth: 0.31", 15.5 mm
- Flux Density: 1.1 T
THIELE & SMALL Parameters
- Resonant Frequency (fs): 35 Hz
- DC Resistance (Re): 5.4 Ohm
- BL Product (BL): 27 N/A
- Diaphragm Mass inc. Airload (Mms): 190 grams
- Mechanical Compliance of Suspension (Cms): 0.1 mm/N
- Rms: 4.75 Kg/s
- Electromagnetic Q (Qes): 0.31
- Mechanical Q (Qms): 8.8
- Total Q (Qts): 0.30
- Compliance Equivalent Volume (Vas): 3.32 ft³, 94 dm³
- Surface Area of Cone (Sd): 120.9"², 780 cm²
- Maximum Linear Excursion (Xmax): 12.9 mm
- Xdamage: 28 mm
- Coil Inductance (Le): 1.6 mH
- Diaphragm mass (Mmd): 177.7 g
- Eta Zero: 1.26 %
