Faital Pro 15HP1060 - 15" Subwoofer 1000 W 8 Ohm
Extrem leistungsfähiger 15 Zoll Subwofer auch in kleinem Volumen
Nominal Specifications
- Nominal Diameter 15", 380 mm
- Overall Diameter 15.47", 393 mm
- Bolt Circle Diameter 14.72", 375 mm
- Baffle Cutout Diameter 13.94", 354 mm
- Depth 7.65", 194.3 mm
- Flange and Gasket Thickness 0.54", 13.7 mm
Electrical Specifications
- Minimum Impedance 6.4 Ohm
- Nominal Impedance 8 Ohm
- Nominal Power Handling*** 1000 W
- Maximum Power Handling**** 2000 W
- Sensitivity (1W/1m) 97 dB

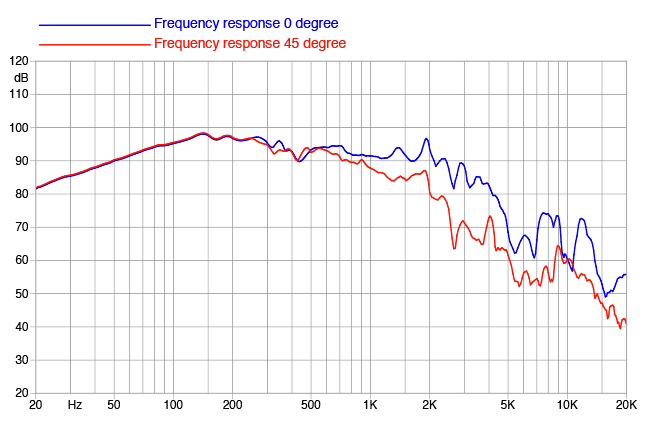

- Frequency Range 40 - 2000 Hz
- Voice Coil Diameter 4", 100 mm
- Winding Material Kupfer
- Former Material Glass Fiber
- Winding Depth 1.14", 28.9 mm
- Magnetic Gap Depth 0.47", 12 mm
- Flux Density 1.22 T
THIELE & SMALL Parameters
- Resonant Frequency (fs) 40 Hz
- DC Resistance (Re) 5 Ohm
- BL Product (BL) 24.8 N/A
- Diaphragm Mass inc. Airload (Mms) 156.3 grams
- Mechanical Compliance of Suspension (Cms) 0.1 mm/N
- Rms 3.44 Kg/s
- Electromagnetic Q (Qes) 0.32
- Mechanical Q (Qms) 11.4
- Total Q (Qts) 0.31
- Compliance Equivalent Volume (Vas) 3.09 ft³, 87.5 dm³
- Surface Area of Cone (Sd) 120.9"², 780 cm²
- Maximum Linear Excursion (Xmax)* 12.45 mm
- Xdamage** 21 mm
- Coil Inductance (Le) 1.32 mH
- Diaphragm mass (Mmd) 143.9 g
- Eta Zero 1.7 %
