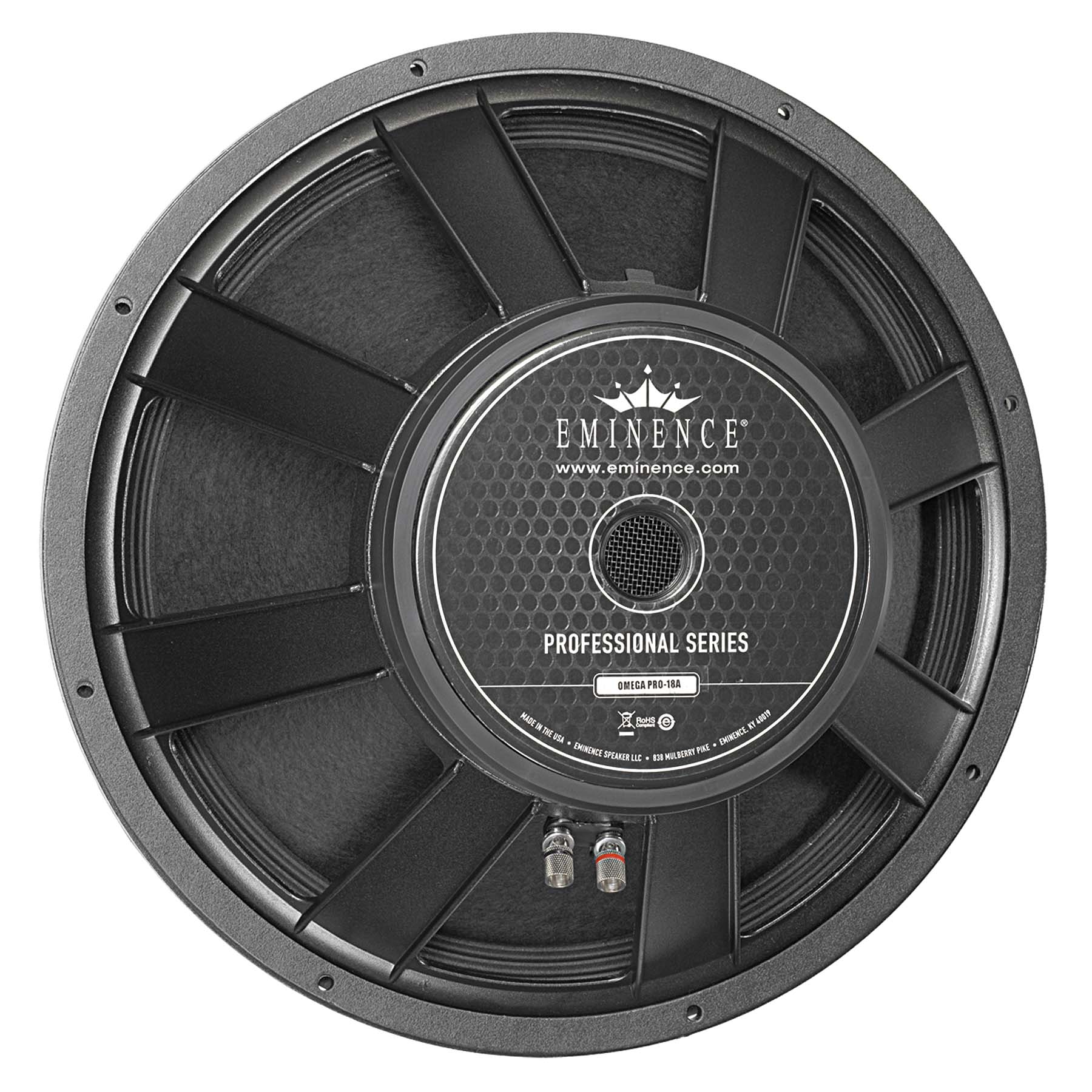

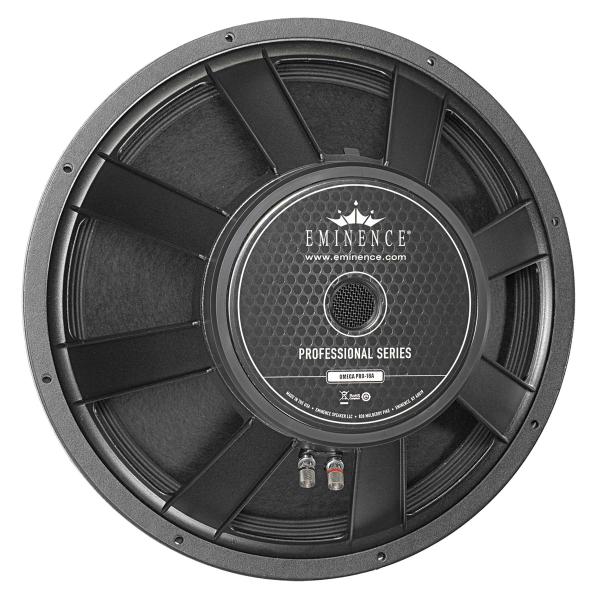

Eminence Omega Pro-18A - 18" Subwoofer, 800 Watt

Eminence Omega Pro 18, 18" Subwoofer, 800 Watt

SPECIFICATION

* Durchmesser: 18", 457.2mm
* Impedanz: 8 ohms
* Belastbarkeit: RMS 800W / Programm 1600W
* Resonanzfrequenz: 25Hz
* nutzbarer Frequenzbereich: 40Hz-800Hz
* Sensitivity: 97
* Voice Coil: 4", 101.6mm

THIELE & Small Parameters

* Resonant Frequency (fs) 25Hz
* DC Resistance (Re) 5.20
* Coil Inductance (Le) 1.67mH
* Mechanical Q (Qms) 8.18
* Electromagnetic Q (Qes) 0.32
* Total Q (Qts) 0.31
* Compliance Equivalent Volume (Vas) 548.7 liters/19.4 cu. ft.
* Peak Diaphragm Displacement Volume 556cc
* Mechanical Compliance of Suspension (Cms) 0.29mm/N
* BL Product (BL) 18.8 T-M
* Diaphragm Mass inc. Airload (Mms) 138 grams
* Efficiency Bandwidth Product (EBP) 79
* Maximum Linear Excursion (Xmax) 4.8mm
* Surface Area of Cone (Sd) 1159.0 cm2
* Maximum Mechanical Limit (Xlim) 16.0mm
