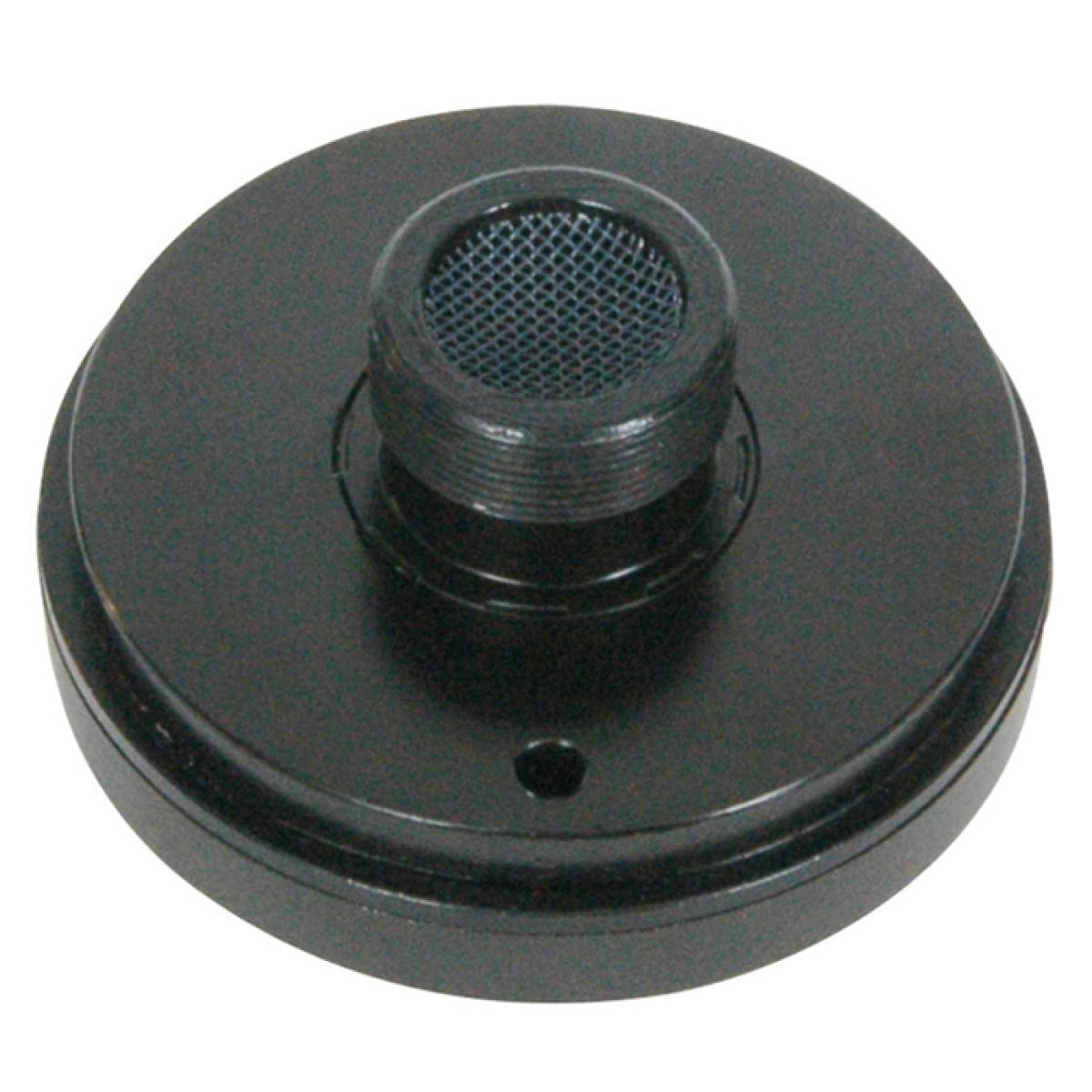

Eminence NSD2005 SB 1'' HF Treiber 50 W 16 Ohm

Eminence 1 Zoll Hochtontreiber

SPECIFICATION

* Throat Size 1", 25.4mm
* Nominal Impedance* 8 ohms
* Power Rating 50W (AES Secification, 1.5kHz 12dB)
* Resonance 580Hz
* Usable Frequency Range 1.5kHz - 16kHz
* Recommended Crossover 1.5kHz/12dB
* Sensitivity (1W 1m on axis on horn) 111dB
* Magnet Weight 4.16 oz.
* Voice Coil Diameter 2", 51mm
* Re 6.8
* Le .95 mH

MOUNTING Information

* Overall Diameter 3.87", 98.3mm
* Mounting Holes Diameter 2X 1/4-20
* Mounting Holes B.C.D. 3"
* Depth 1.75", 44mm
* Weight 2 lbs, 921g

MATERIALS of Construction

* Voice Coil Former Polyimide
* Diaphragm Material Titanium


Datenblatt
