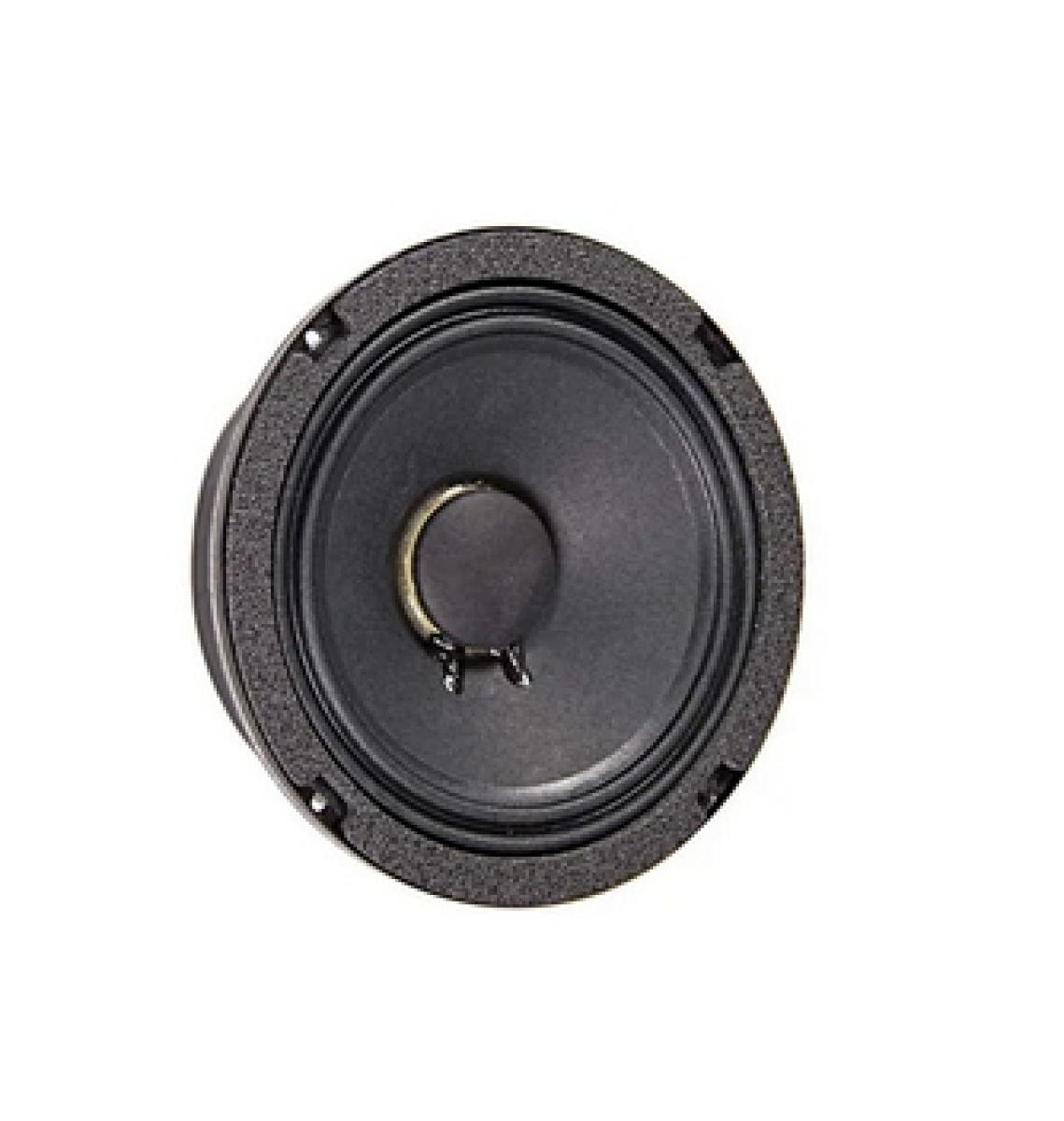

Eminence Line Array 6CBMR, 8 Ohm
Eminence Alpha 6CBMR, 8 Ohm
Line Array 6'' 150W
Recommended for professional audio midrange from 500Hz-3kHz. Basket is closed. Truncated basket for close spacing in line-arrays.
SPECIFICATION
* Nominal Basket Diameter 6.5", 165 mm * Nominal Impedance 8 ohms * Power Rating Watts 150 W / Music Program 300 W * Resonance 460 Hz * Usable Frequency Range 500 Hz - 5.4 kHz * Sensitivity 97.8 * Magnet Weight 38 oz. * Gap Height 0.31", 7.92 mm * Voice Coil Diameter 1.5", 38.1 mm
THIELE & Small Parameters
* Resonant Frequency (fs) 460 Hz * DC Resistance (Re) 6.3 * Coil Inductance (Le) 0.33 mH * Mechanical Q (Qms) 3.13 * Electromagnetic Q (Qes) 1.24 * Total Q (Qts) 0.89 * Compliance Equivalent Volume (Vas) 0.4 liters / 0.01 cu. ft. * Peak Diaphragm Displacement Volume (Vd) 2.7 cc * Mechanical Compliance of Suspension (Cms) 0.01 mm/N * BL Product (BL) 11.1 T-M * Diaphragm Mass inc. Airload (Mms) 9 grams * Efficiency Bandwidth Product (EBP) 371 * Maximum Linear Excursion (Xmax) 0.2 mm * Surface Area of Cone (Sd) 133.1 cm² * Maximum Mechanical Limit (Xlim) 0.8 mm
MOUNTING Information
* Recommended Enclosure Volume Sealed N/A Vented N/A * Overall Diameter 6.59", 167 mm/Width * Baffle Hole Diameter 5.65", 143.5 mm * Front Sealing Gasket fitted as standard * Rear Sealing Gasket as standard * Mounting Holes Diameter 0.23", 5.7 mm * Mounting Holes B.C.D. 6.06", 154 mm * Depth 2.77", 70 mm
MATERIAL of Construction
* Copper voice coil * Polyimide former * Ferrite magnet * Vented and extended core * Pressed steel basket with truncated sides * Paper Cone * Cloth cone edge * Solid composition paper dust cap
Datenblatt
