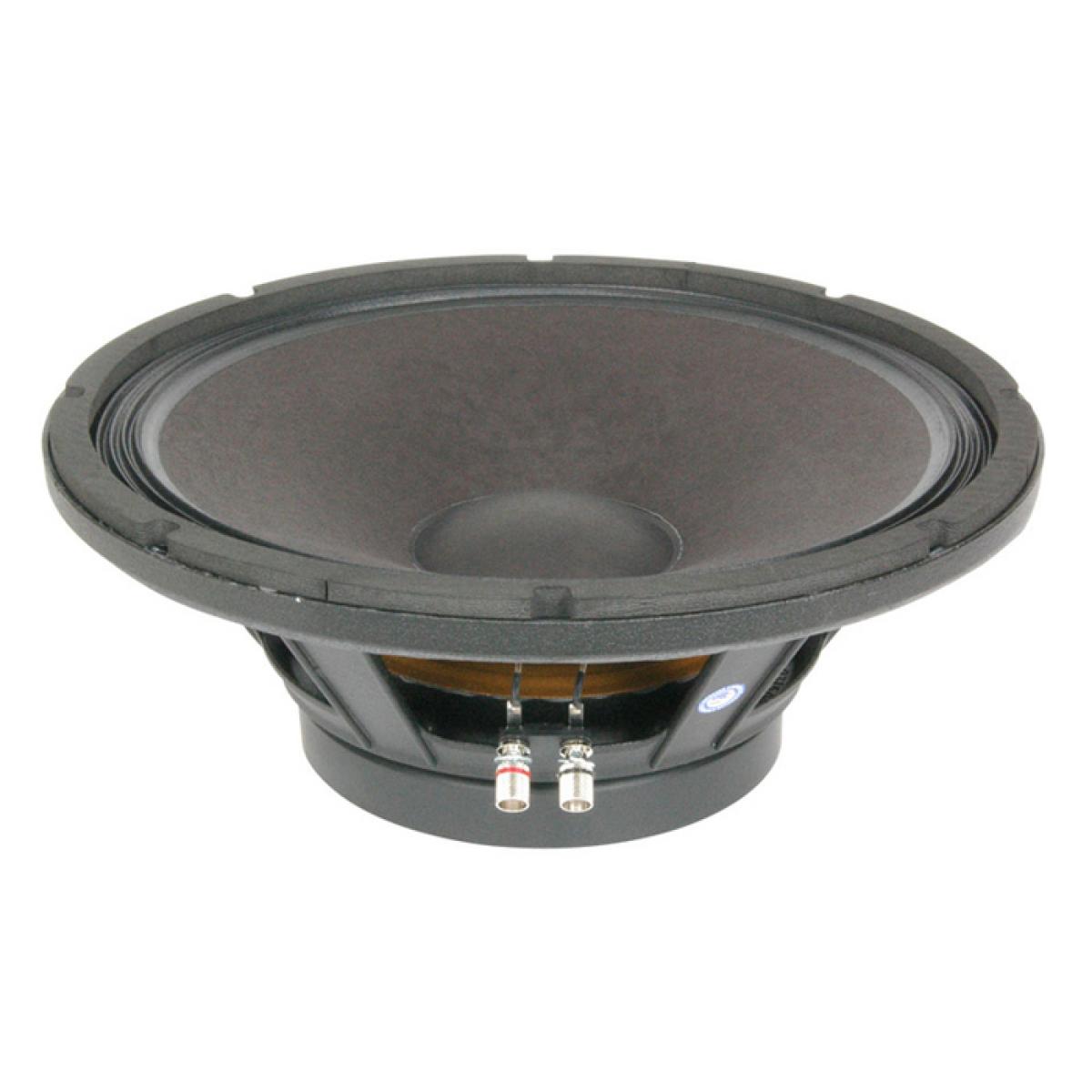

Eminence Legend CB 15
loudspeaker 15'' for professional bass guitar applications in a sealed or vented enclosure.
SPECIFICATION
* Nominal Basket Diameter 15", 381 mm * Nominal Impedance 8 ohms * Power Rating Watts 300 W / Music Program 600 W * Resonance 34 Hz * Usable Frequency Range 47 Hz - 3 kHz * Sensitivity 98 * Magnet Weight 80 oz. * Gap Height 0.375", 9.53 mm * Voice Coil Diameter 2.5", 63.5 mm
THIELE & Small Parameters
* Resonant Frequency (fs) 34 Hz * DC Resistance (Re) 6.15 * Coil Inductance (Le) 0.33 mH * Mechanical Q (Qms) 5.9 * Electromagnetic Q (Qes) 0.36 * Total Q (Qts) 0.34 * Compliance Equivalent Volume (Vas) 336 liters / 11.9 cu. ft. * Peak Diaphragm Displacement Volume (Vd) 411 cc * Mechanical Compliance of Suspension (Cms) 0.31 mm/N * BL Product (BL) 16.0 T-M * Diaphragm Mass inc. Airload (Mms) 70 grams * Efficiency Bandwidth Product (EBP) 95 * Maximum Linear Excursion (Xmax) 4.8 mm * Surface Area of Cone (Sd) 856.3 cm² * Maximum Mechanical Limit (Xlim) 9.5 mm
MOUNTING Information
* Recommended Enclosure Volume Sealed 54-65 liters/ 1.9-2.3 cu.ft. Vented 54-159 liters/ 1.9-5.6 cu.ft. * Overall Diameter 15.21", 386.4 mm * Baffle Hole Diameter 14.0", 355.3 mm * Front Sealing Gasket fitted as standard * Rear Sealing Gasket fitted as standard * Mounting Holes Diameter 0.28", 7.1 mm * Mounting Holes B.C.D. 14.56", 369.9 mm * Depth 6.5", 165 mm
MATERIALS of Construction
* Copper voice coil * Polyimide former * Ferrite magnet * Vented and extended core * Die-cast aluminum basket * Paper Cone * Cloth cone edge * Solid composition paper dust cap
