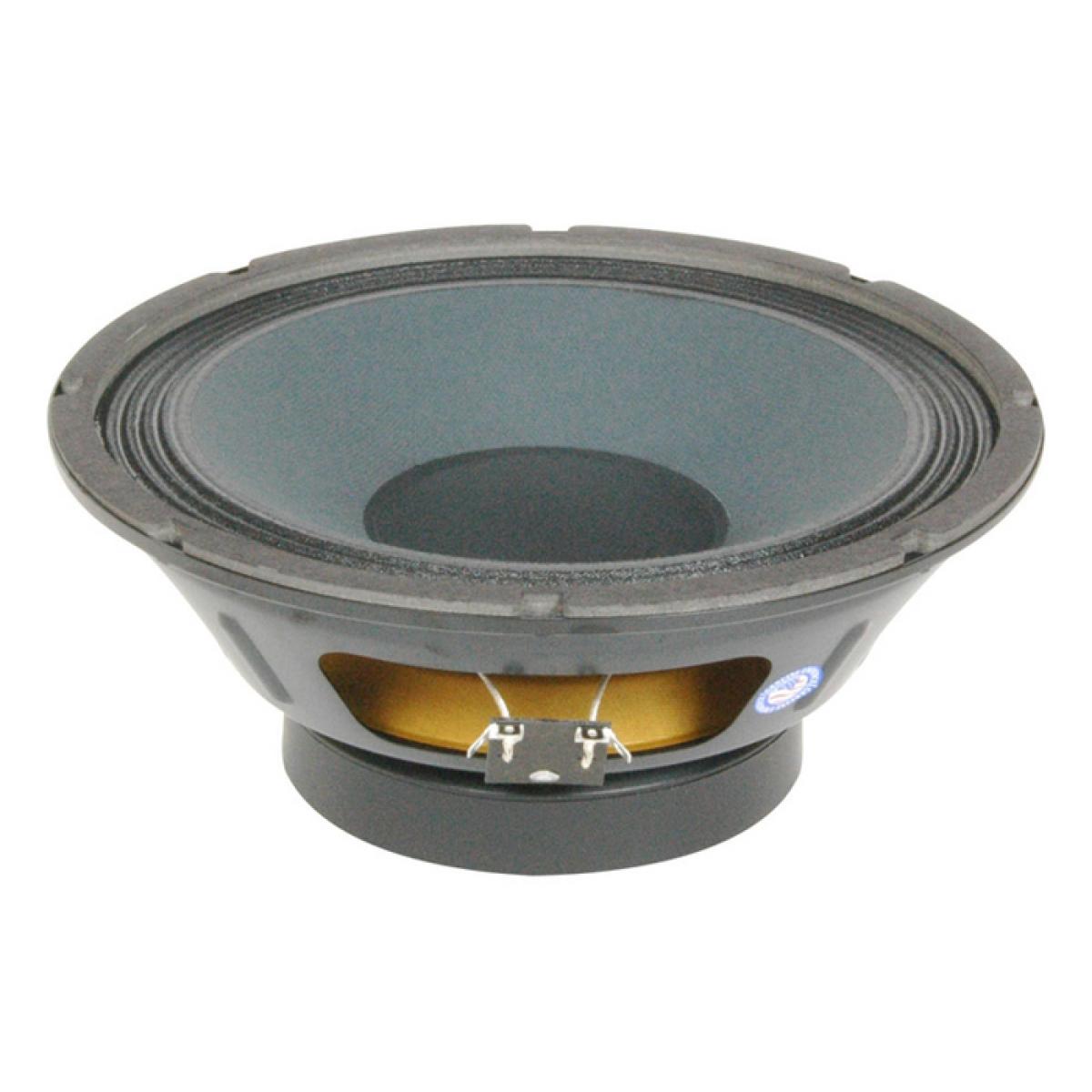

Eminence Legend BP102 - 10" Bass-Lautsprecher, 200W/8Ohm

Eminence Legend BP102 - 10" Bass-Lautsprecher, 200W/8Ohm
Gitarrenlautsprecher für Bass

Empfohlen für Bassgitarre in geschlossenem oder Bassreflexgehäuse

SPECIFICATION

• Nominal Basket Diameter 10", 254 mm
• Nominal Impedance 8 ohms
• Power Rating Watts 200 W / Music Program 400 W
• Resonance 35 Hz
• Usable Frequency Range 40 Hz - 2 kHz
• Sensitivity 92
• Magnet Weight 38 oz.
• Gap Height 0.312", 7.92 mm
• Voice Coil Diameter 2", 50.8 mm

THIELE & Small Parameters

• Resonant Frequency (fs) 35 Hz
• DC Resistance (Re) 5.59
• Coil Inductance (Le) 0.83 mH
• Mechanical Q (Qms) 5.36
• Electromagnetic Q (Qes) 0.47
• Total Q (Qts) 0.43
• Compliance Equivalent Volume (Vas) 91.2 liters / 3.2 cu. ft.
• Peak Diaphragm Displacement Volume (Vd) 207cc
• Mechanical Compliance of Suspension (Cms) 0.54 mm/N
• BL Product (BL) 10.0 T-M
• Diaphragm Mass inc. Airload (Mms) 38 grams
• Efficiency Bandwidth Product (EBP) 75
• Maximum Linear Excursion (Xmax) 6.2 mm
• Surface Area of Cone (Sd) 334.5 cm²
• Maximum Mechanical Limit (Xlim) 10.0 mm

MOUNTING Information

• für geschlossene Gehäuse mit 14-28 Liter, Bassreflexgehäuse mit 25.5 bis 62 Liter.
• Overall Diameter 10.08", 256.1mm
• Baffle Hole Diameter 9.05", 229.7mm
• Front Sealing Gasket fitted as standard
• Rear Sealing Gasket as standard
• Mounting Holes Diameter 0.25", 6.4 mm
• Mounting Holes B.C.D. 9.66", 245.4 mm
• Depth 4.25", 108 mm
