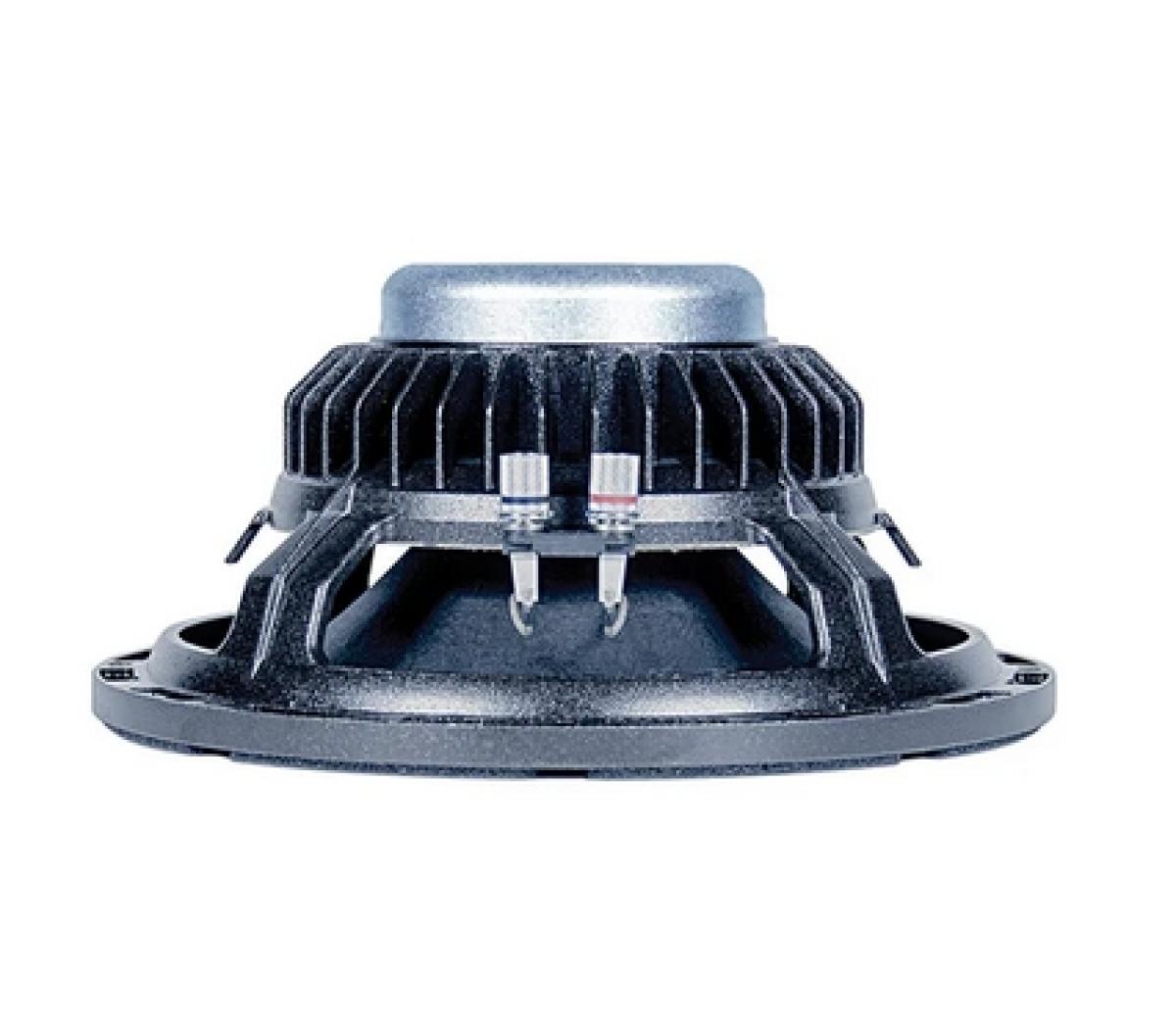

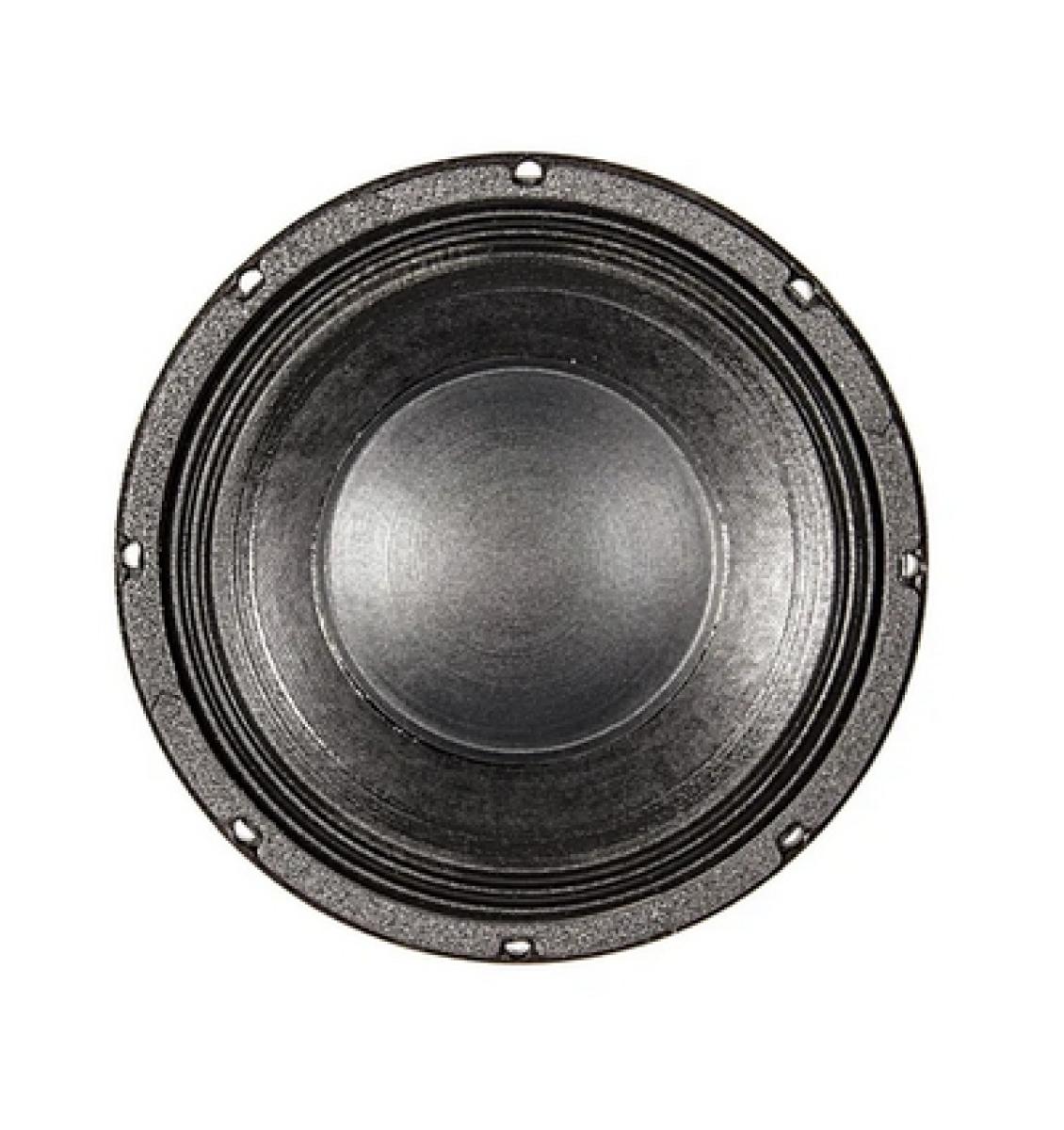

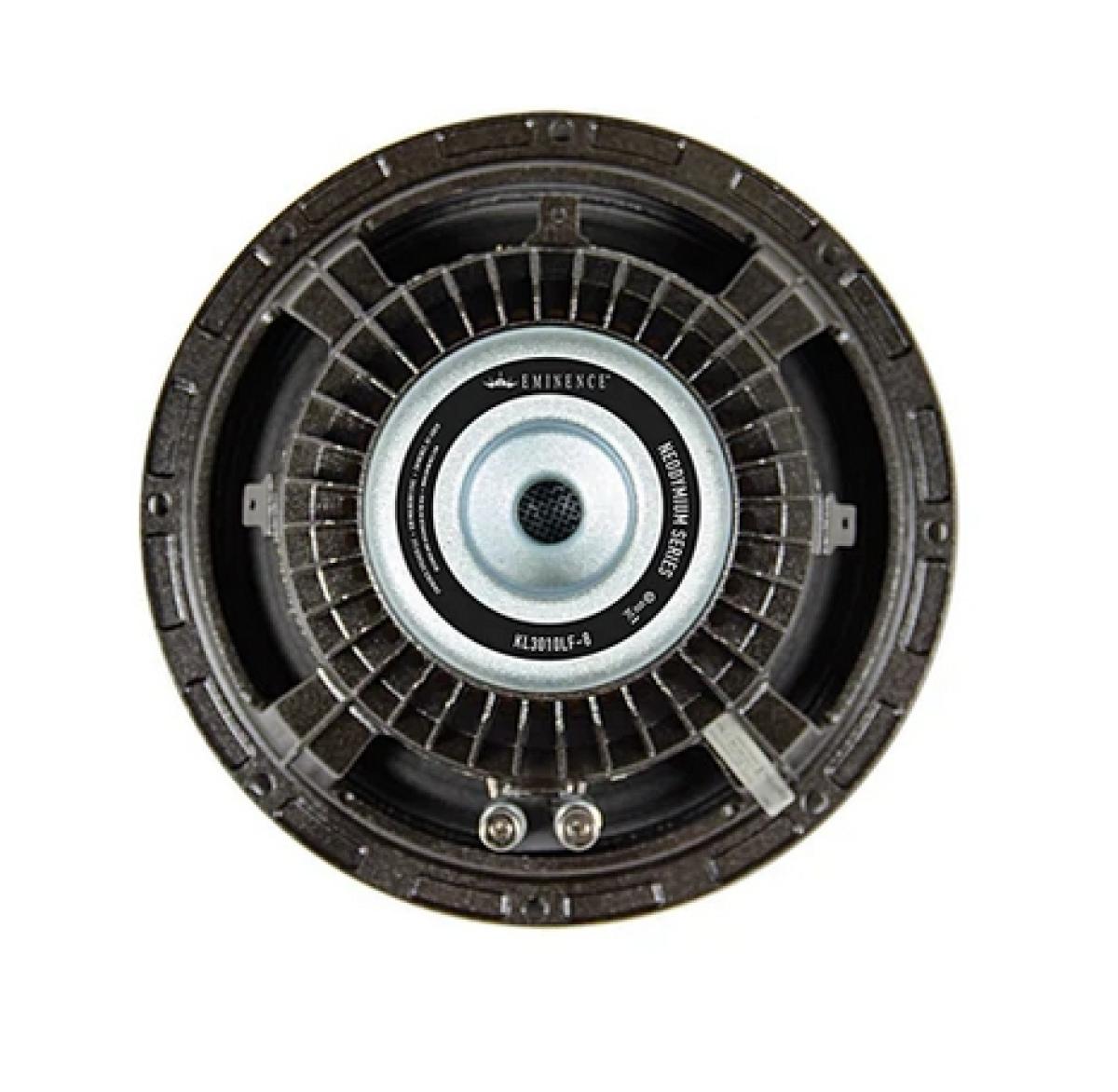

Eminence Kappalite 3010 LF - 10" Lautsprecher 450 W 8 Ohm

Specifications

* Nominal Basket Diameter 10", 254 mm
* Nominal Impedance 8 ohms
* Power Rating Watts 450 W Music Program 900 W
* Resonance 38.67 Hz
* Usable Frequency Range 42 Hz - 1.6 kHz
* Sensitivity 92.7
* Magnet Weight 11 oz.
* Gap Height 0.36", 9.27 mm
* Voice Coil Diameter 3", 76.2 mm

Thiele & Small Parameters

* Resonant Frequency (fs) 38.67Hz
* DC Resistance (Re) 7.2
* Coil Inductance (Le) 1.13 mH
* Mechanical Q (Qms) 11.75
* Electromagnetic Q (Qes) 0.28
* Total Q (Qts) 0.27
* Compliance Equivalent Volume (Vas) 62.41 liters / 2.2 cu.ft.
* Peak Diaphragm Displacement Volume (Vd) 305.4cc
* Mechanical Compliance of Suspension (Cms) 0.35 mm/N
* BL Product (BL) 17.45 T-M
* Diaphram Mass inc. Airload (Mms) 48.72 grams
* Efficiency Bandwidth Product (EBP) 138.17
* Maximum Linear Excursion (Xmax) 8.52 mm
* Surface Area of Cone (Sd) 358.4 cm²
* Maximum Mechanical Limit (Xlim) 15.7 mm

Mounting Information

* Recommended Enclosure
* Sealed N/A
* Vented 19.82-84.95 liters/0.70-3.00 cu.ft.
* Overall Diameter 11.18", 283.97 mm
* Baffle Hole Diameter 9.12", 231.65 mm
* Front Sealing Gasket fitted as standard
* Rear Sealing Gasket fitted as standard
* Mounting Holes Diameter 0.29", 7.37 mm
* Mounting Holes B.C. D. 10.49", 266.5 mm
* Depth 5.00", 127.00 mm
