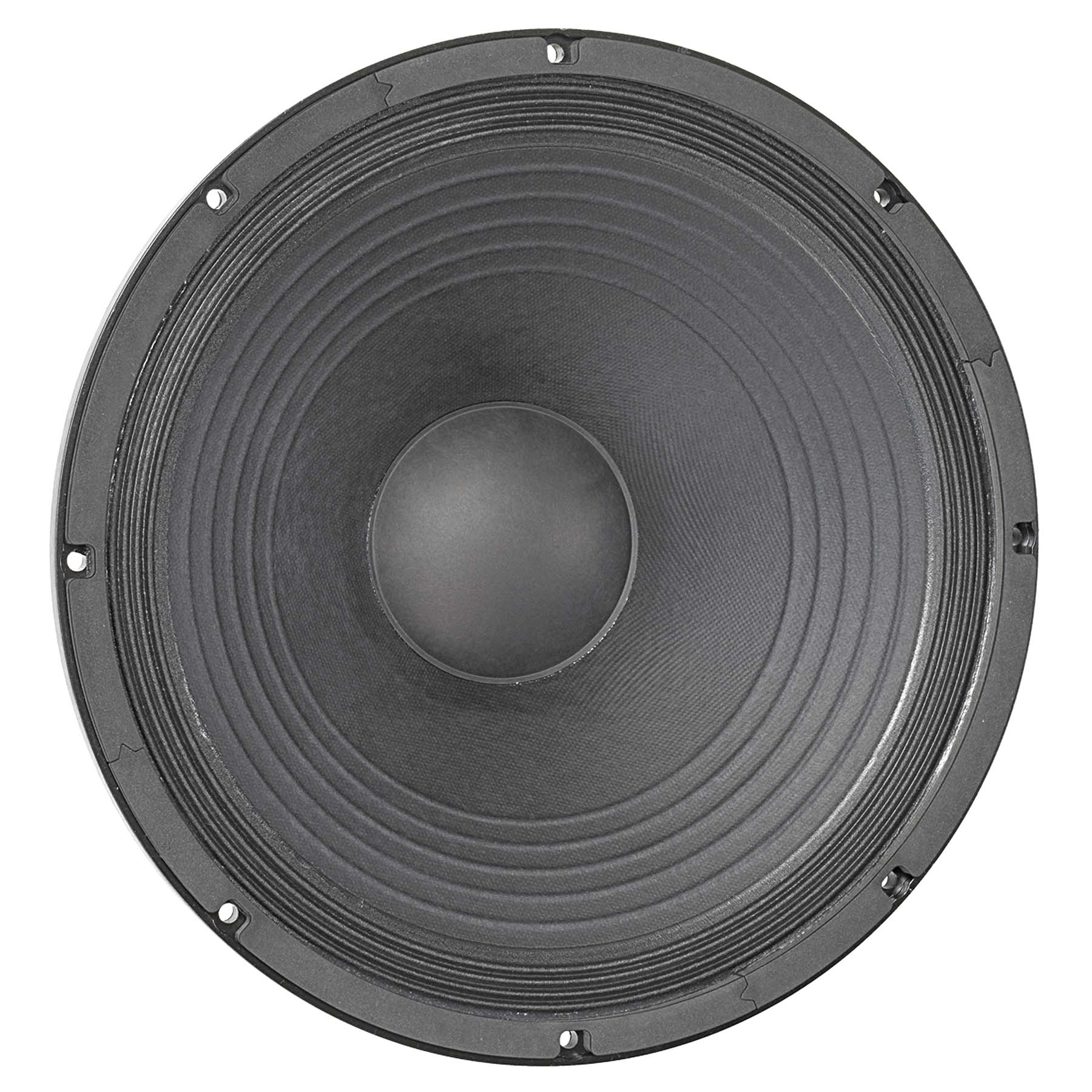

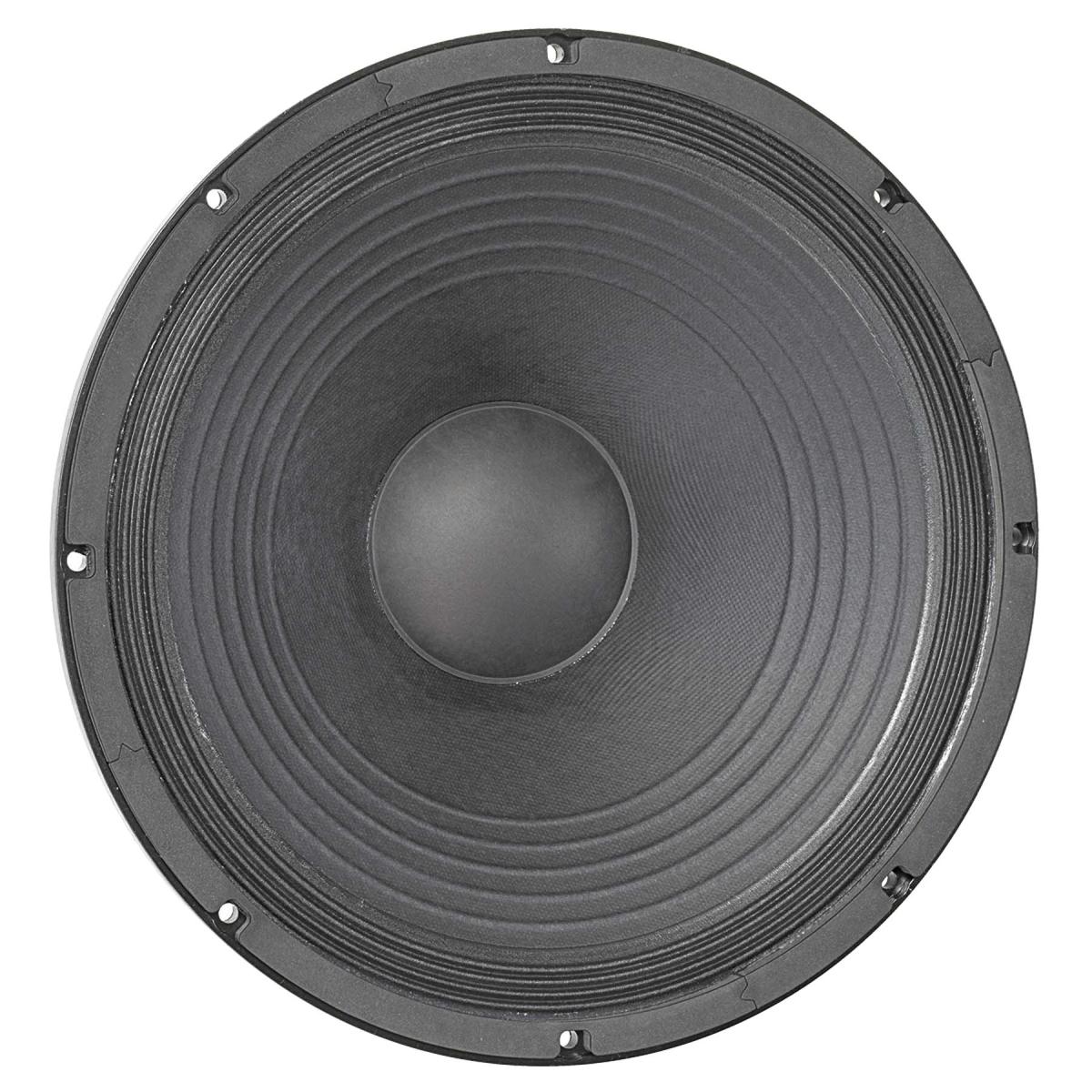

Eminence KAPPA PRO-15LF-2 Professional Series
Empfohlen für professional audio in Bassreflex-Gehäuse
SPECIFICATION
* Nominal Basket Diameter 15", 381mm
* Nominal Impedance* 8 ohms
* Power Rating** Watts 600W / Music Program 1200W
* Resonance 35Hz
* Usable Frequency Range*** 38Hz-1.8kHz
* Sensitivity 97.8
* Gap Height 0.375", 9.53mm
* Voice Coil Diameter 3", 76.2mm
THIELE & Small Parameters
* Resonant Frequency (fs) 35Hz
* DC Resistance (Re) 6.12
* Coil Inductance (Le) 1.00mH
* Mechanical Q (Qms) 9.57
* Electromagnetic Q (Qes) 0.32
* Total Q (Qts) 0.31
* Compliance Equivalent Volume (Vas) 172.5 liter
* Peak Diaphragm Displacement Volume 507cc
* Mechanical Compliance of Suspension (Cms) 0.21mm/N
* BL Product (BL) 20.4 T-M
* Diaphragm Mass inc. Airload (Mms) 100 grams
* Efficiency Bandwidth Product (EBP) 109
* Maximum Linear Excursion (Xmax) 6.7mm
* Surface Area of Cone (Sd) 760.0 cm2
* Maximum Mechanical Limit (Xlim) 18.0mm
MOUNTING Information
* empfohlenes Gehäusevolumen ventiliert: 76.5-164 liter
* Overall Diameter 15.21", 386.4mm
* Baffle Hole Diameter 14.0", 355.5mm
* Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.9mm
* Depth 6.57", 167mm
* Net Weight 10.1 kg
* Shipping Weight 11.3 kg
MATERIALS of Construction
* Copper voice coil
* Polyimide former
* Ferrite magnet
* Vented and extended core
* Die-cast aluminum basket
* Paper Cone
* Cloth cone edge
* Solid composition paper dust cap
