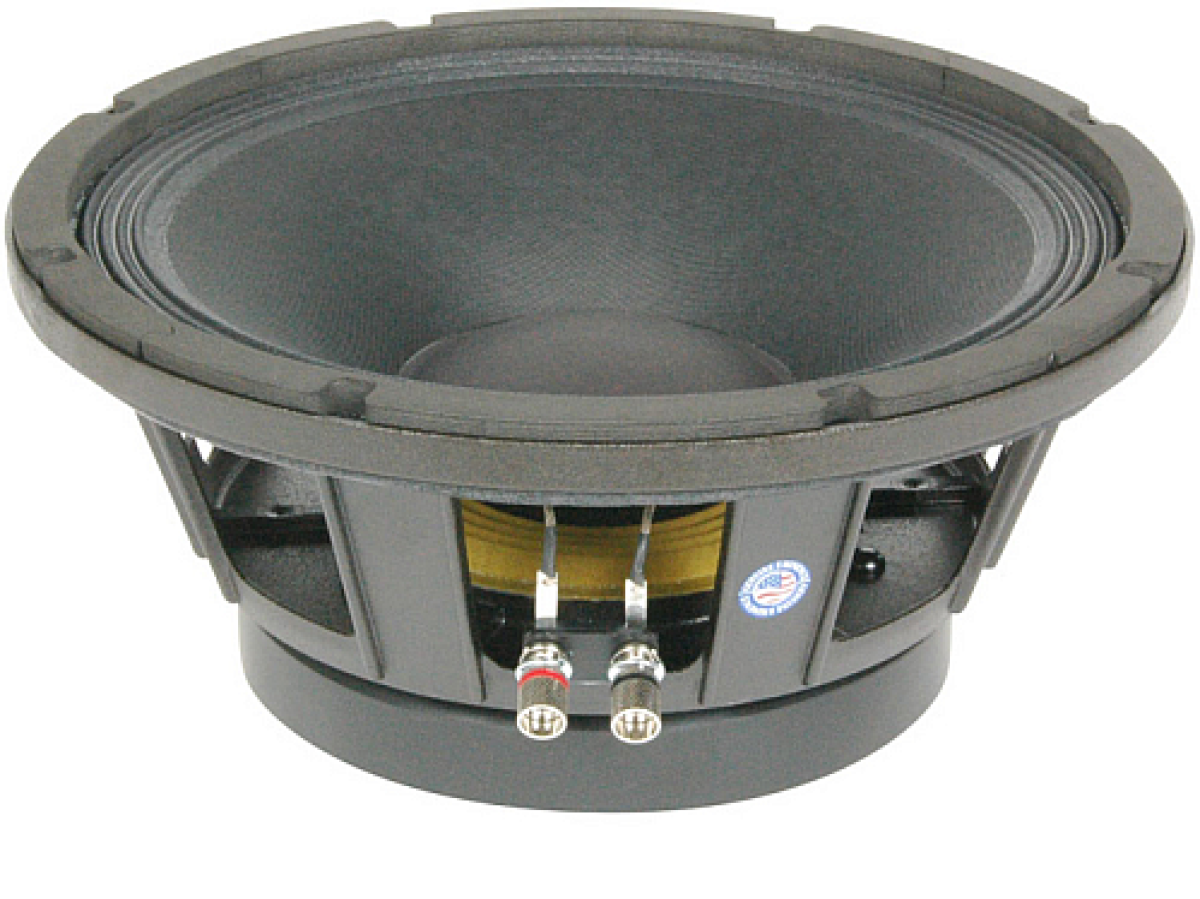

Eminence Kappa Pro-12A

Eminence KAPPA PRO-12A Professional Series

Empfohlen für professional audio in Bassreflex-Gehäusen

SPECIFICATION
Nominal Basket Diameter : 12", 304.8mm
Nominal Impedance : 8 ohms
Power Rating : 500W / Music Program 1000W
Resonance : 37Hz
Usable Frequency Range : 57Hz-2.8kHz
Sensitivity : 97.1
Voice Coil Diameter : 3", 76.2mm

THIELE & Small Parameters

Resonant Frequency (fs) : 37Hz
DC Resistance (Re) : 5.46
Coil Inductance (Le) : 1.22mH
Mechanical Q (Qms) : 6.93
Electromagnetic Q (Qes) : 0.25
Total Q (Qts) : 0.24
Compliance Equivalent Volume (Vas) : 121.0 liters
Peak Diaphragm Displacement Volume : 249cc
Mechanical Compliance of Suspension : 0.32mm/N
BL Product (BL) : 17.3 T-M
Diaphragm Mass inc. Airload (Mms) : 59 grams
Efficiency Bandwidth Product (EBP) : 148
Maximum Linear Excursion (Xmax) : 4.8mm
Surface Area of Cone (Sd) : 519.5 cm²
Maximum Mechanical Limit (Xlim) : 14.8mm
