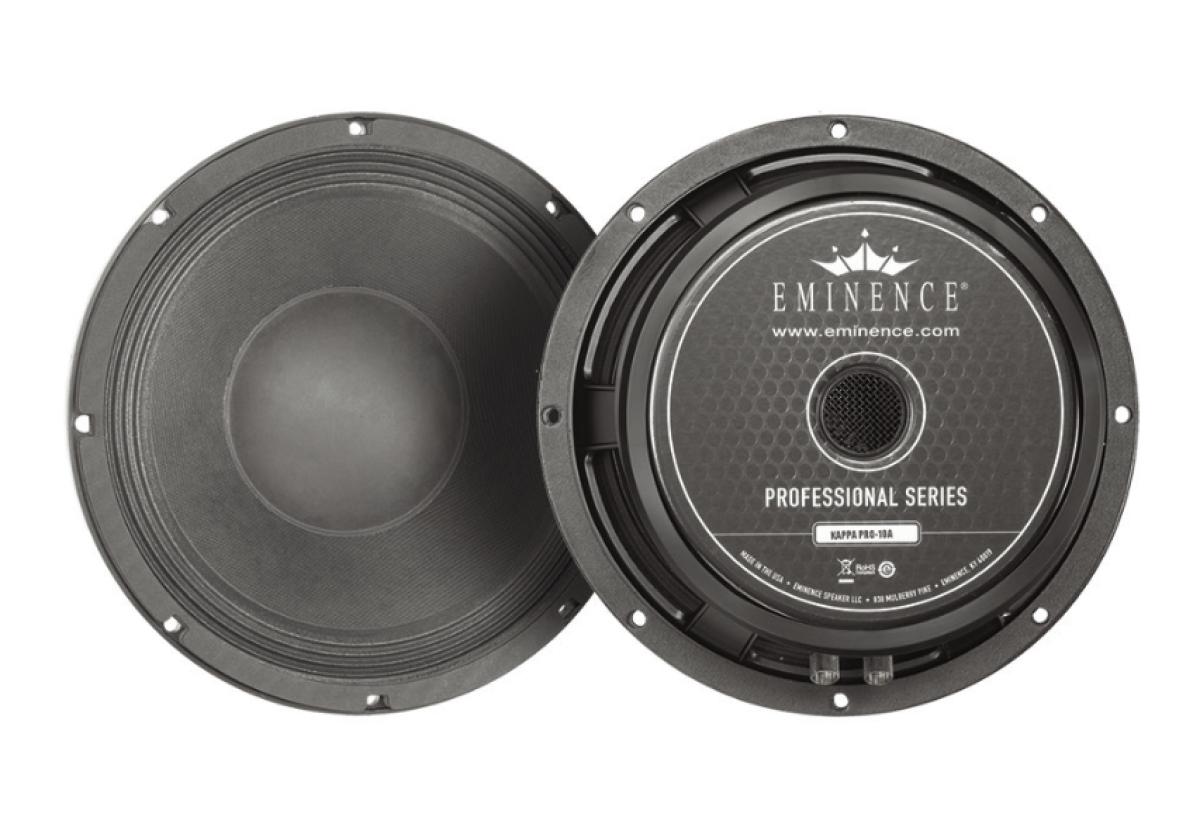

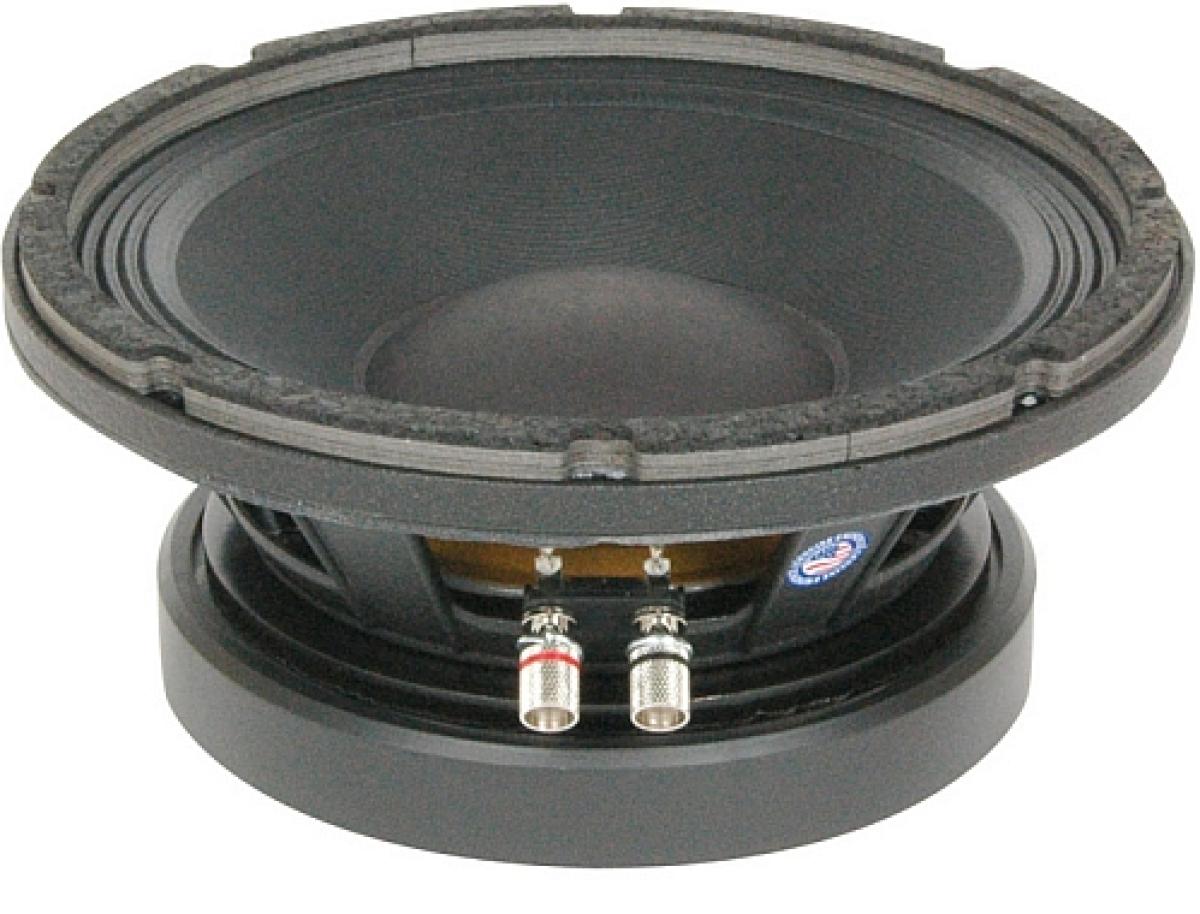

Eminence KAPPA PRO-10A Professional Series
Empfohlen für professional audio in geschlossenen, oder Bassreflex-Gehäusen. Auch für Bassgitarre geeignet.
SPECIFICATION
Nominal Basket Diameter : 10", 254mm
Nominal Impedance : 8 ohms
Power Rating : 500W / Music Program 1000W
Resonance : 46Hz
Usable Frequency Range : 102Hz-2kHz
Sensitivity : 97
Voice Coil Diameter : 3", 76.2mm
THIELE & Small Parameters
Resonant Frequency (fs) : 46Hz
DC Resistance (Re) : 6.50
Coil Inductance (Le) : 1.15mH
Mechanical Q (Qms) : 10.10
Electromagnetic Q (Qes) : 0.20
Total Q (Qts) : 0.20
Compliance Equivalent Volume (Vas) : 52.2 liters
Peak Diaphragm Displacement Volume : 110cc
Mechanical Compliance of Suspension (Cms) : 0.31mm/N
BL Product (BL) : 18.8 T-M
Diaphragm Mass inc. Airload (Mms) : 38 grams
Efficiency Bandwidth Product (EBP) : 230
Maximum Linear Excursion (Xmax) : 3.2mm
Surface Area of Cone (Sd) : 344.9 cm2
Maximum Mechanical Limit (Xlim) : 10.9mm
