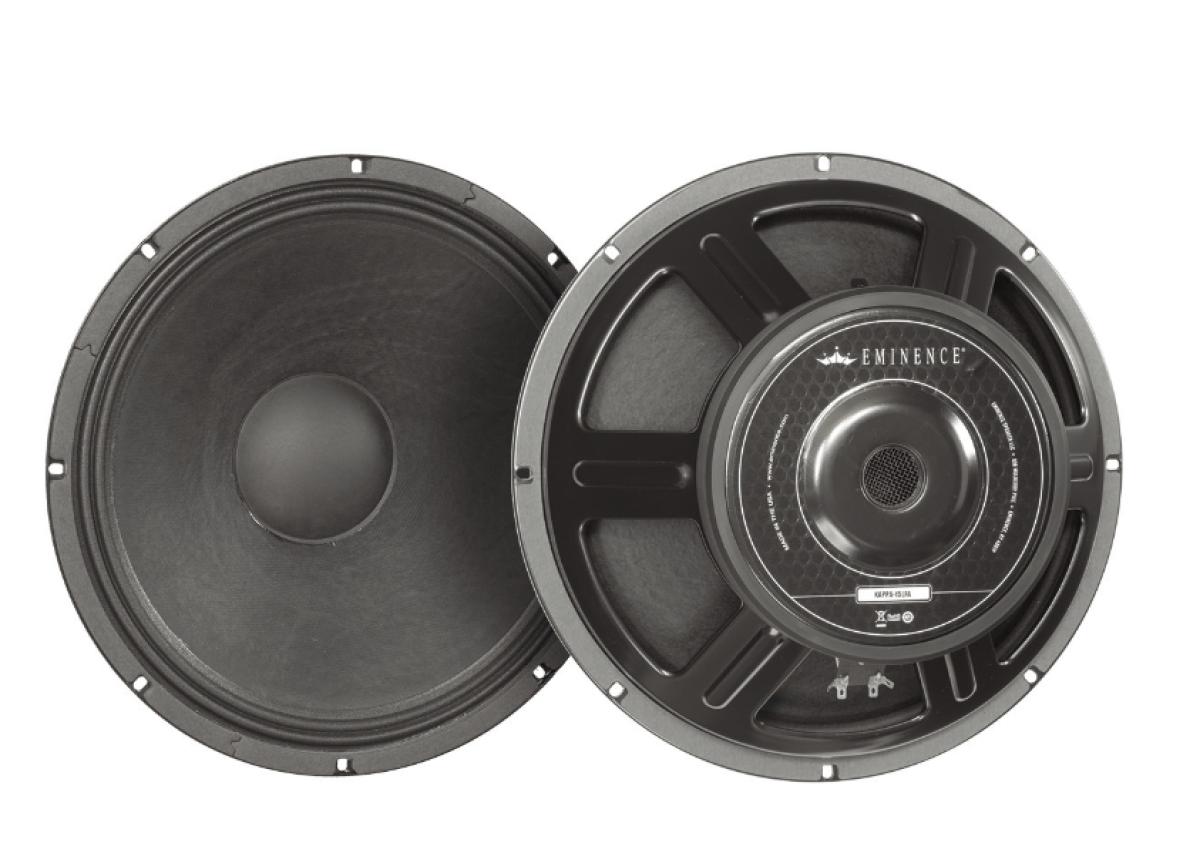

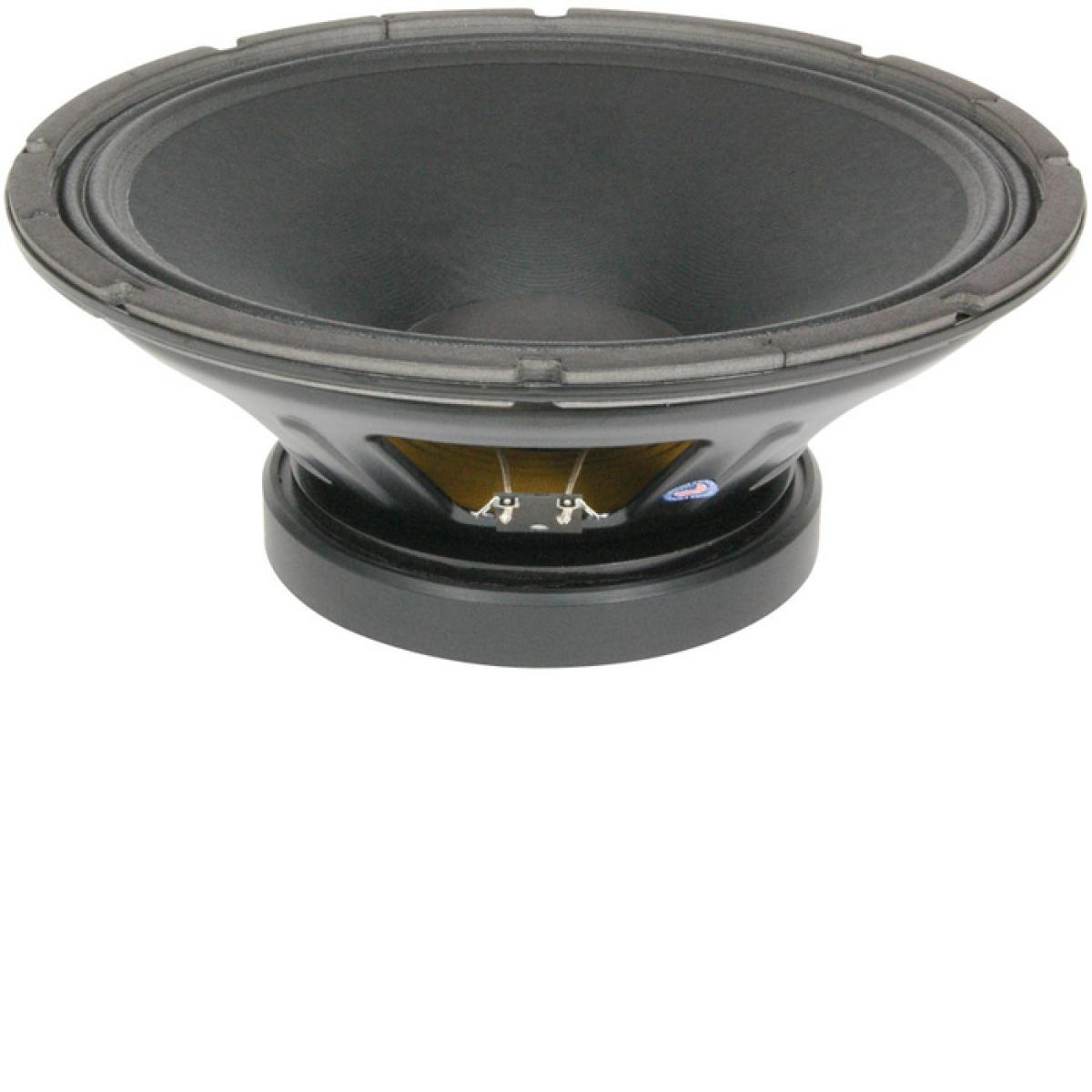

Eminence Kappa 15LFA - 15" Subwoofer, 8 Ohm

Eminence Kappa 15LFA - 15" Subwoofer, 600 Watt

•  Durchmesser: 15", 381mm
•  Impedanz: 8 ohms
•  Belastbarkeit: RMS 600W / Program 1200W
•  Resonanzfrequenz: 39Hz
•  nutzbarer Frequenzbereich: 38Hz-2.7kHz
•  Sensitivity: 99
•  Voice Coil: 3", 76.2mm

•  Resonant Frequency (fs): 39Hz
•  DC Resistance (Re): 5.4
•  Coil Inductance (Le): 1.27mH
•  Mechanical Q (Qms): 6.08
•  Electromagnetic Q (Qes): 0.41
•  Total Q (Qts): 0.38
•  Compliance Equivalent Volume (Vas): 159.0 liter
•  Peak Diaphragm Displacement Volume (Vd): 471cc
•  Mechanical Compliance of Suspension (Cms): 0.15mm/N
•  BL Product (BL): 18.6 T-M
•  Diaphragm Mass inc. Airload (Mms): 105 grams
•  Efficiency Bandwidth Product (EBP): 95
•  Maximum Linear Excursion (Xmax): 5.5mm
•  Surface Area of Cone (Sd): 856.3 cm2
•  Maximum Mechanical Limit (Xlim): 10.4mm
