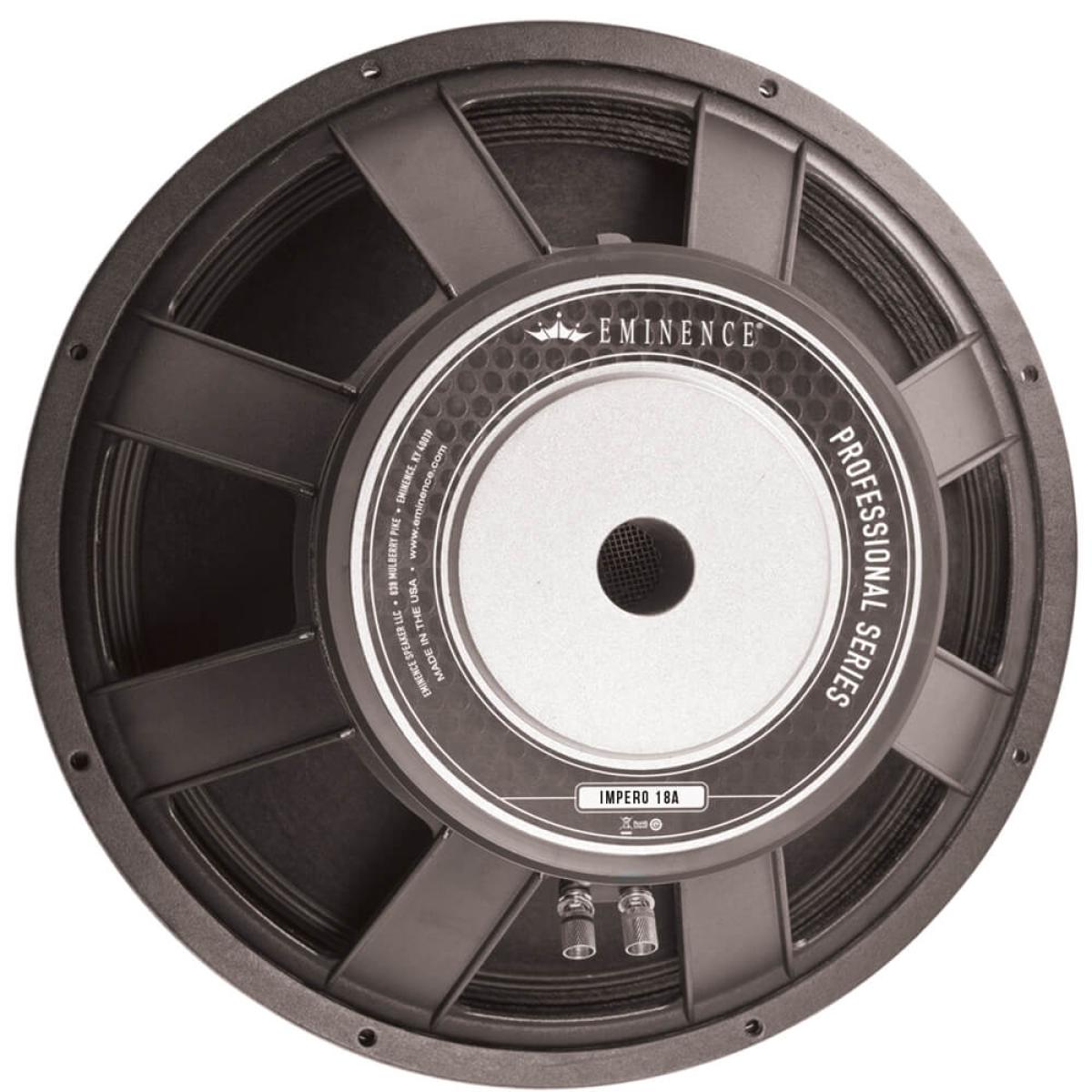

Eminence Impero-18A - 18" Subwoofer, 1200W - 8Ohm
Eminence Impero-18A - 18" Subwoofer, 1200W - 8Ohm
SPECIFICATION
SPECIFICATION
- Nominal Basket Diameter 18", 457.2 mm
- Nominal Impedance 8 ohms
- Power Rating Watts 1200 W / Music Program 2400 W
- Resonance 33.17 Hz
- Usable Frequency Range 39 Hz - 0.82 kHz
- Sensitivity 95.9 dB
- Magnet Weight 109 oz
- Gap Height 0.5", 12.7 mm
- Voice Coil Diameter 4", 101.6 mm
- Resonant Frequency (fs) 33.17 Hz
- DC Resistance (Re) 5.41
- Coil Inductance (Le) 1.47 mH
- Mechanical Q (Qms) 14.02
- Electromagnetic Q (Qes) 0.44
- Total Q (Qts) 0.43
- Compliance Equivalent Volume (Vas) 317.02 liters / 11.19 cu.ft.
- Peak Diaphragm Displacement Volume 927.2 cc
- Mechanical Compliance of Suspension 0.17 mm/N
- BL Product (BL) 19.9 T-M
- Diaphragm Mass inc. Airload (Mms) 139.52 grams
- Efficiency Bandwidth Product (EBP) 75.37
- Maximum Linear Excursion (Xmax) 8 mm
- Surface Area of Cone (Sd) 1159 cm²
- Maximum Mechanical Limit (Xlim) 20.1 mm
- empfohlenes Gehäusevolumen 113.2 - 277.5 liter Bassreflex
- Overall Diameter 18", 457.2 mm
- Baffle Hole Diameter 16.56", 420.62 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter 0.29", 7.36 mm
- Mounting Holes B.C.D. 17.25", 438.15 mm
- Depth 8.31", 211.07 mm
