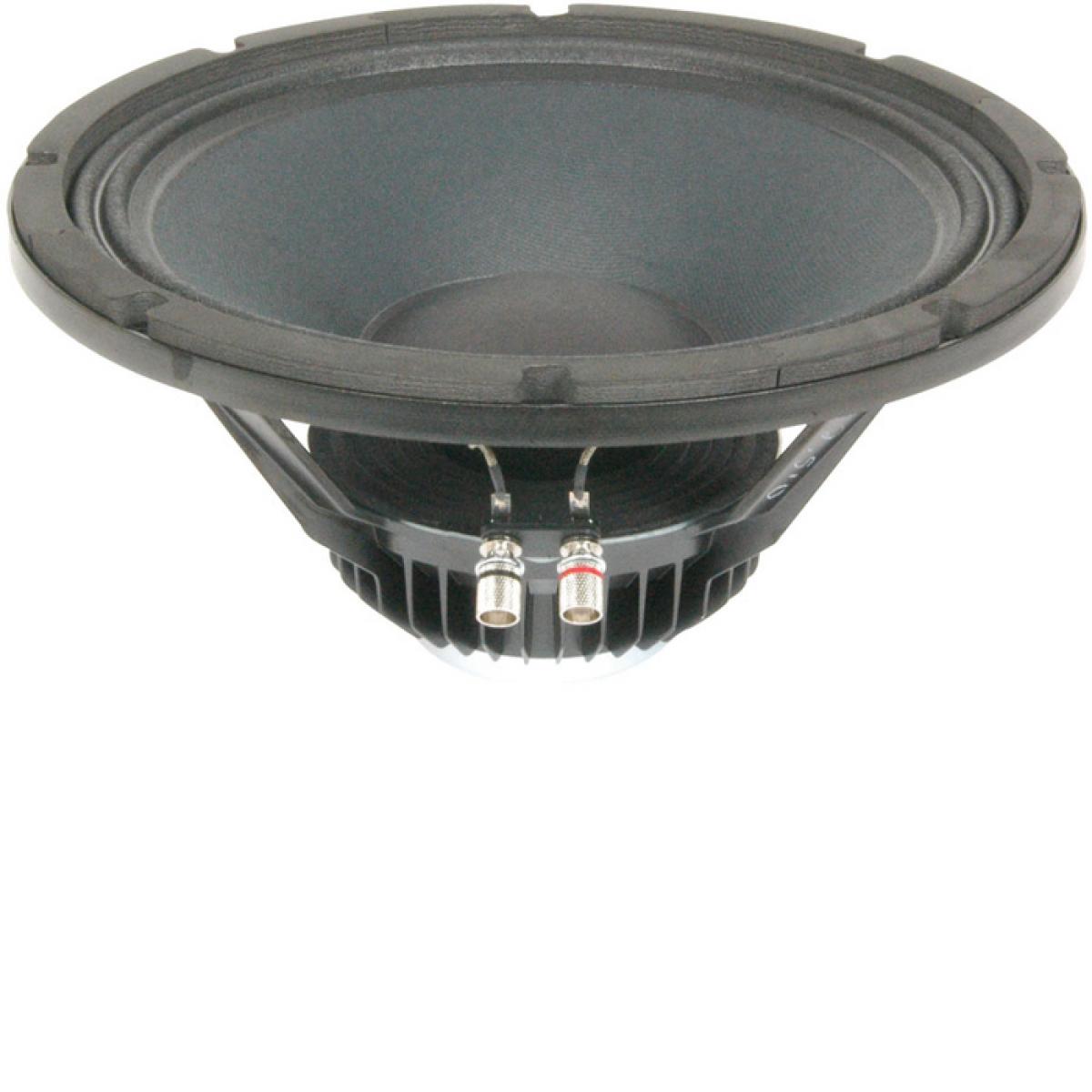

Eminence DELTALITE II 2512 - 12" Woofer, 8 ohm

Eminence DELTALITE II 2512 - 12" Woofer, 8 ohm

Recommended for professional audio as a mid/hi or full-range and monitor; also for bass guitar. Works well in sealed or vented enclosures.

SPECIFICATION

• Nominal Basket Diameter 12", 304.8mm
• Nominal Impedance* 8 ohms
• Power Rating** Watts 250W / Music Program 500W
• Resonance 37Hz
• Usable Frequency Range*** 48Hz-4kHz
• Sensitivity 99.9
• Magnet Weight 7 oz
• Gap Height 0.275", 7mm
• Voice Coil Diameter 2.5", 63.5mm

THIELE & Small Parameters

• Resonant Frequency (fs) 37Hz
• DC Resistance (Re) 5.04
• Coil Inductance (Le) 0.46mH
• Mechanical Q (Qms) 3.13
• Electromagnetic Q (Qes) 0.44
• Total Q (Qts) 0.39
• Compliance Equivalent Volume (Vas) 147 liters / 5.2 cu. ft.
• Peak Diaphragm Displacement Volume 255cc
• Mechanical Compliance of Suspension (Cms) 0.38mm/N
• BL Product (BL) 11.3 T-M
• Diaphragm Mass inc. Airload (Mms) 49 grams
• Efficiency Bandwidth Product (EBP) 84
• Maximum Linear Excursion (Xmax) 4.9mm
• Surface Area of Cone (Sd) 519.5 cm2
• Maximum Mechanical Limit (Xlim) 8.5mm

MOUNTING Information

• empfohlen für geschlossene Gehäuse mit 23 bis 28 Liter Volumen oder Bassreflex Gehäuse mit 33 bis 85 Liter Volumen
• Overall Diameter 12.38", 314.5mm
• Baffle Hole Diameter 11.06", 280.9mm
• Front Sealing Gasket fitted as standard
• Rear Sealing Gasket fitted as standard
• Mounting Holes Diameter 0.28", 7mm
• Mounting Holes B.C.D. 11.62", 295.1mm
• Depth 6.06", 154mm
• Net Weight 5.1 lbs., 2.3 kg
• Shipping Weight 6.8 lbs., 3.1 kg

MATERIALS of Construction

• Polyimide former
• Neodymium magnet
• Vented core
• Die-cast aluminum basket/ heatsink
• Paper Cone
• Cloth cone edge
• Solid composition paper dust cap
• Aluminum voice coil
