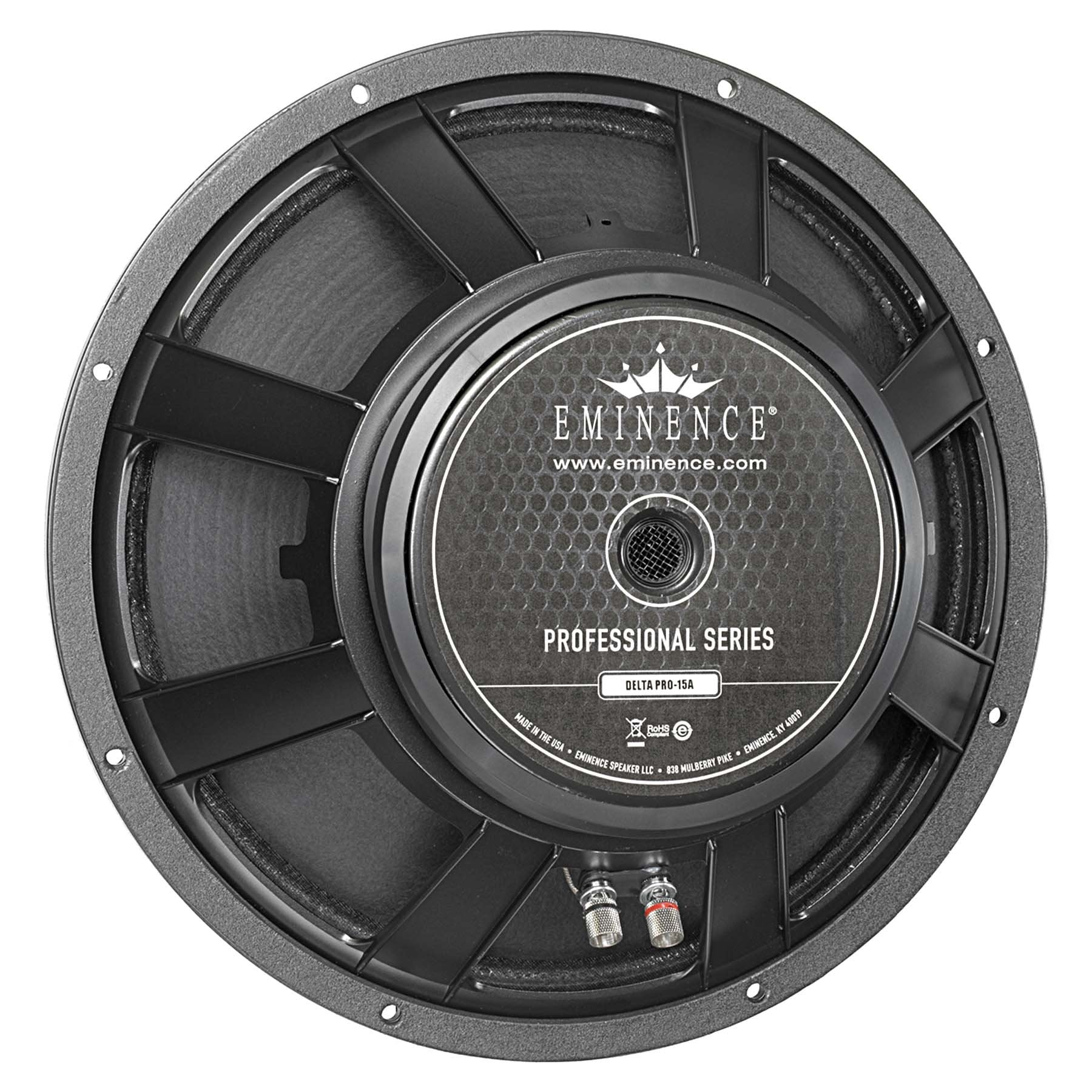

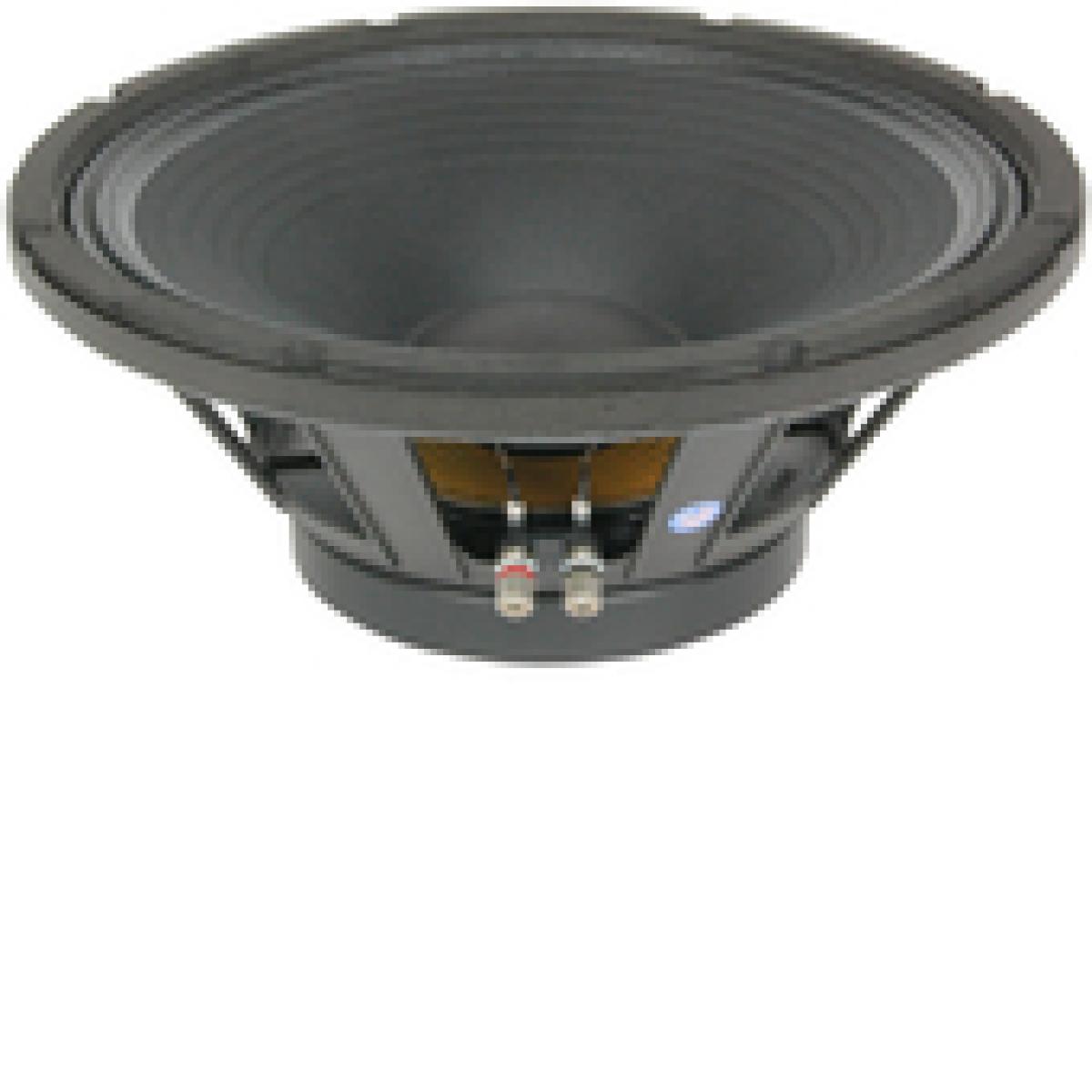

Eminence DELTA PRO-15A, 15" Woofer, 8 ohm

Eminence DELTA PRO-15A, 15" Subwoofer, 8 ohm

Recommended for professional audio in both sealed and vented enclosures.Ideal for full-range, mid/hi, and monitor wedges.

SPECIFICATION

Nominal Basket Diameter 15", 381mm
Nominal Impedance* 8 ohms
Power Rating** Watts 400W / Music Program 800W
Resonance 42Hz
Usable Frequency Range*** 54Hz-4.2kHz
Sensitivity 101.6
Magnet Weight 80oz.
Gap Height 0.375", 9.53mm
Voice Coil Diameter 2.5", 63.5mm

THIELE & Small Parameters

• Resonant Frequency (fs) 42Hz
• DC Resistance (Re) 5.71
• Coil Inductance (Le) 0.83mH
• Mechanical Q (Qms) 4.73
• Electromagnetic Q (Qes) 0.44
• Total Q (Qts) 0.40
• Compliance Equivalent Volume (Vas) 243.5 liter
• Peak Diaphragm Displacement Volume 368cc
• Mechanical Compliance of Suspension (Cms) 0.24mm/N
• BL Product (BL) 14.5 T-M
• Diaphragm Mass inc. Airload (Mms) 61 grams
• Efficiency Bandwidth Product (EBP) 95
• Maximum Linear Excursion (Xmax) 4.3mm
• Surface Area of Cone (Sd) 856.3 cm2
• Maximum Mechanical Limit (Xlim) 13.7mm

MOUNTING Information

• empfohlenes Gehäusevolumen: 28-42.5 liter (geschlossen), 57-133 liter (Bassreflex)
• Overall Diameter 15.32", 389mm
• Baffle Hole Diameter 14.0", 356mm
• Front Sealing Gasket fitted as standard
• Rear Sealing Gasket fitted as standard
• Mounting Holes Diameter 0.28", 7.1mm
• Mounting Holes B.C.D. 14.56", 369.9mm
• Depth 6.06", 154mm
• Net Weight 16.6 lbs., 7.5 kg
• Shipping Weight 19.1 lbs., 8.7 kg

MATERIALS of Construction

• Aluminum voice coil
• Polyimide former
• Ferrite magnet
• Vented and extended core
• Die-cast aluminum basket
• Paper Cone
• Cloth cone edge
• Solid composition paper dust cap
