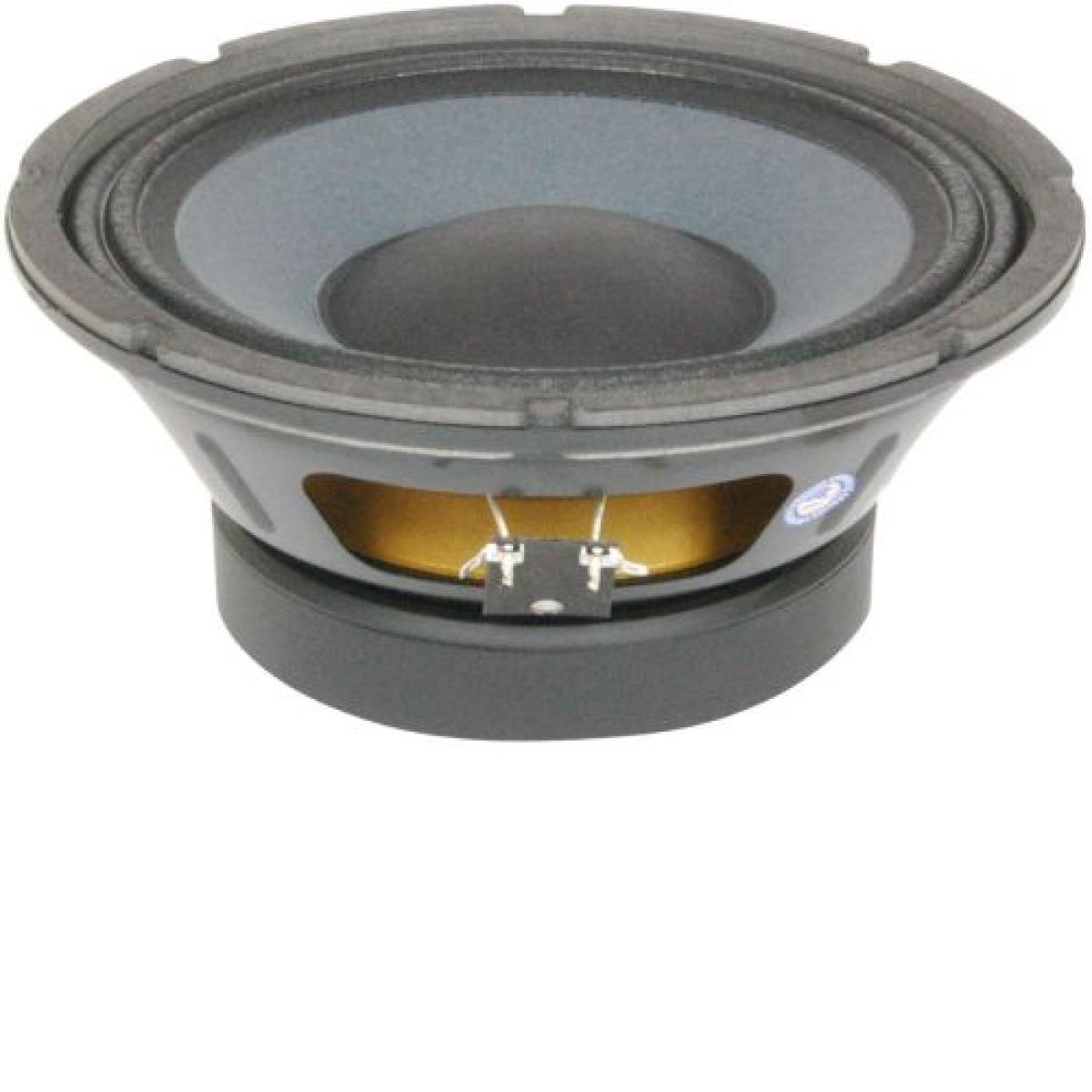

Eminence Delta 10B - 10" Lautsprecher 350 W/16 Ohm

Eminence Delta 10B - 10" Lautsprecher 350 W/16 Ohm

Recommended for professional audio and bass guitar applications as a woofer/mid-bass or mid-range in ventedmonitors, satellites and multi-way enclosures.

SPECIFICATION * Nominal Basket Diameter 10", 254 mm * Nominal Impedance 16 ohms * Power Rating Watts 350 W / Music Program 700 W * Resonance 66 Hz * Usable Frequency Range 63 Hz - 3.7 kHz * Sensitivity 98.8 * Magnet Weight 56 oz. * Gap Height 0.375", 9.53 mm * Voice Coil Diameter 2.5", 63.5 mm
THIELE & Small Parameters * Resonant Frequency (fs) 66 Hz * DC Resistance (Re) 5.42 * Coil Inductance (Le) 0.74 mH * Mechanical Q (Qms) 6.53 * Electromagnetic Q (Qes) 0.35 * Total Q (Qts) 0.33 * Compliance Equivalent Volume (Vas) 30.5 liters / 1.1 cu. ft. * Peak Diaphragm Displacement Volume (Vd) 121 cc * Mechanical Compliance of Suspension (Cms) 0.18 mm/N * BL Product (BL) 14.4 T-M * Diaphragm Mass inc. Airload (Mms) 32 grams * Efficiency Bandwidth Product(EBP) 189 * Maximum Linear Excursion (Xmax) 3.5 mm * Surface Area of Cone (Sd) 344.9 cm² * Maximum Mechanical Limit (Xlim) 9.4 mm
MOUNTING Information * Recommended Enclosure Volume Sealed N/A Vented 12.7-37.9 liters/0.45-1.34 cu. ft. * Overall Diameter 10.09", 256.2 mm * Baffle Hole Diameter 9.05", 229.7 mm * Front Sealing Gasket fitted as standard * Rear Sealing Gasket fitted as standard * Mounting Holes Diameter 0.25", 6.4 mm * Mounting Holes B.C.D. 9.66", 245.4 mm * Depth 4.25", 108 mm
MATERIALS of Construction * Aluminum voice coil * Polyimide former * Ferrite magnet * Vented core * Pressed steel basket * Paper Cone * Cloth cone edge * Solid composition paper dust cap
