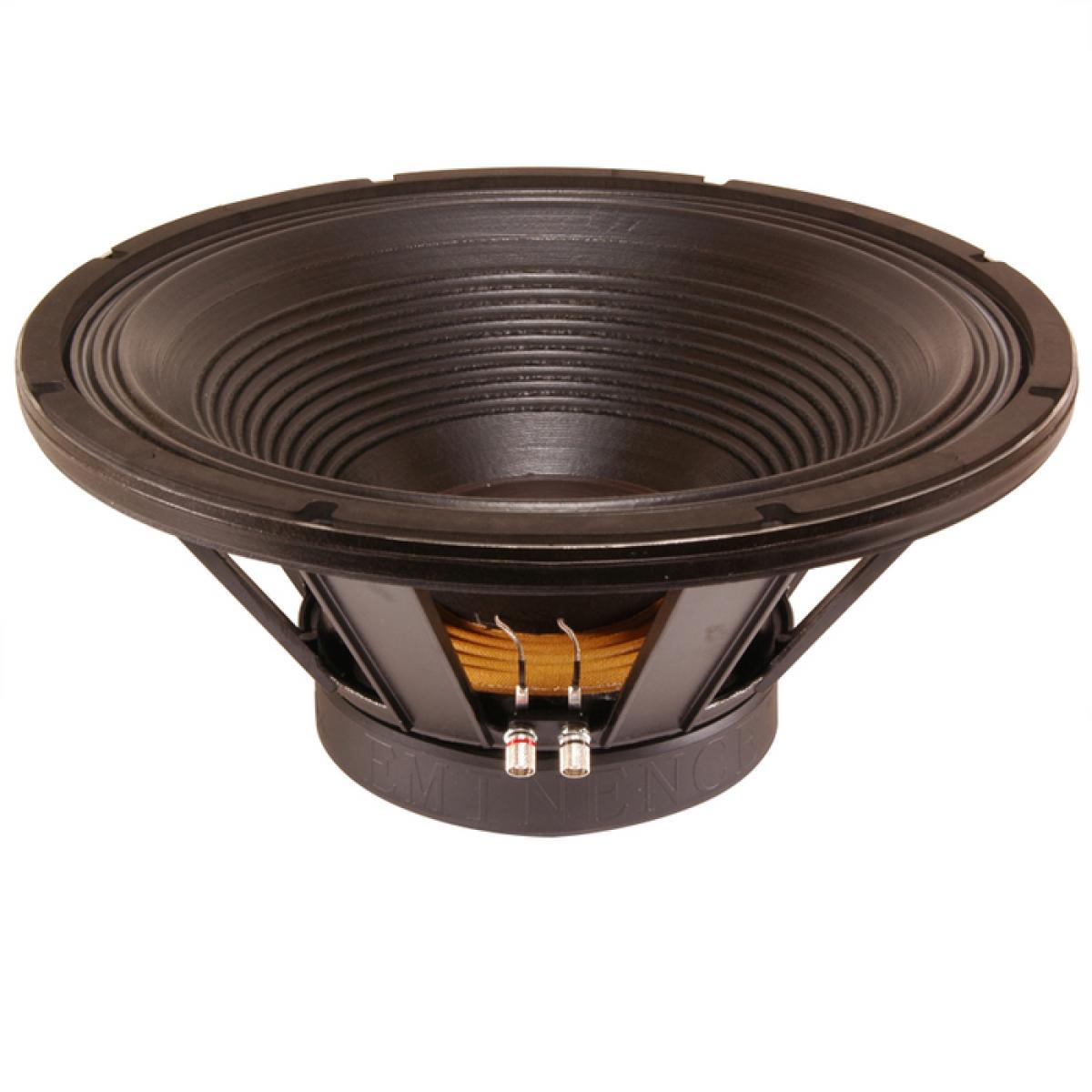

Eminence Definimax 4018 LF - 18" Subwoofer, 8 Ohm, 800 Watt

Eminence Definimax 4018 LF - 18" Subwoofer, 8 Ohm, 800 Watt

SPECIFICATION

* Durchmesser: 18", 457.2mm
* Impedanz: 8 ohms
* Belastbarkeit: 800W / Programm 1600W
* Resonanzfrequenz: 32Hz
* nutzbarer Frequenzbereich: 36Hz-
* Sensitivity: 95
* Voice Coil: 4", 101.6mm

THIELE & Small Parameters

* Resonant Frequency (fs): 32Hz
* DC Resistance (Re): 6.19
* Coil Inductance (Le): 4.78mH
* Mechanical Q (Qms): 10.38
* Electromagnetic Q (Qes): 0.36
* Total Q (Qts): 0.35
* Compliance Equivalent Volume (Vas): 237.9 liter
* Mechanical Compliance of Suspension (Cms): 0.12mm/N
* BL Product (BL): 27.0
* Diaphragm Mass inc. Airload (Mms): 211 Gramm
* Efficiency Bandwidth Product (EBP): 89
* Maximum Linear Excursion (Xmax): 7.9mm
* Surface Area of Cone (Sd): 1188.0 cm2
* Maximum Mechanical Limit (Xlim): 15.9mm


Datenblatt
