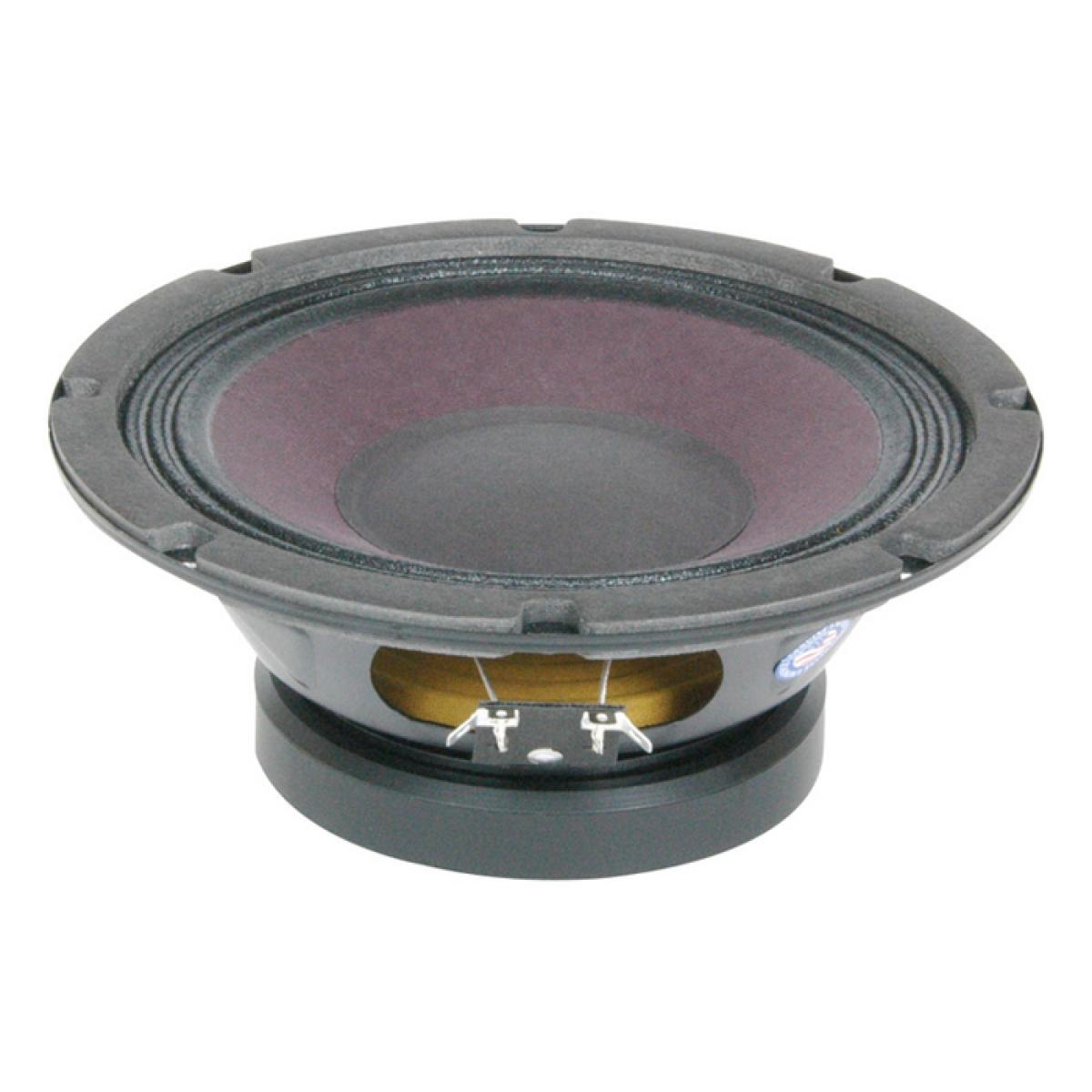

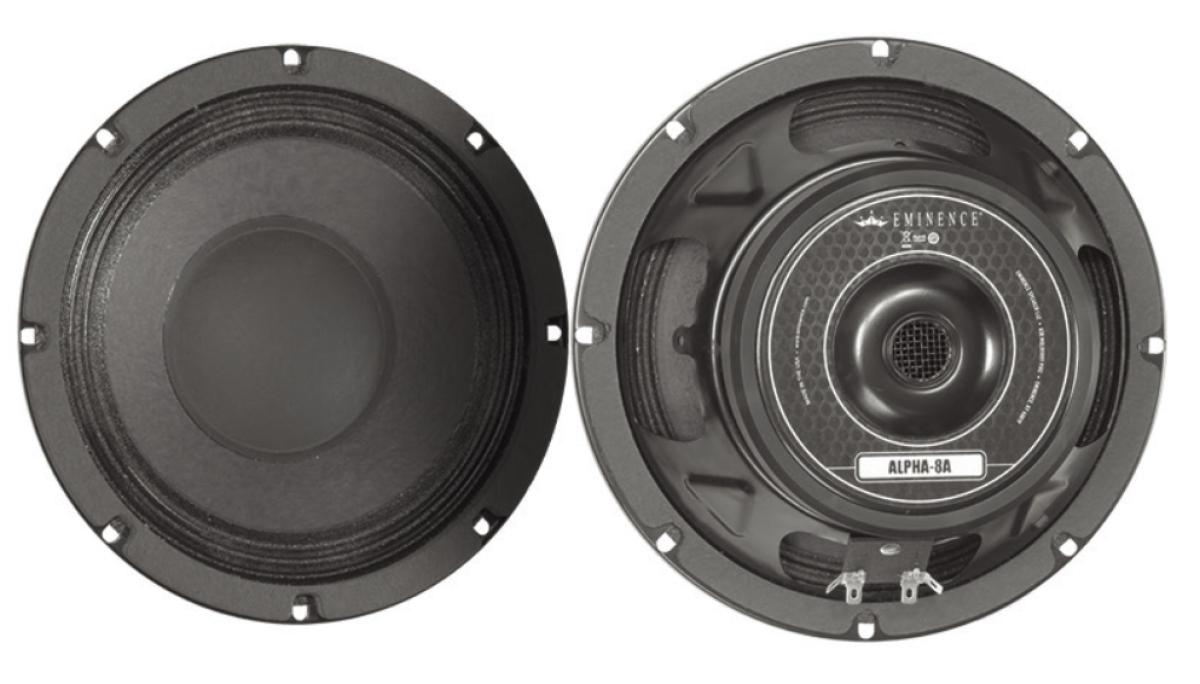

Eminence Alpha 8A - 8" Lautsprecher, 8 Ohm

Eminence Alpha 8A - 8" Lautsprecher, 8 Ohm

Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.

SPECIFICATION

• Nominal Basket Diameter 8", 203.2 mm
• Nominal Impedance 8 ohms
• Power Rating Watts 125 W / Music Program 250 W
• Resonance 73 Hz
• Usable Frequency Range 58 Hz - 5 kHz
• Sensitivity 94
• Magnet Weight 20 oz.
• Gap Height 0.25", 6.35 mm
• Voice Coil Diameter 1.5", 38.1 mm

THIELE & Small Parameters

• Resonant Frequency (fs) 73 Hz
• DC Resistance (Re) 5.3
• Coil Inductance (Le) 0.44 mH
• Mechanical Q (Qms) 4.6
• Electromagnetic Q (Qes) 0.68
• Total Q (Qts) 0.59
• Compliance Equivalent Volume (Vas) 17.7 liters / 0.6 cu. ft.
• Peak Diaphragm Displacement Volume (Vd) 67 cc
• Mechanical Compliance of Suspension (Cms) 0.28 mm/N
• BL Product (BL) 7.8 T-M
• Diaphragm Mass inc. Airload (Mms) 17 grams
• Efficiency Bandwidth Product (EBP) 107
• Maximum Linear Excursion (Xmax) 3.2 mm
• Surface Area of Cone (Sd) 210.0 cm²
• Maximum Mechanical Limit (Xlim) 7.1 mm

MOUNTING Information

• Recommended Enclosure Volume Sealed 5-7 liters / 0.18-0.25 cu. ft. Vented 16.7-25.5 liters / 0.59-0.90 cu. ft.
• Overall Diameter 8.24", 209.2 mm
• Baffle Hole Diameter 7.13", 181 mm
• Front Sealing Gasket fitted as standard
• Rear Sealing Gasket fitted as standard
• Mounting Holes Diameter 0.22", 5.5 mm
• Mounting Holes B.C.D. 7.75", 196.9 mm
• Depth 3.25", 83 mm

MATERIALS of Construction

• Copper voice coil
• Polyimide former
• Ferrite magnet
• Vented core
• Pressed steel basket
• Paper Cone
• Cloth cone edge
• Solid composition paper dust cap
