Eighteensound 12ND610 Lautsprecher
Eighteensound 12ND610 Lautsprecher
Eighteensound 12ND610 Lautsprecher

Eighteensound 12ND610 Lautsprecher

Art.Nr.:
279
439,00 EUR

inkl. 19% MwSt. zzgl. Versand

Beschreibung
Eighteensound 12ND610
12" Neodymium LF Driver

  • Nominal Diameter: 300 mm ( in)
  • Nominal Impedance: 8 Ω
  • Minimum Impedance: 4.2 Ω
  • Nominal Power Handling: 450 W
  • Continuous Power Handling: 700 W
  • Sensitivity: 102.0 dB

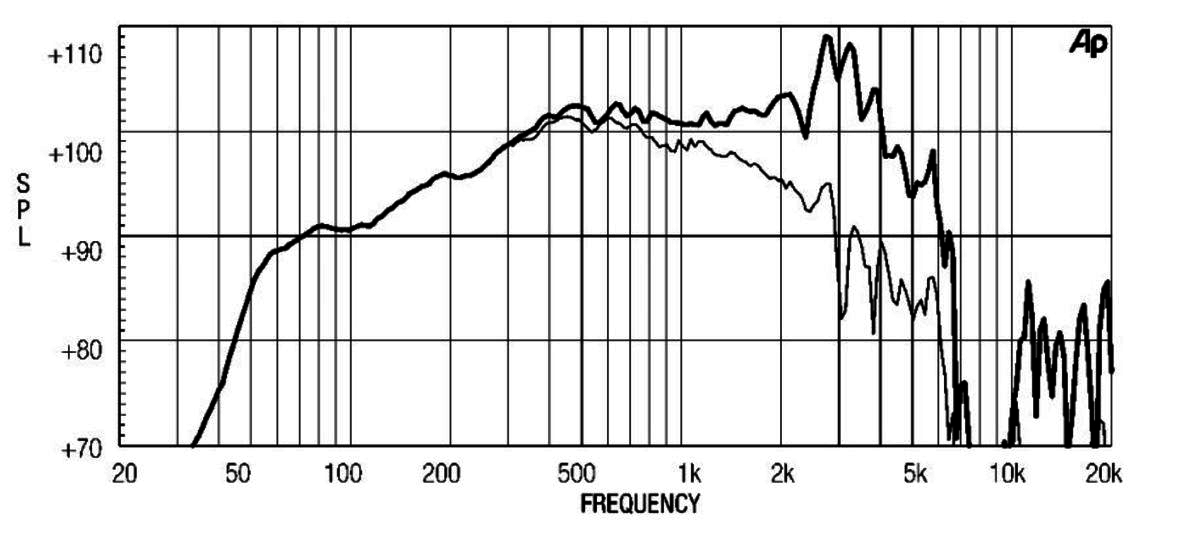

  • Frequency Range: 80 - 5500 Hz
  • Voice Coil Diameter: 75 mm (3.0 in)
  • Winding Material: aluminum



Parameter
  • Resonance Frequency: 46 Hz
  • Re: 5.9 Ω
  • Qe: s0.15
  • Qms: 4.3
  • Qts: 0.14
  • Vas: 94.4 dm3 (3.33 ft3)
  • Sd: 531.0 cm2 (82.31 in2)
  • Xmax: 3.5 mm
  • Mms: 49.0 g
  • Bl: 24.0 Txm
  • Le: 1.17 mH
  • EBP: 306 Hz




 Technische Daten von 18Sound
