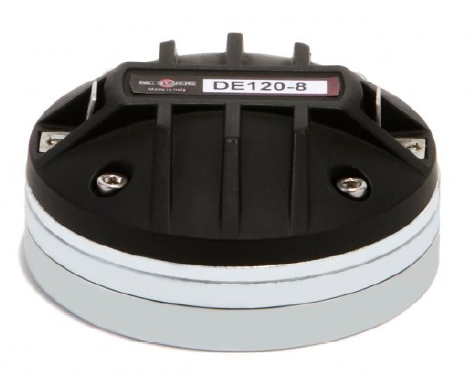

B&C DE120 - 1" Hochtontreiber
B&C DE120 - 1" Hochtontreiber
Specifications
Mounting and Shipping info
Technische Daten
Specifications
- Throat Diameter: 25 mm (1 in)
- Nominal Impedance: 8 ohm
- Minimum Impedance: 8 ohm
- Nominal Power Handling (AES): 20 W
- Continuous Power Handling: 40 W
- Sensitivity (1W/1m): 106 dB
- Frequency Range: 1.5 - 18 kHz
- Recommended Crossover: 2 kHz
- Voice Coil Diameter: 36 mm (1.40 in)
- Winding Material: Aluminium
- Inductance: 0.14 mH
- Diaphragm material: Mylar
- Flux Density: 1.9 T
- Magnet Material: Neodymium Ring
Mounting and Shipping info
- Overall Diameter: 71 mm (2.8 in)
- Depth: 34 mm (1.34 in)
- Net Weight: 0.45 kg (1 lb)
