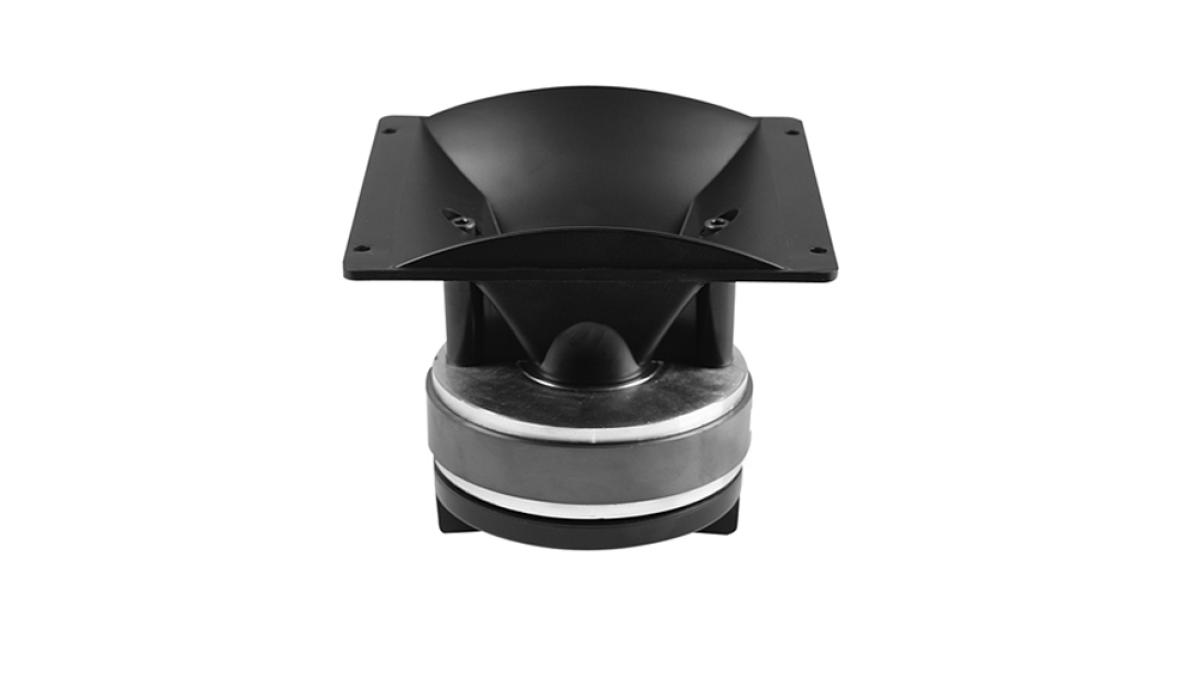

Beyma SMC8060/N - 1 Zoll Hochtontreiber
Hochtöner
Rated impedance: 8 ohms
Minimum impedance: 5,2 ohms.@ 4 kHz
D.C. Resistance: 5,6 ohms
Power capacity: 50w AES above 1,5 KHz
Program Power: 100 w above 1,5 KHz
Sensitivity: 107 dB 1w @ 1m
Frequency range: 0,8 - 18 kHz
Recommended crossover: 1,5 KHz or higher(12dB/ oct. min)
Dispersion H xV: 80 x 60Voice coil diameter: 44.4 mm. 2,64 in.
Magnetic assembly weight: 1,2 kg. 0.85 Ib.
Flux density: 1,65 T
BL Factor: 8,5 N/A
