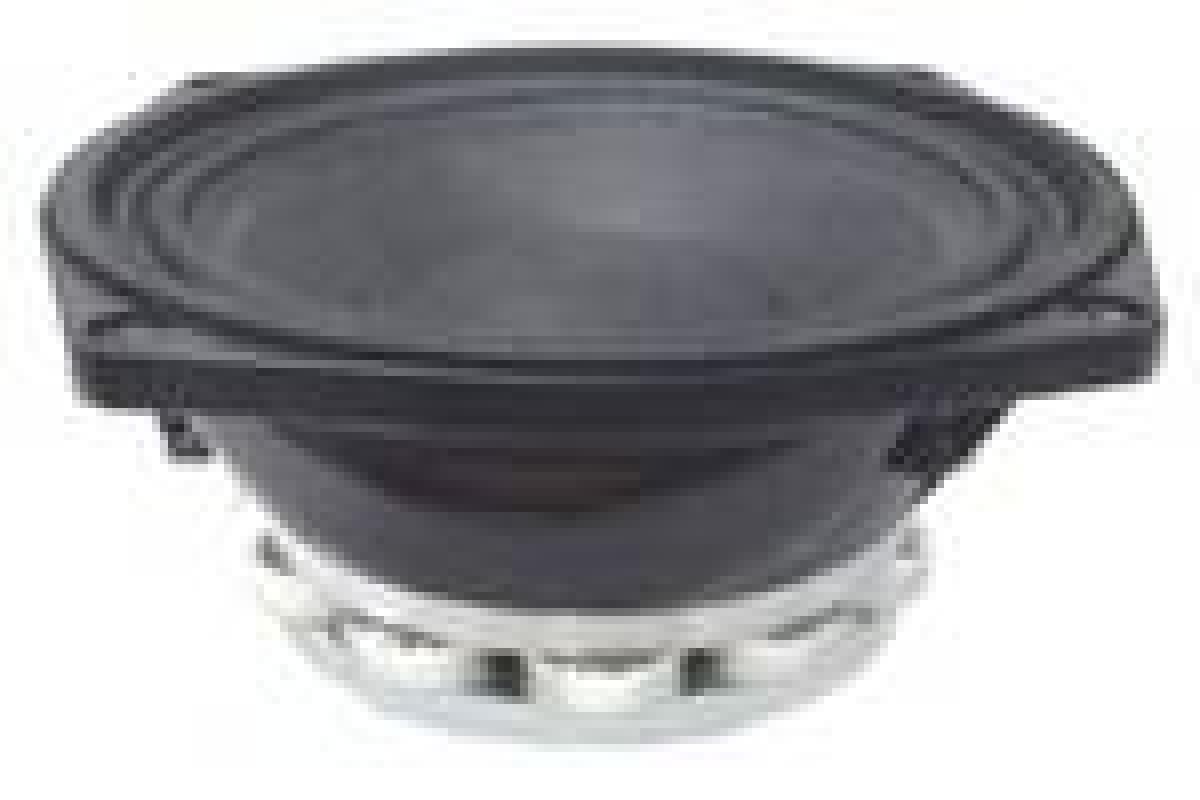

Beyma 6G40ND
6,5" Bass/ Lautsprecher
Nominal diameter: 165 mm. 6,5 in.
Rated impedance:8 ohms.
Minimum impedance: 7 ohms.
Power capacity: 170 w AES
Program power: 340 w
Sensitivity: 95 dB 2.83v @ 1m @ 2pi
Frequency range: 70 - 9000 Hz
Recom. enclosure vol.: 10 / 30 l 0.35 / 1,06 ft.3
Voice coil diameter: 51,7 mm. 2 in.
Magnetic assembly weight: 1,5 kg. 3,3 lb.
BL Factor: 11 N / A
Moving mass: 0.012 kg
Voice coil length: 9 mm
Air gap height: 7 mm
X Damage (peak to peak): 20 mm
