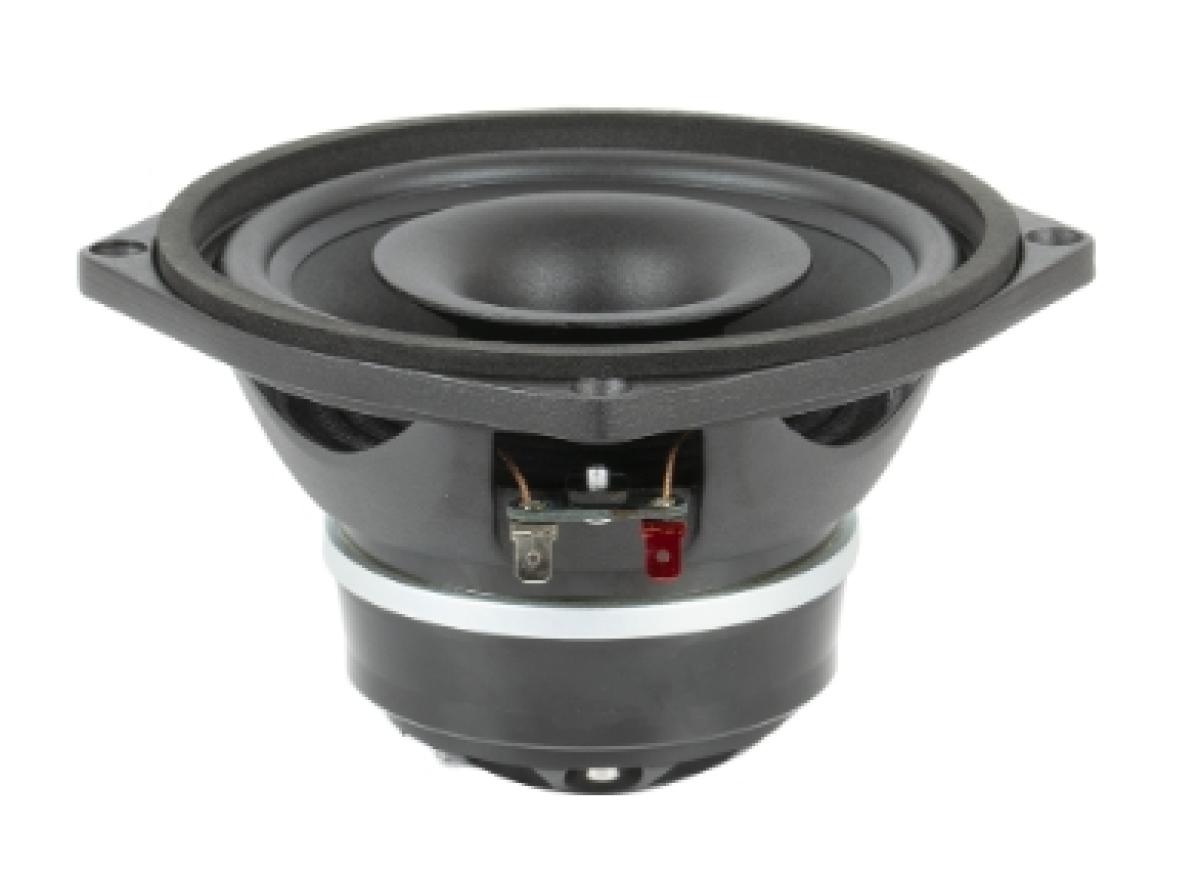

Beyma 6CX200ND
6,5" Caxial/ Lautsprecher
Nominal diameter: 165 mm. 6,5 in.
Rated impedance:8 ohms.
Minimum impedance: 5,9 ohms.
Power capacity:(LF/HF) 200w/40w AES
Program power:(LF/HF) 400w/80W
Sensitivity: 92 dB/102 dB 2.83v @ 1m @ 2pi
Frequency range: 60 - 20000 Hz
Recom. enclosure vol.: 6 / 20 l 0.21 / 071 ft.3
Voice coil diameter: 51,7 mm. 2 in.
Magnetic assembly weight: 1,2 kg. 2,64 lb.
BL Factor: 10,1 N / A
Moving mass: 0.017 kg
Voice coil length: 14 mm
Air gap height: 9 mm
X Damage (peak to peak): 18 mm
