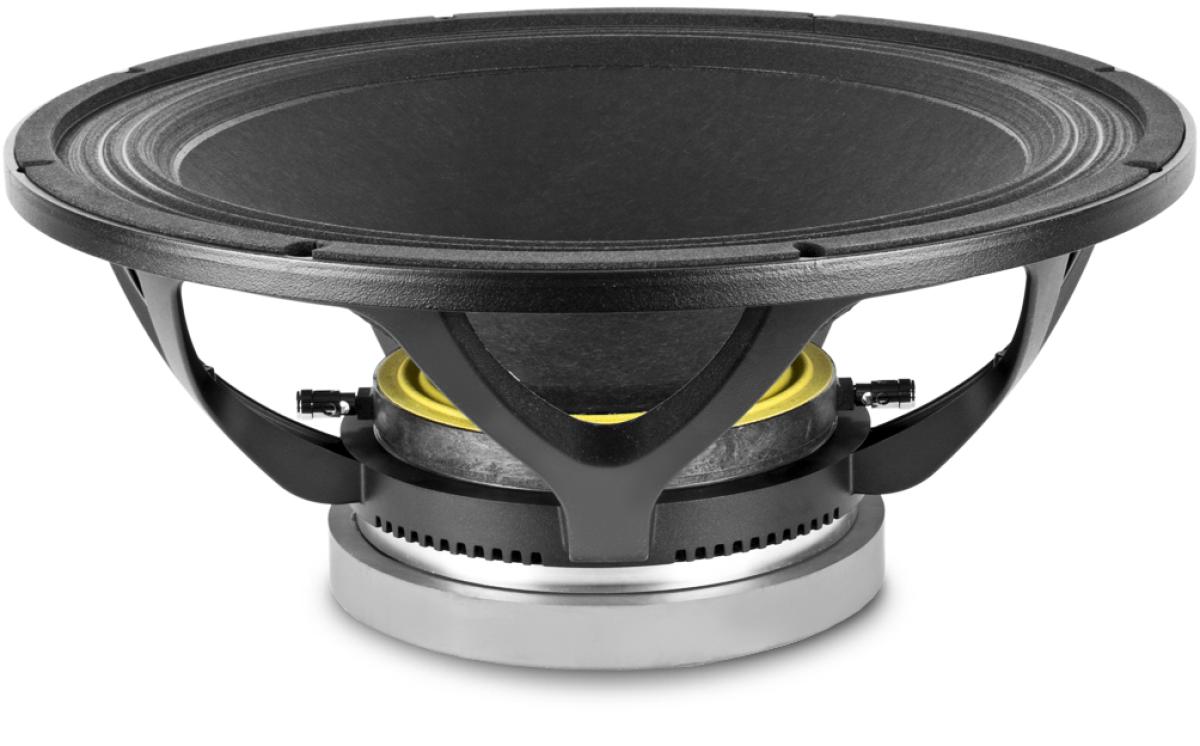

Beyma 18G550/S - 18" Subwoofer
Beyma 18G550/S - 18" Subwoofer mit 4.5 Zoll Spule
Datenblatt
- Nominal diameter: 462 mm. 18 in
- Rated impedance:8 ohms.
- Minimum impedance: 6.8 ohms
- Power capacity: 900 w AES
- Program power: 1800 w
- Sensitivity: 97 dB 2.83v @ 1m @ 2pi
- Frequency range: 25 - 1500 Hz
- Recom. enclosure vol.: 80 / 200 l
- Voice coil diameter: 114 mm. 4.5 in
- Magnetic assembly weight: 10 kg
- BL Factor: 23.4 N / A
- Moving mass: 0.190 kg
- Voice coil length: 25 mm
- Air gap height :11 mm
- X Damage (peak to peak): 40 mm
