Beyma 12MI100 - 12 Zoll Lautsprecher

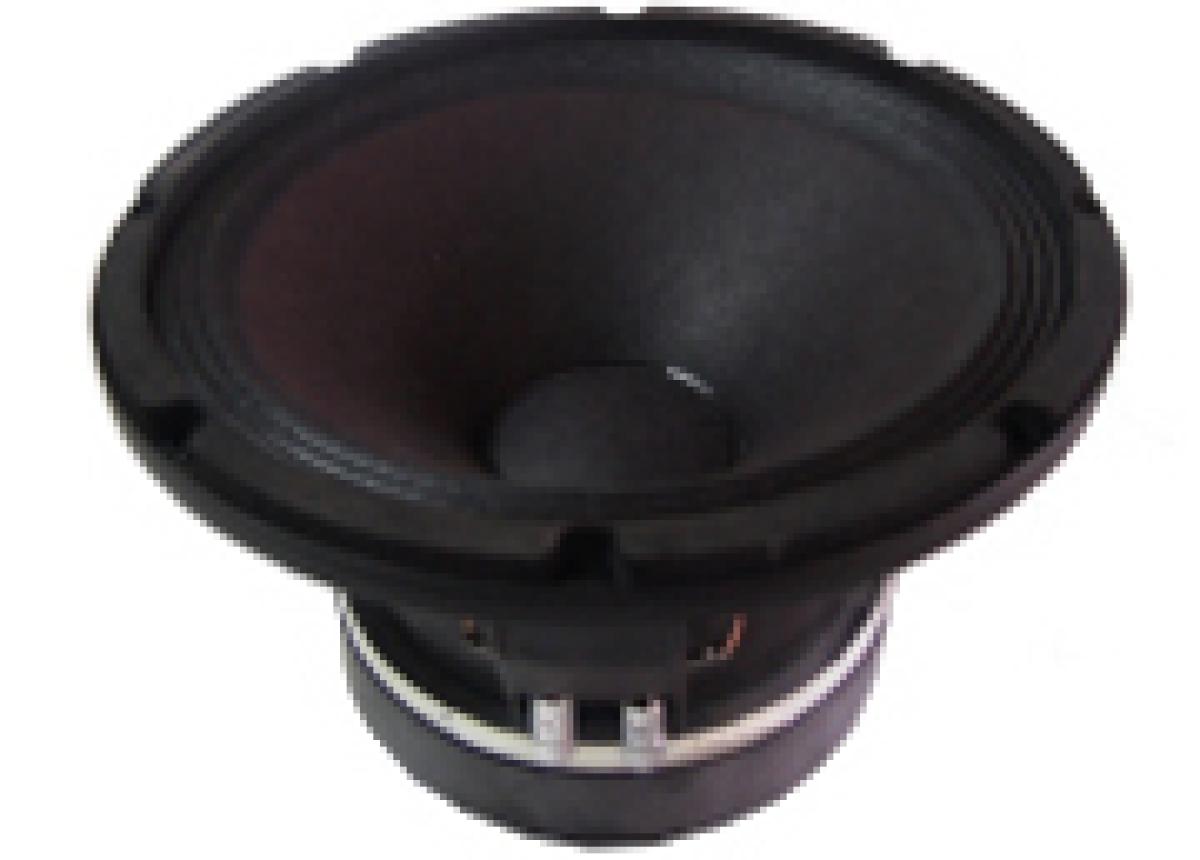

Beyma 12MI100
12" Bass/Mittelton Lautsprecher
Datenblatt
12" Bass/Mittelton Lautsprecher
- Nominal diameter: 300 mm. 12 in.
- Rated impedance: 8 ohms
- Minimum impedance: 8 ohms
- Power capacity: 450 w AES
- Program power: 900 w
- Sensitivity: 100 dB 2.83v @ 1m @ 2pi
- Frequency range: 40 - 4000 Hz
- Recom. enclosure vol.: 20 / 50 l 0.7 / 1.75 ft.3
- Voice coil diameter: 77 mm. 3 in.
- Magnetic assembly weight: 6.5 kg. 14.2 lb.
- BL Factor: 21.6 N / A
- Moving mass: 0.047 kg
- Voice coil length: 13.5 mm
- Air gap height: 9.5 mm
- X Damage (peak to peak): 24 mm
Datenblatt
