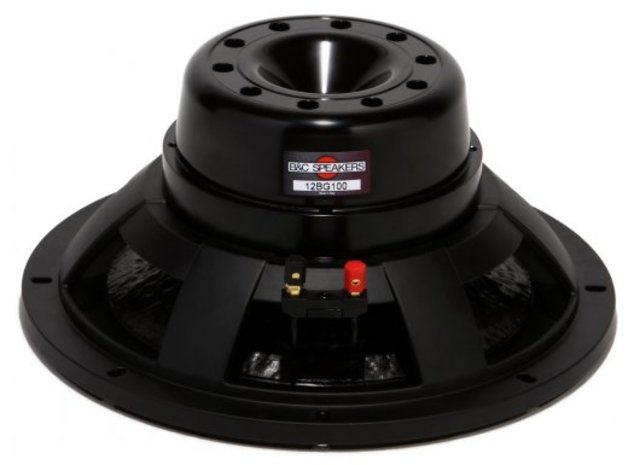

B&C 12BG100 - 12 Zoll Neodym Basslautsprecher
- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 40 - 1000 Hz response
- 93 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications:
Nominal diameter: 320 mm (12.0 in)
Nominal impedance: 8 Ω
Minimum impedance: 5.8 Ω
Nominal power handling: 1000 W
Continuous power handling: 2000 W
Sensitivity (1W/1m): 93.0 dB
Frequency range: 40 - 1000 Hz
Voice coil diameter: 100 mm (4.0 in)
Winding material: Copper
Former material: Glass Fibre
Winding depth: 27 mm (1.05 in) Magnetic gap depth: 11 mm (0.43 in) Flux density: 1.15 T
Parameters:
- Fs: 39 Hz
- Re: 5.1 Ω
- Qes: 0.35
- Qms: 6.8
- Qts: 0.33
- Vas: 41.0 dm3 (1.45 ft3)
- Sd: 522.0 cm2 (80.9 in2)
- η₀: 0.7 %
- Xmax: 10.5 mm
- Xvar: 14.0 mm
- Mms: 152 g
- Bl: 23.0 Txm
- Le: 1.6 mH
- EBP: 111 Hz
