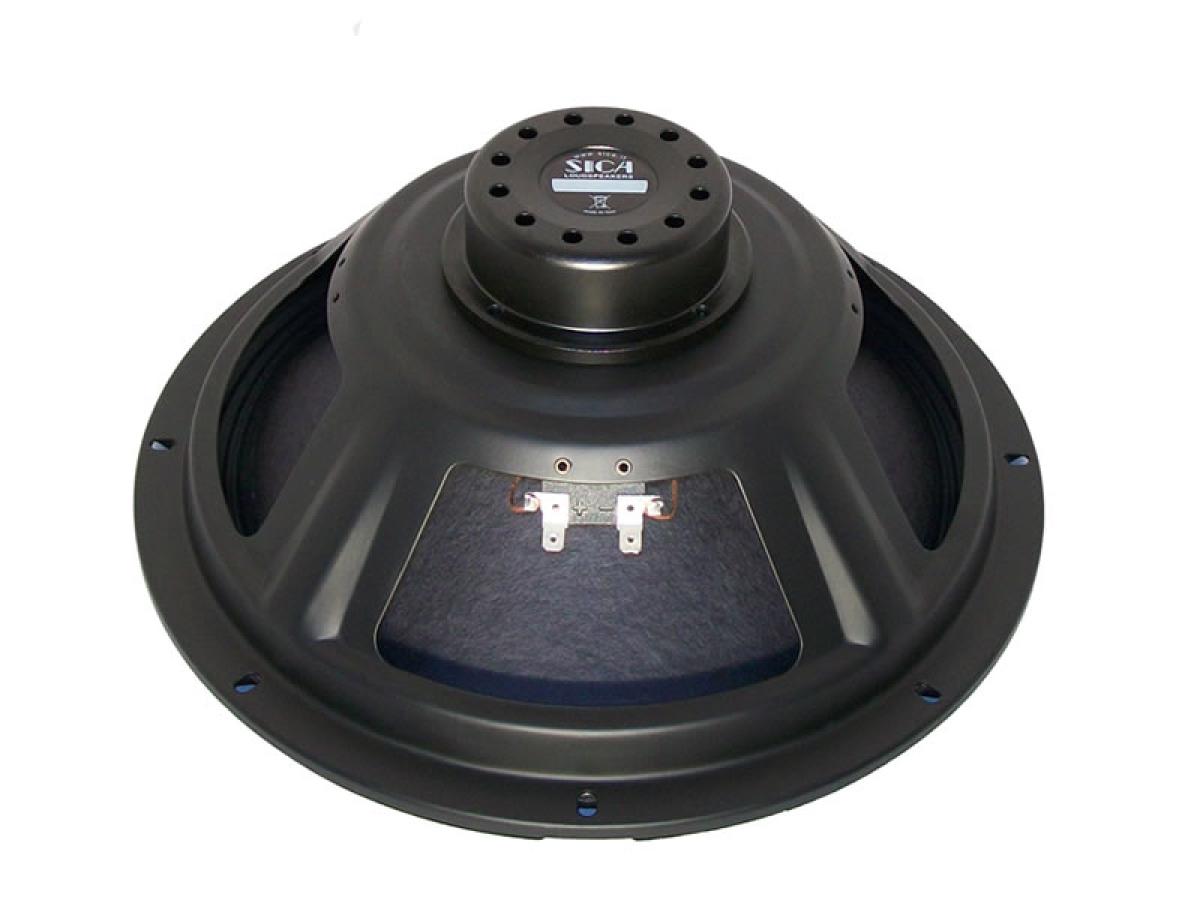

Sica 12"- 500W Bassmid 12 BP 2,5 SL- 8 Ohm (Z007811)
ELECTRICAL CHARACTERISTICS
Nominal Impedance........................... 8 Ω
Musical Power ................................. 500 W
Rated Power* .................................. 250 W
Sensitivity @ 1 W, 1 m ....................... 97.1 dB
GENERAL CHARACTERISTICS
Nominal Overall Diameter ................. 318 mm
Nominal Voice Coil Diameter .............. 65 mm
Magnet Weight ............................... 220 g
Flux Density................................... 1.15 T
Weight ......................................... 2.30 Kg
THIELE-SMALL PARAMETERS
Voice Coil DC Resistance ........... RE 5.89 Ω
Resonance Frequency ............... fs 50.1 Hz
Mechanical Q Factor................. QMS 13.54
Electrical Q Factor................... QES 0.37
Total Q Factor........................ QTS 0.36
Mechanical Moving Mass ............ MMS 49.3 g
Mechanical Compliance............. CMS 205 μm/N
Force Factor .......................... B×l 15.61 Wb/m
Equivalent Acoustic Volume........ VAS 69.9 lt.
Maximum Linear Displacement .... XMAX +/-3.0 mm
Reference Efficiency ................ η0 2.25 %
Diaphragm Area ...................... SD 490.9 cm2
Losses Electrical Resistance........ RES 212.8 Ω
Voice Coil Inductance @ 1kHz ..... LE 0.75 mH
CONSTRUCTIVE CHARACTERISTICS
Magnet................................. Neodymium
Voice Coil Winding................... Copper
Voice Coil Former.................... Kapton
Cone ................................... Paper
Surround............................... Treated Cloth
Dust Dome ............................ Solid Paper
Basket ................................. Pressed Sheet Steel
